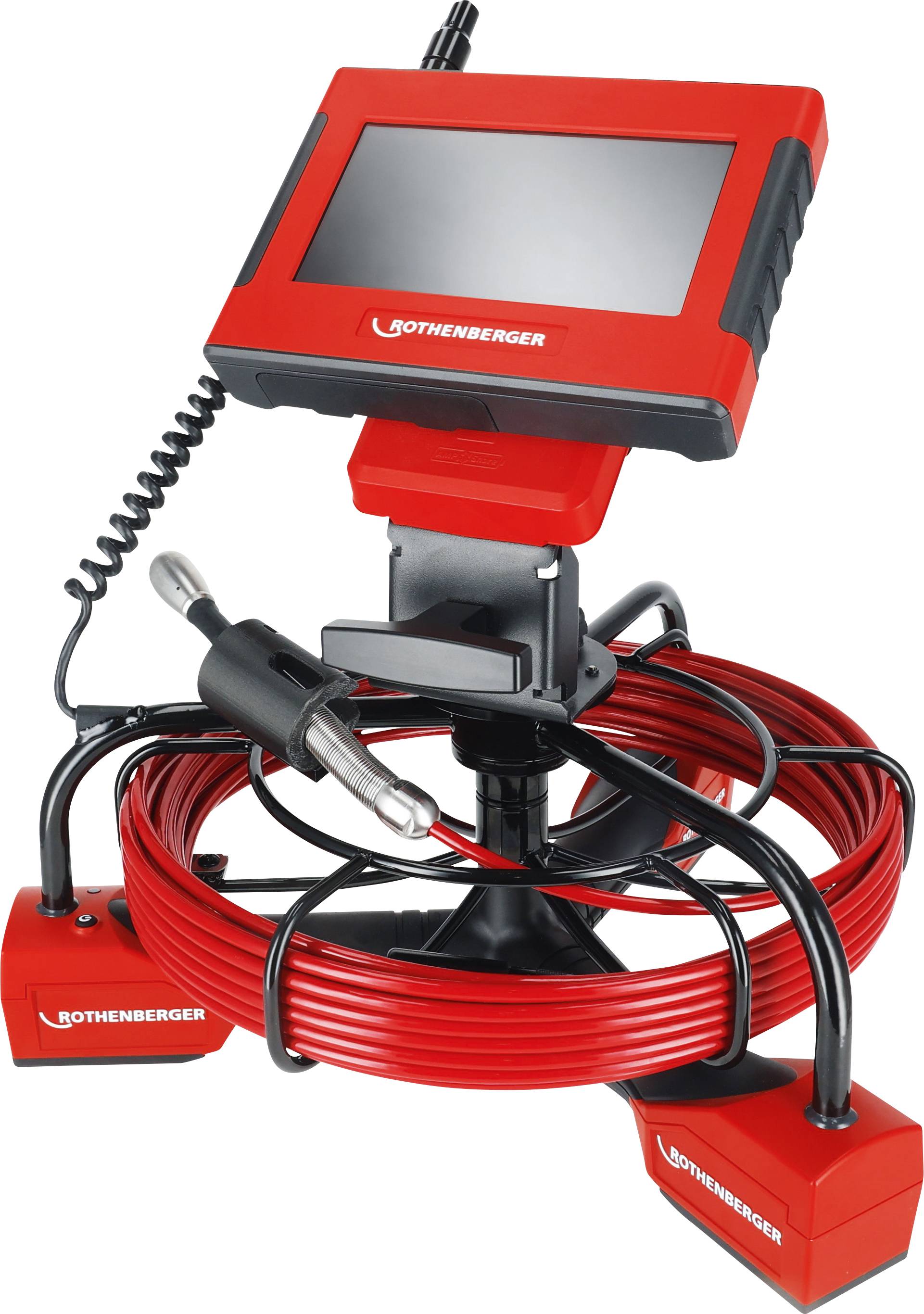

A red Rothenberger inspection camera features a coiled cable and a screen, used for inspecting areas that are hard to reach.

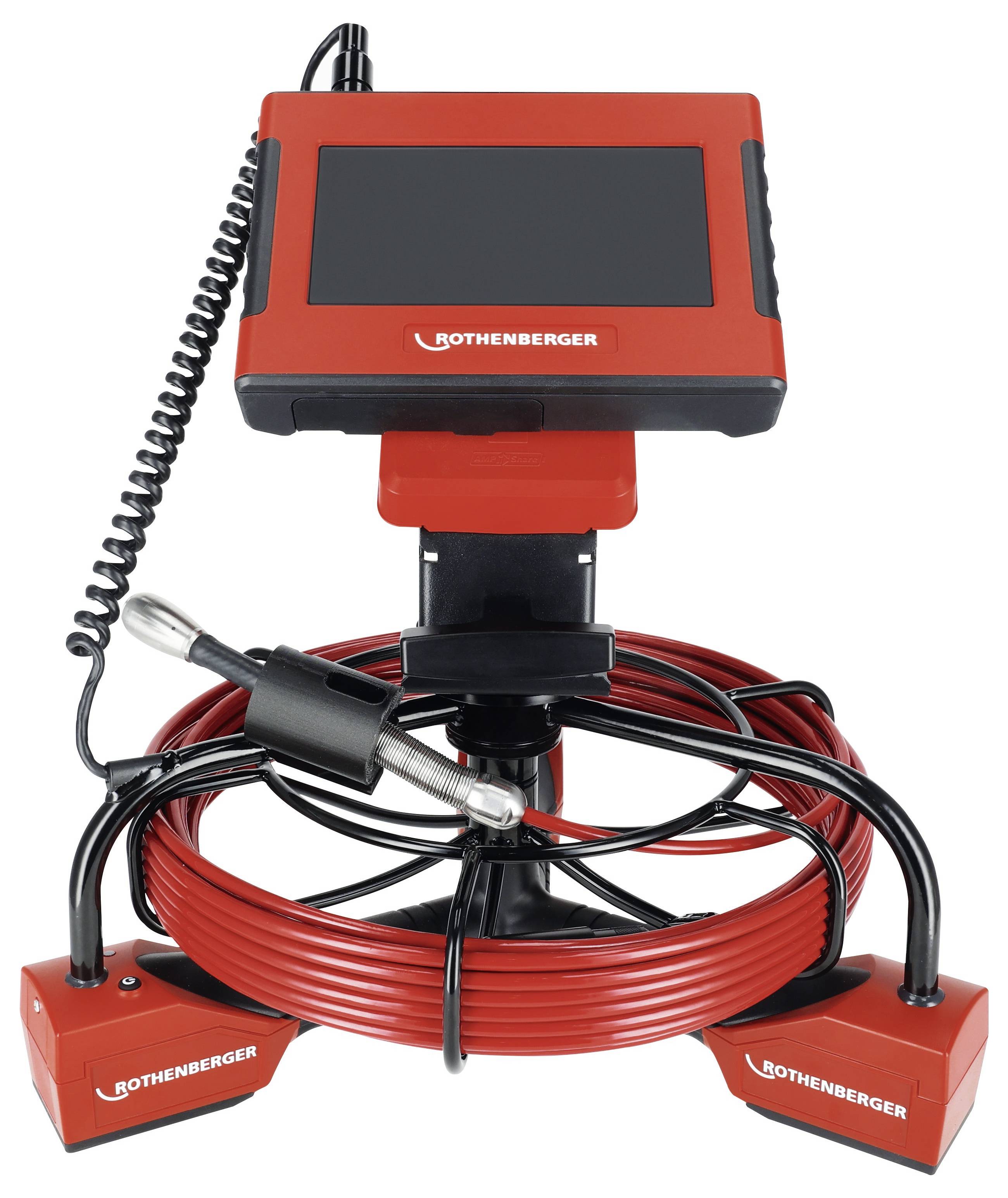

A red Rothenberger inspection camera with a coiled cable and probe, designed for plumbing or pipe inspections, displayed on a stand.

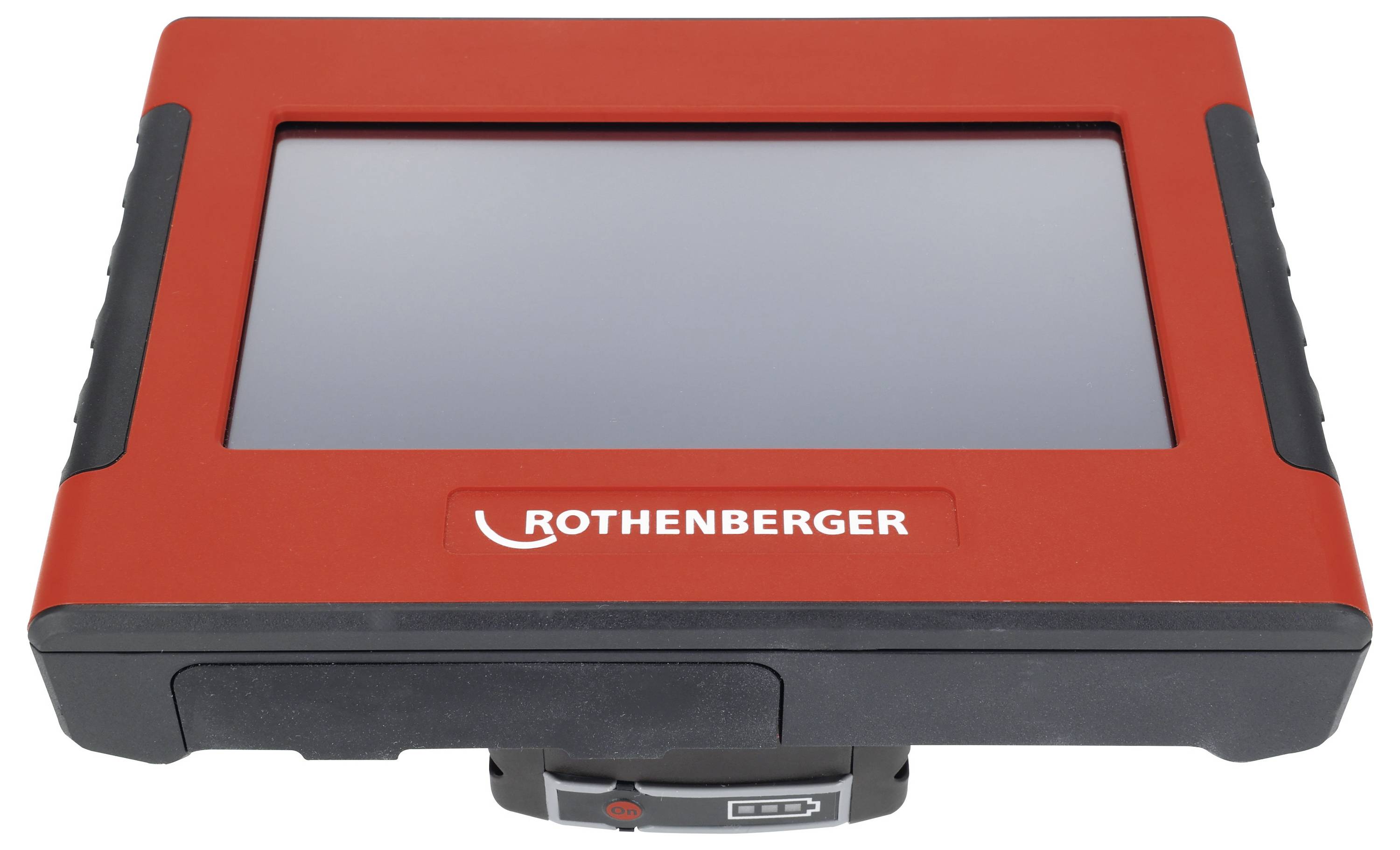

A red and black Rothenberger digital screen device, likely for technical diagnostics or inspections, with a visible USB port on the side.

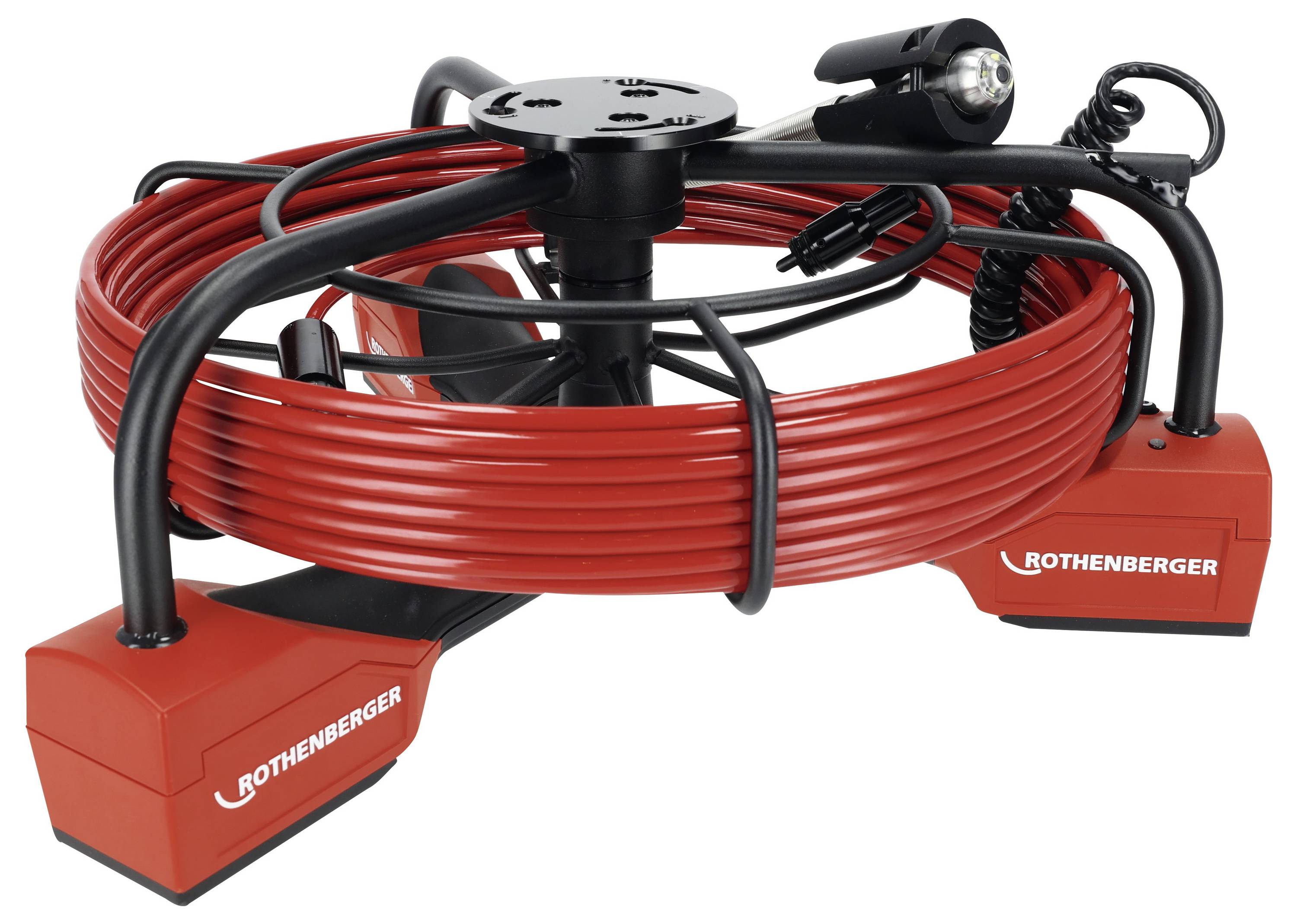

'A red Rothenberger cable reel with black frame, coiled cable, and attached connectors, used in plumbing or electrical work.'

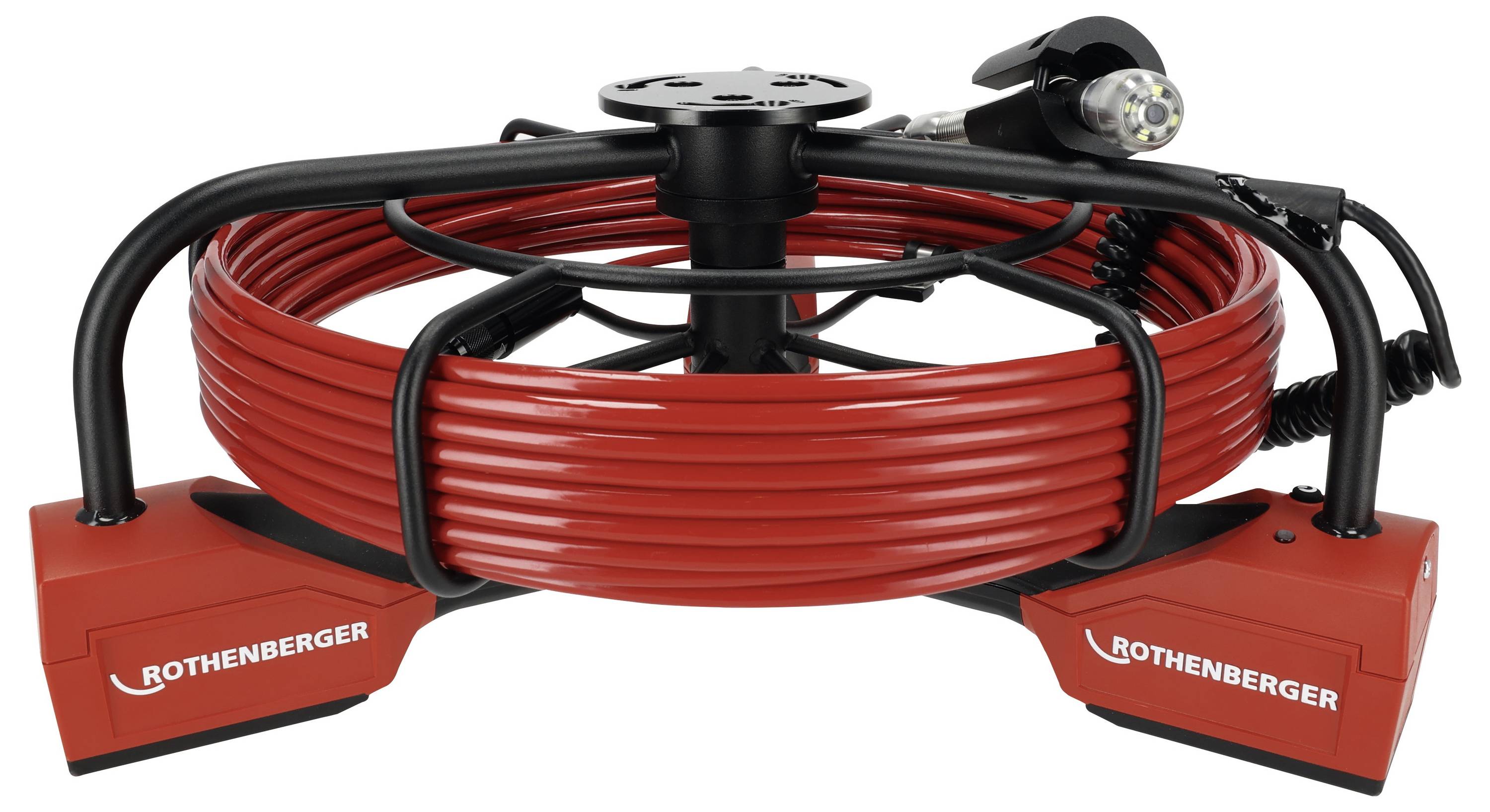

'A red pipe inspection camera coiled in a portable reel. The device features a built-in light and 'Rothenberger' branding on the casing.'

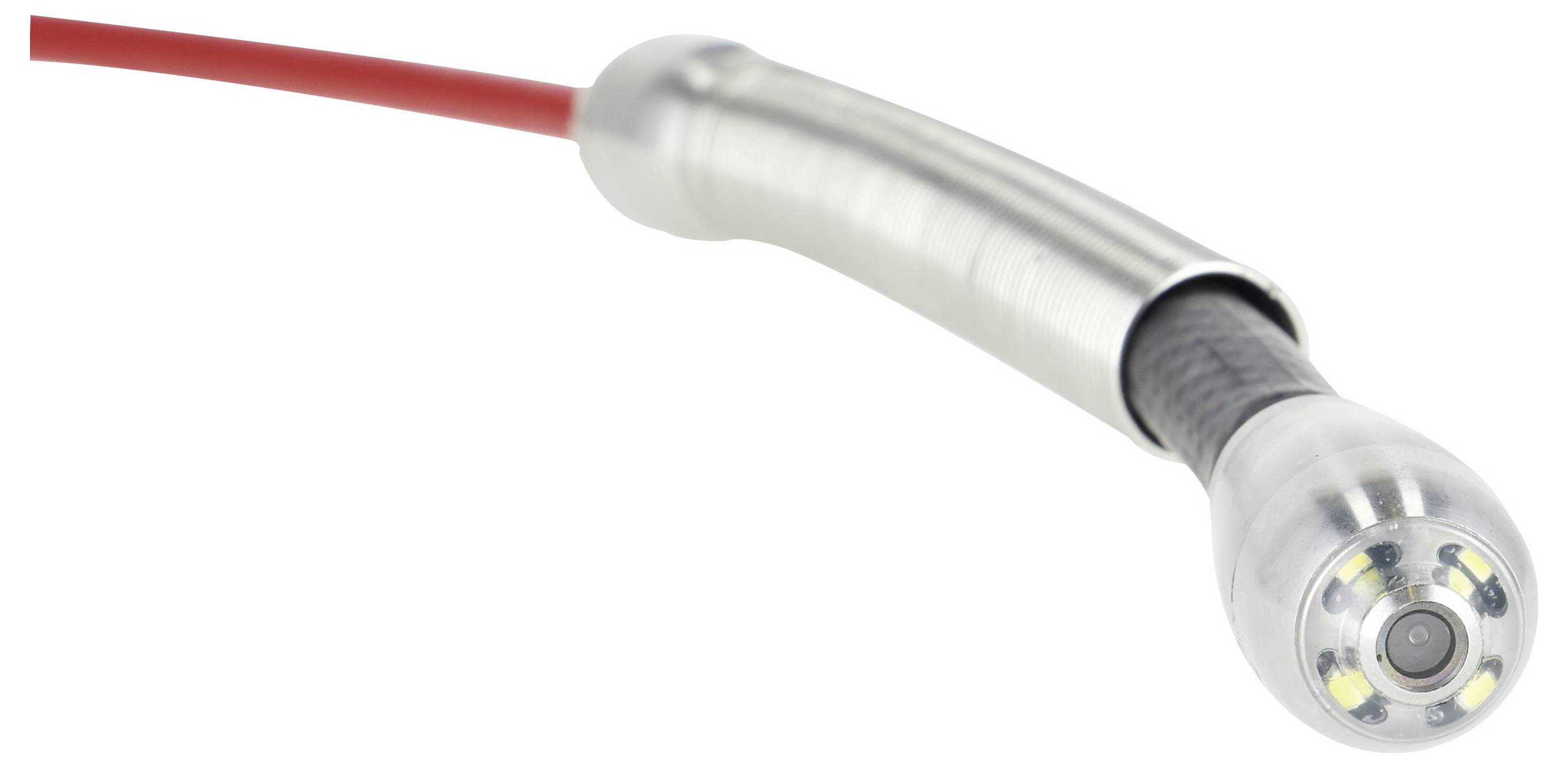

Inspection camera end with LED lights and lens, attached to a flexible, metallic snake tube for tight spaces.

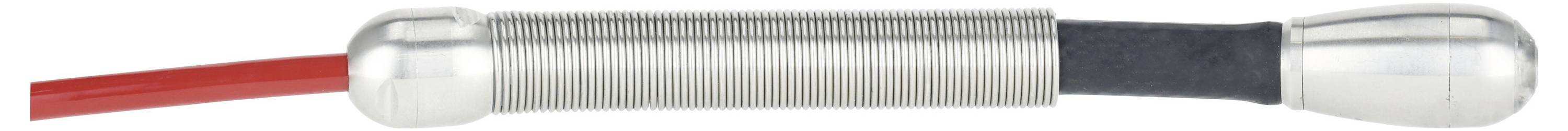

'Simpson Loop Americas 12 BIC' showing a metal cylinder with ribbed texture and a thick black middle section, attached to a red cable.

A red and black Rothenberger device with a large screen, likely for technical or industrial use. The device appears sturdy and portable.

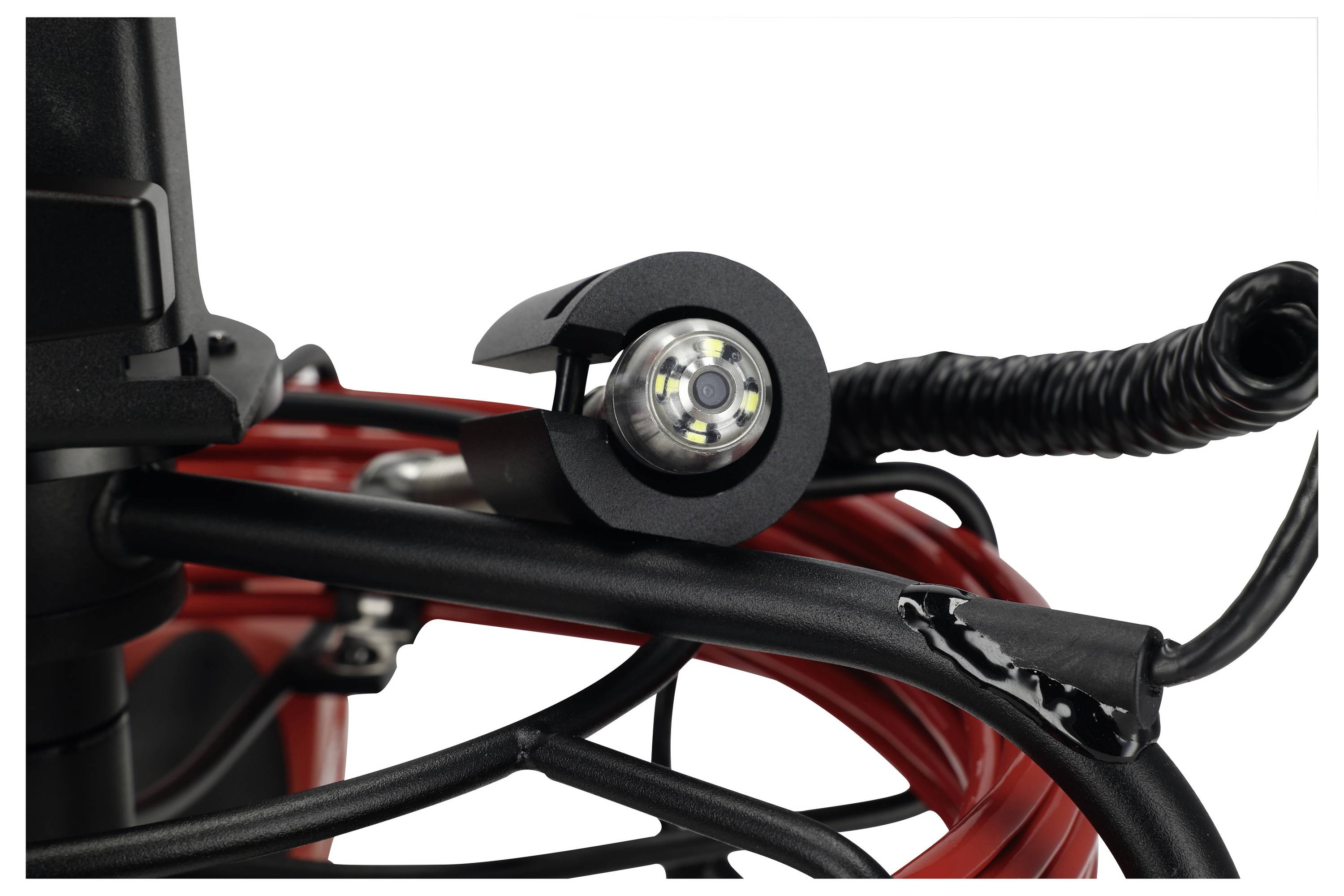

A close-up of a bicycle LED headlight attached to the handlebars, with red wiring coiled around the frame for power connection.

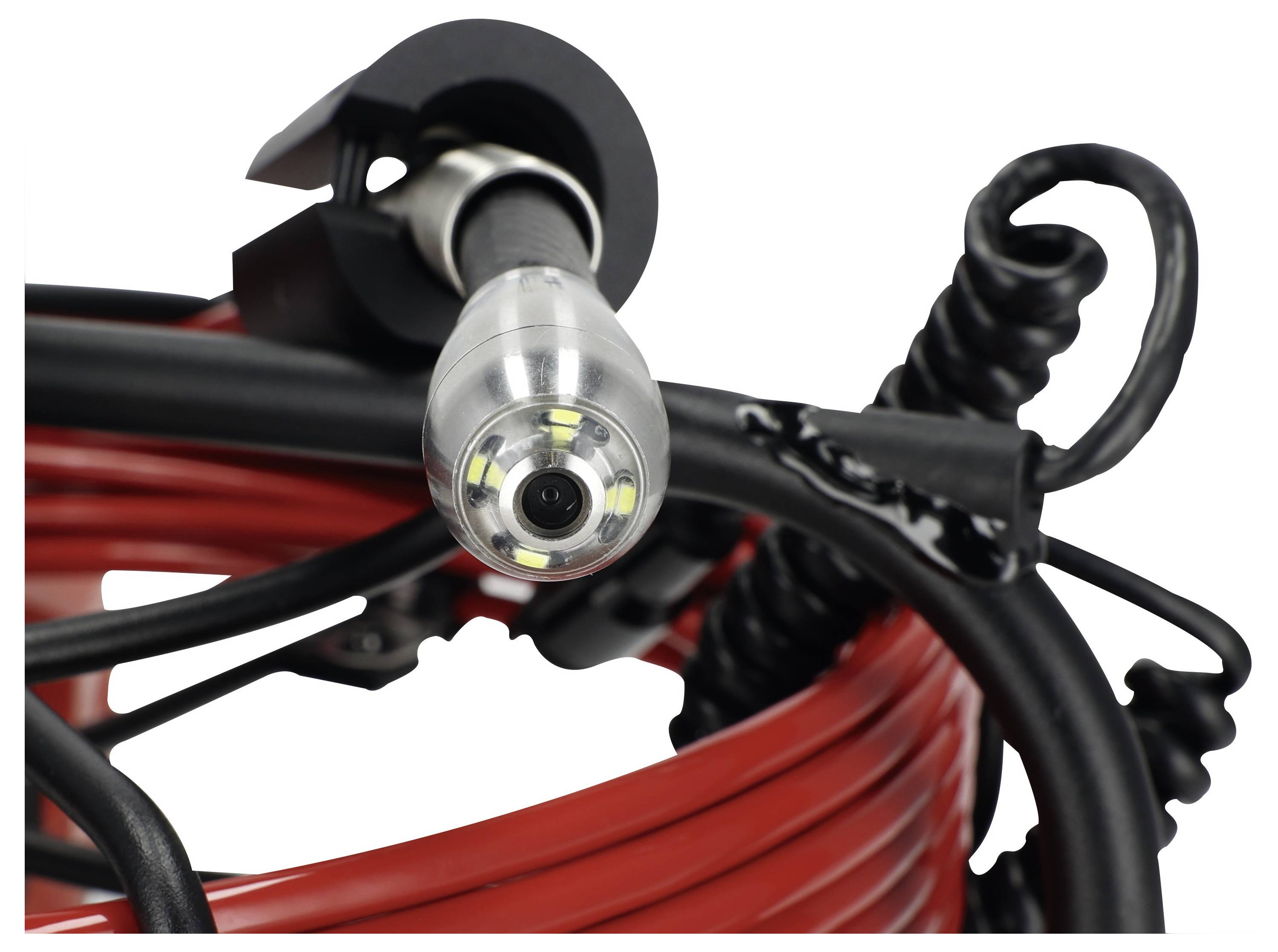

Coiled red cable with an attached round camera device, featuring LED lights, likely for inspection purposes.

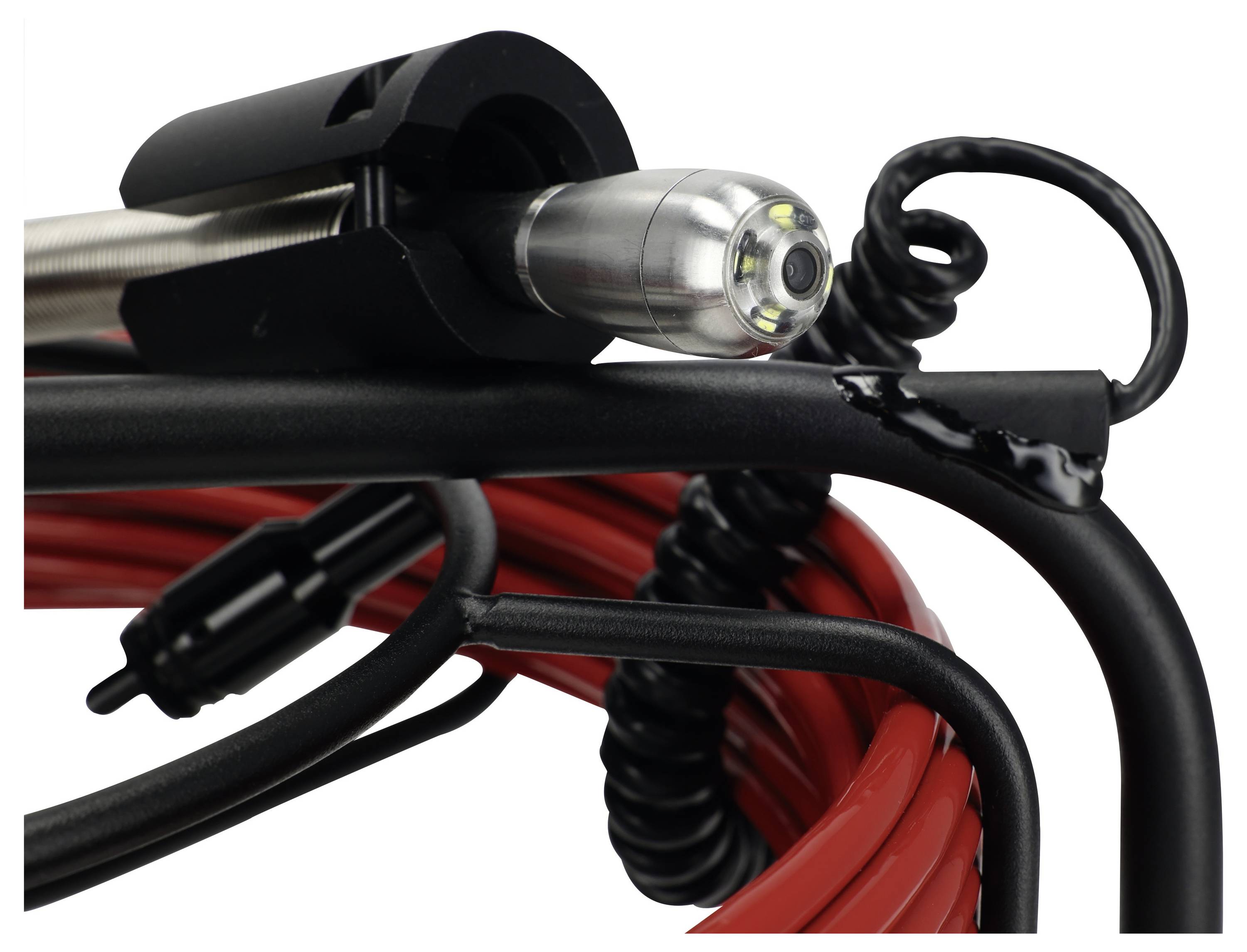

'A close-up of a drain inspection camera head attached to a coil of red and black cables, highlighting the camera's lens and lighting.'

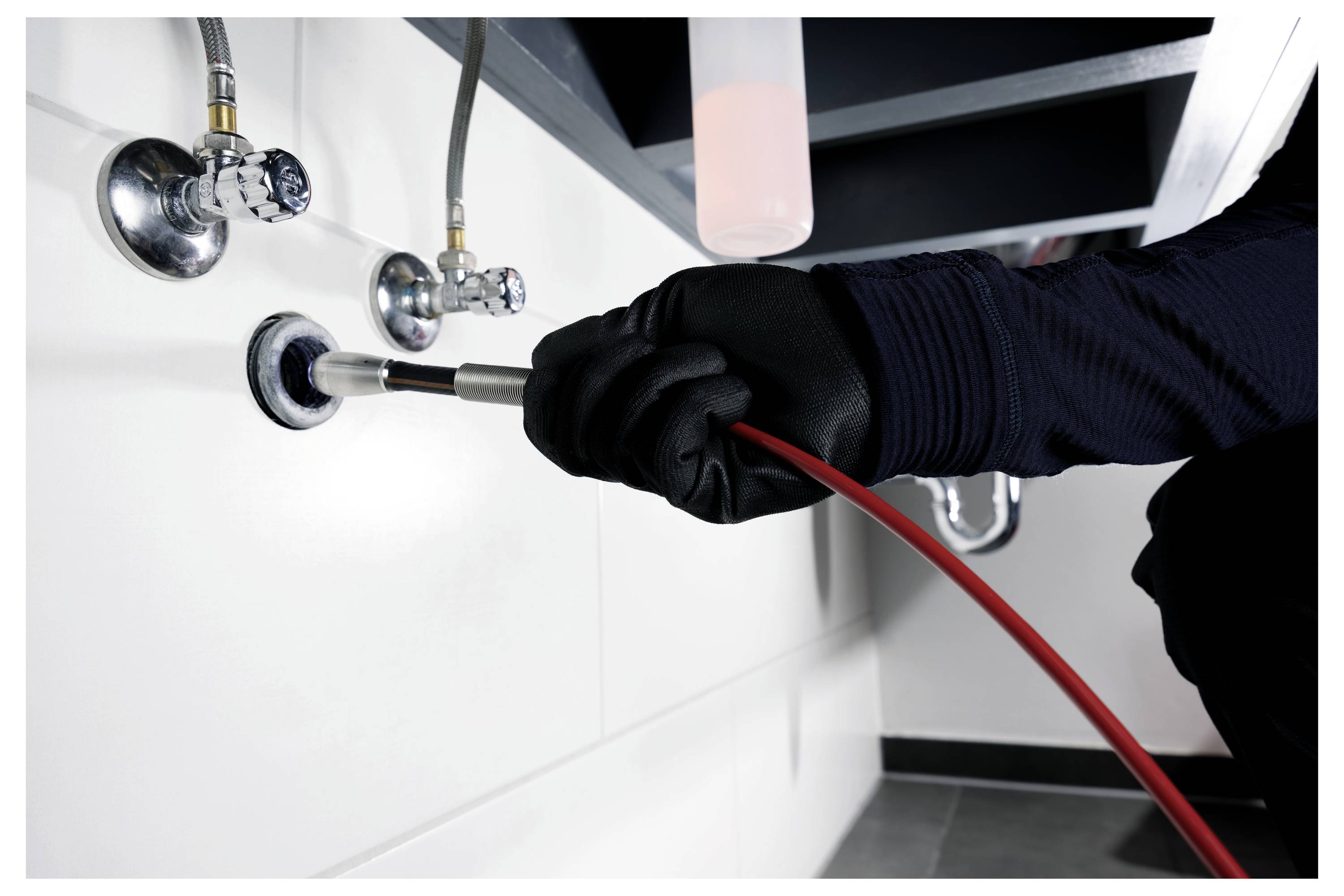

A person is using a plumbing tool to unclog a pipe under a sink, wearing black gloves. Two valves and a red hose are visible.

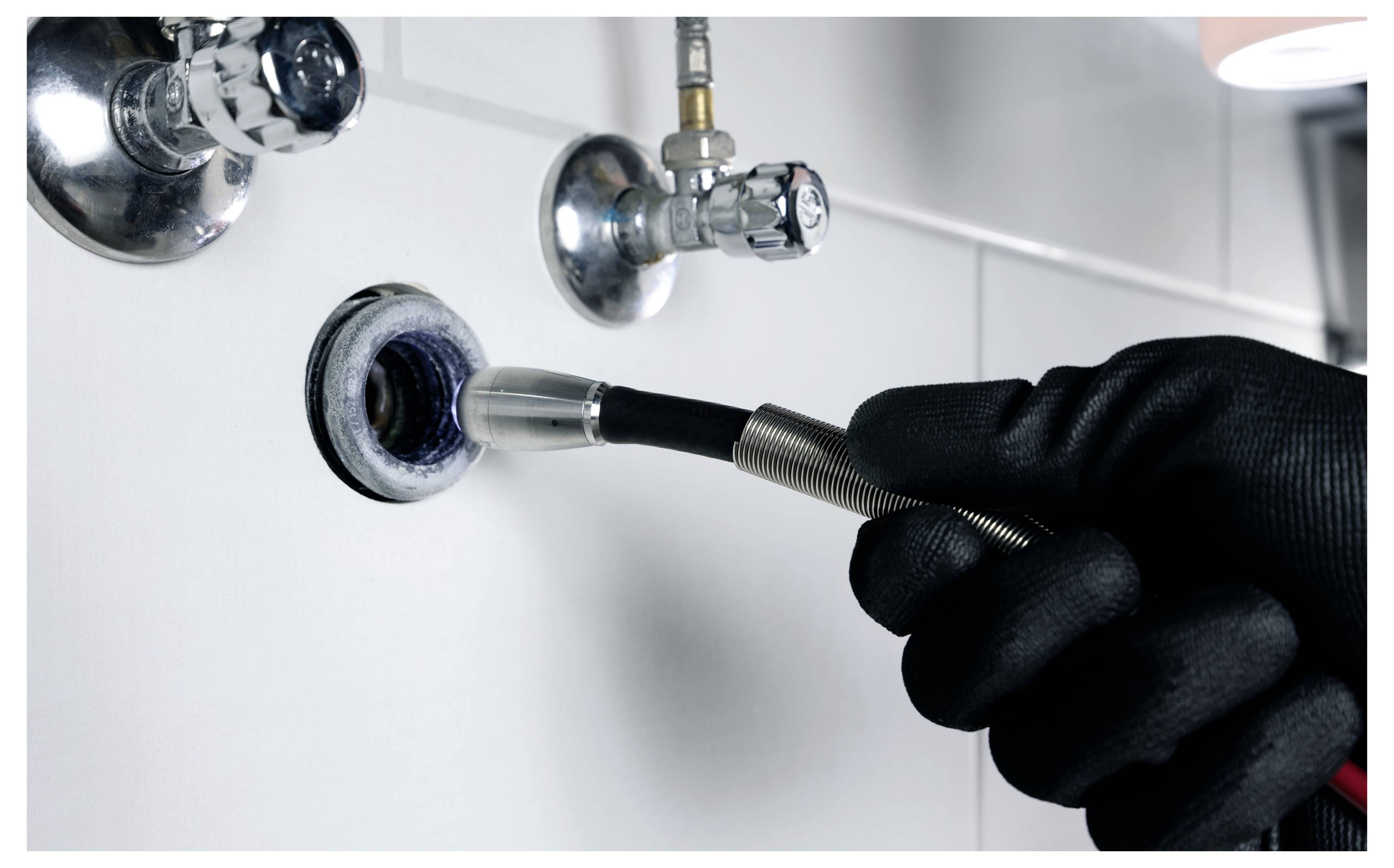

A person wearing black gloves inserts a flexible hose into a wall pipe for maintenance or repair. Two valve handles are visible above.

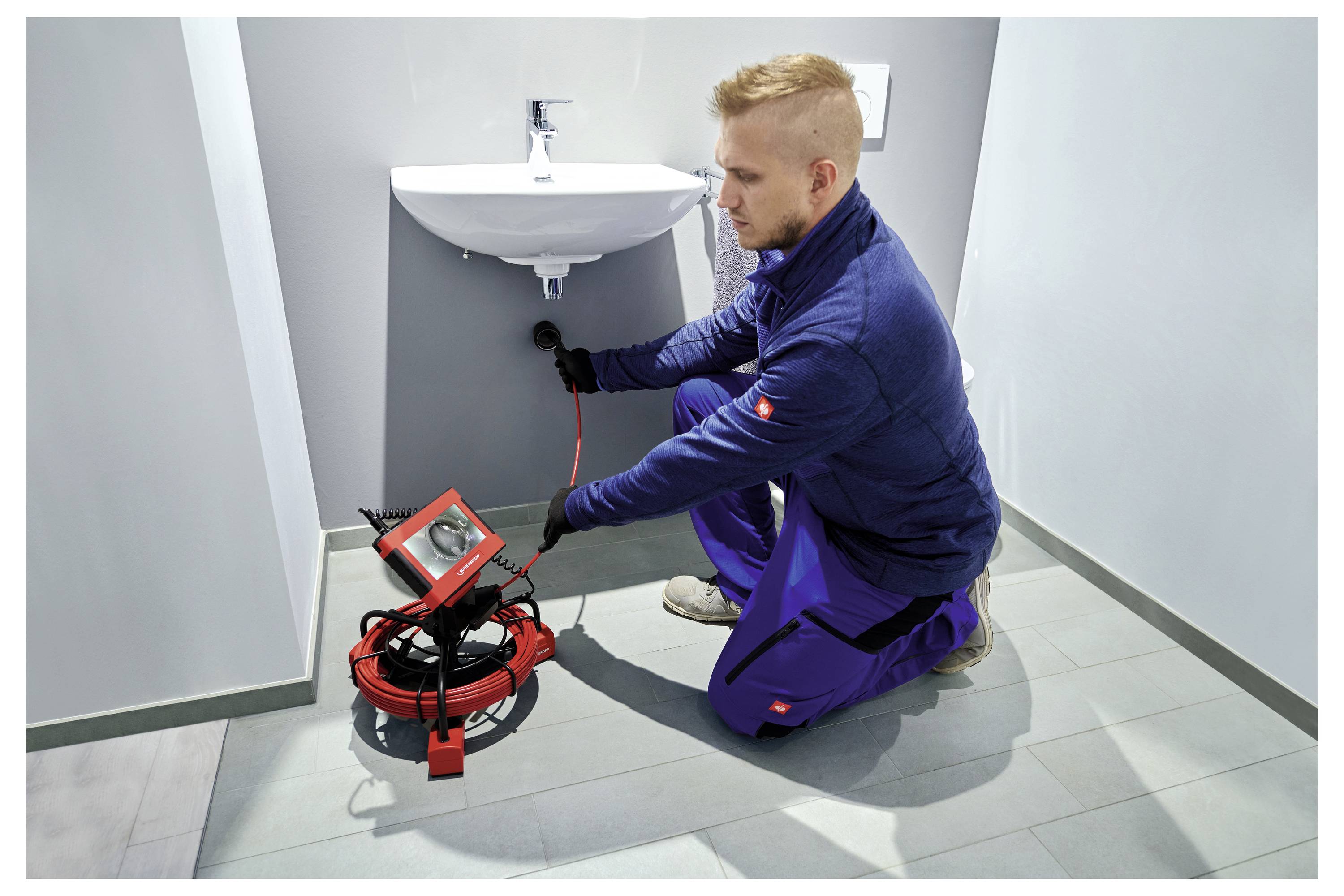

A plumber wearing a blue jacket kneels on a bathroom floor, using a red and black inspection camera to examine pipes under a white sink.

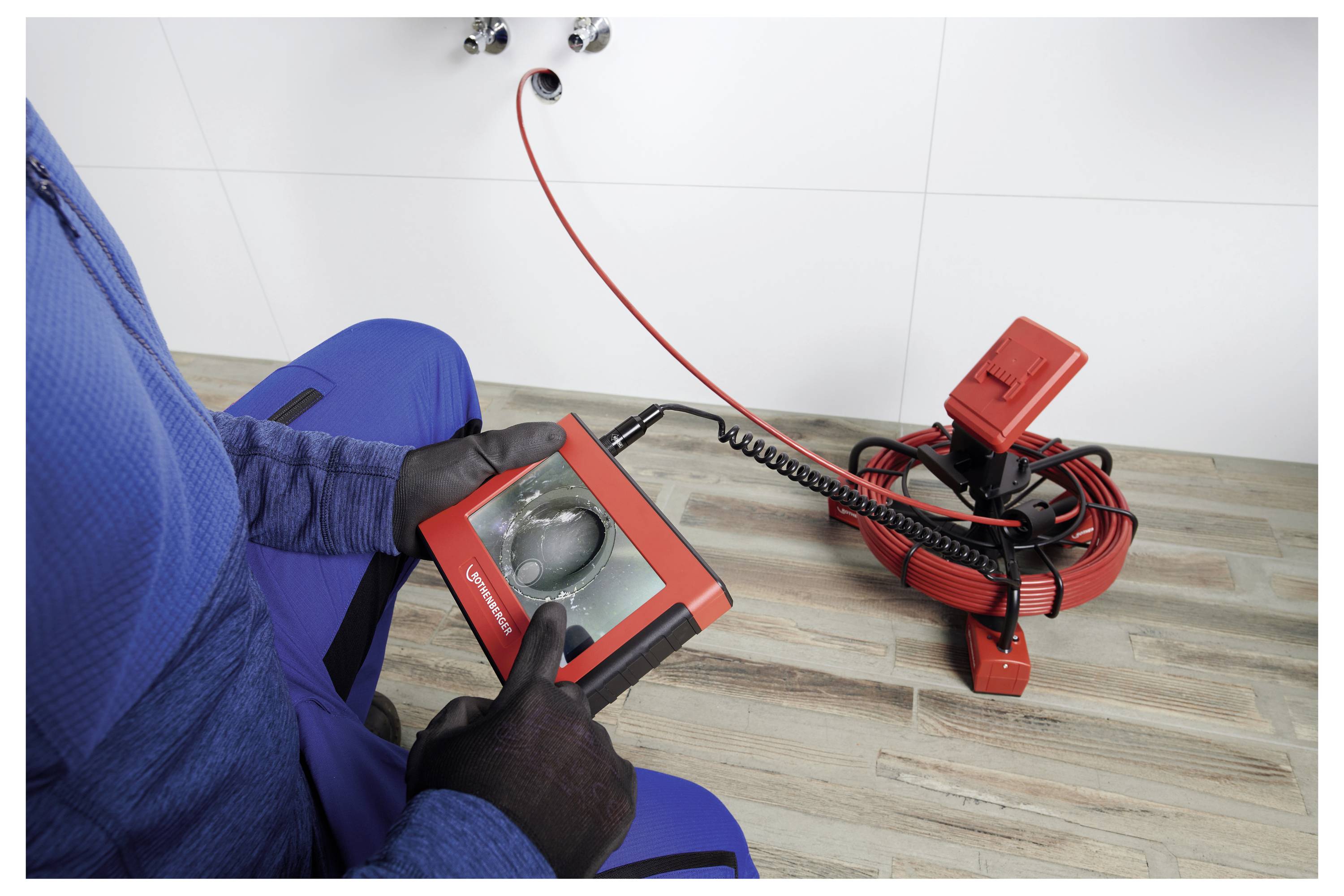

A person uses a sewer inspection camera, operating a red handheld device with a coiled cable, next to a wall with two holes.

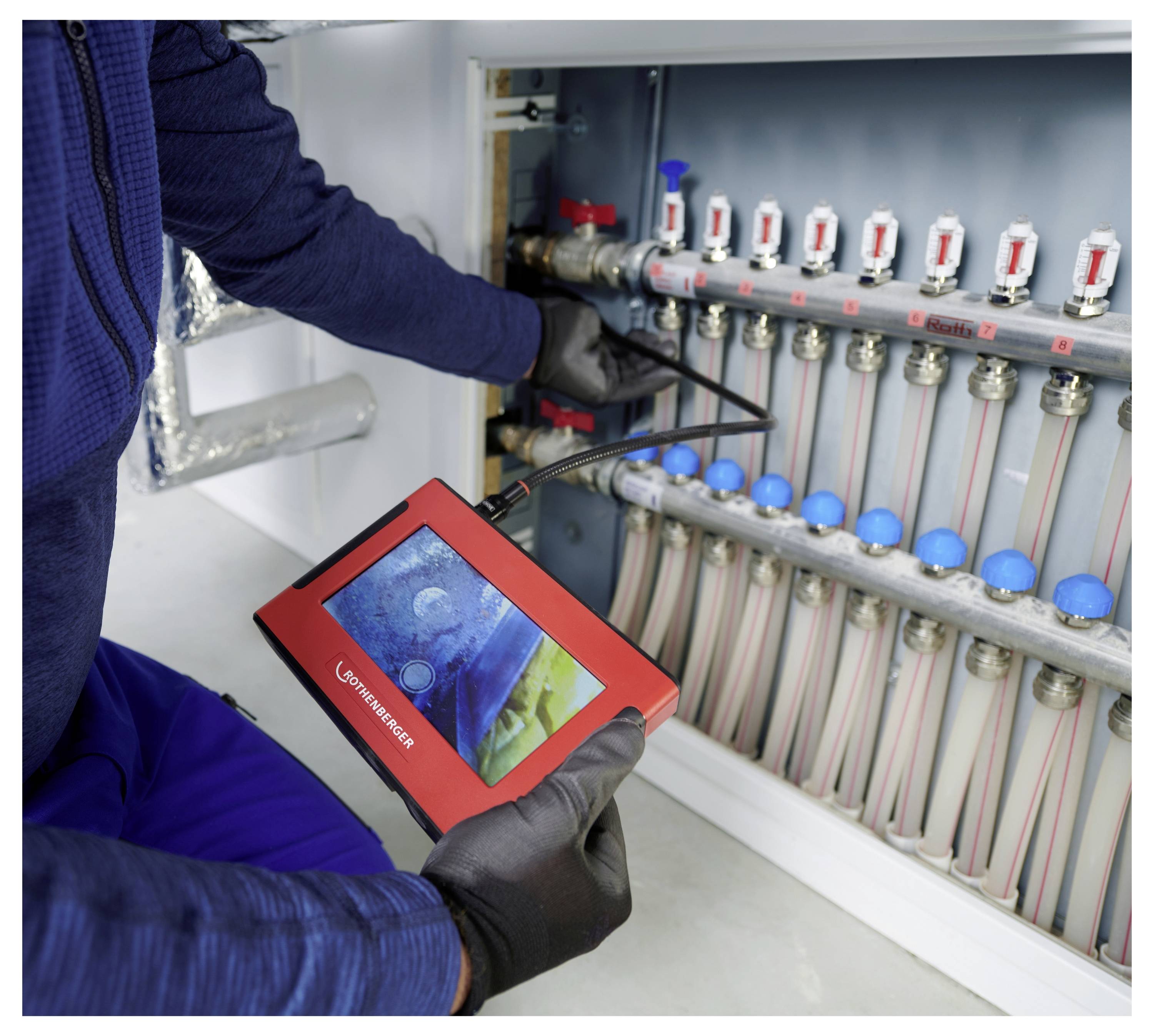

A technician in a blue uniform operates a digital tool to monitor a system of pipes and valves, checking for efficiency or issues.

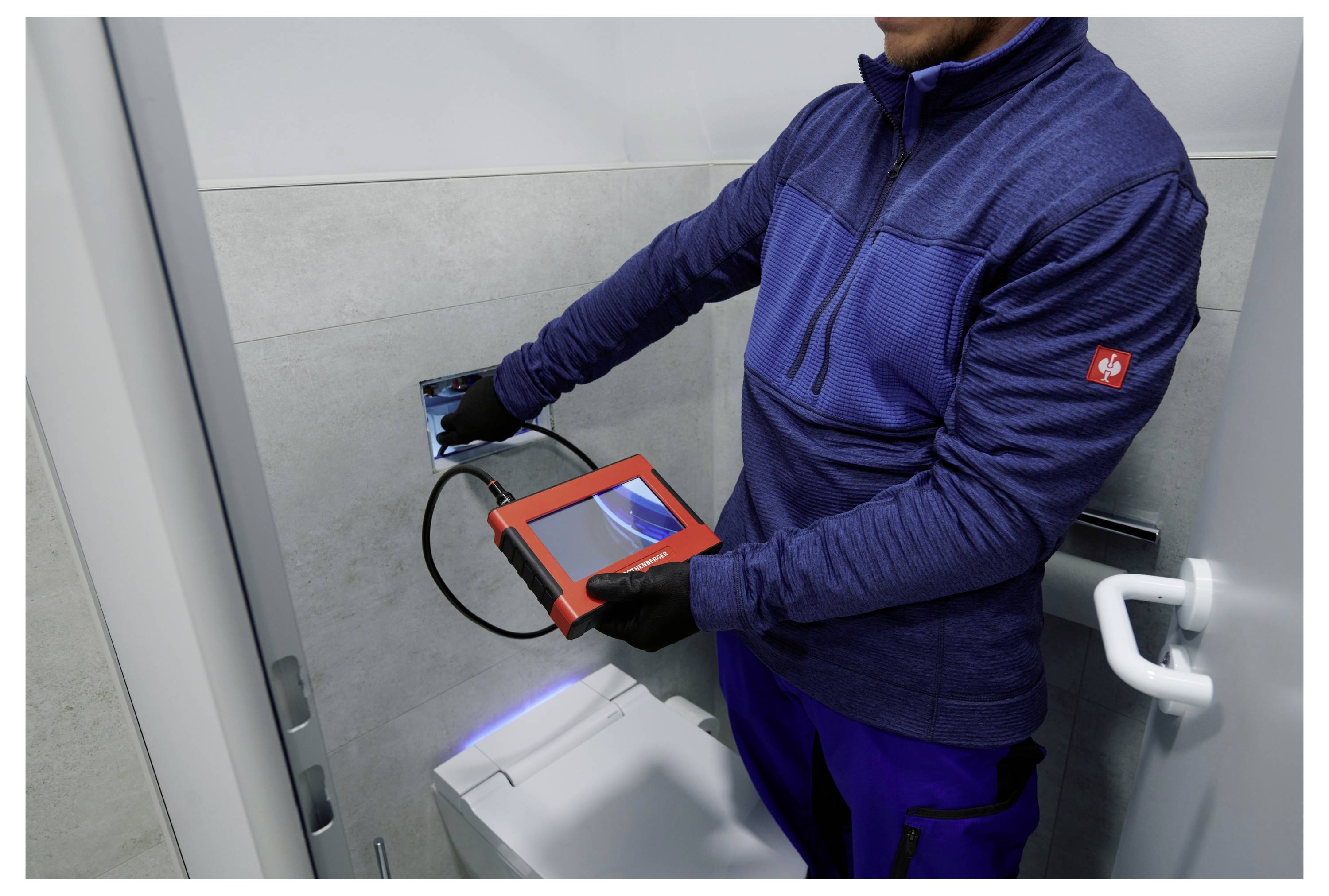

A person in a blue jacket uses a handheld inspection camera, viewing controls inside a bathroom wall near a toilet.

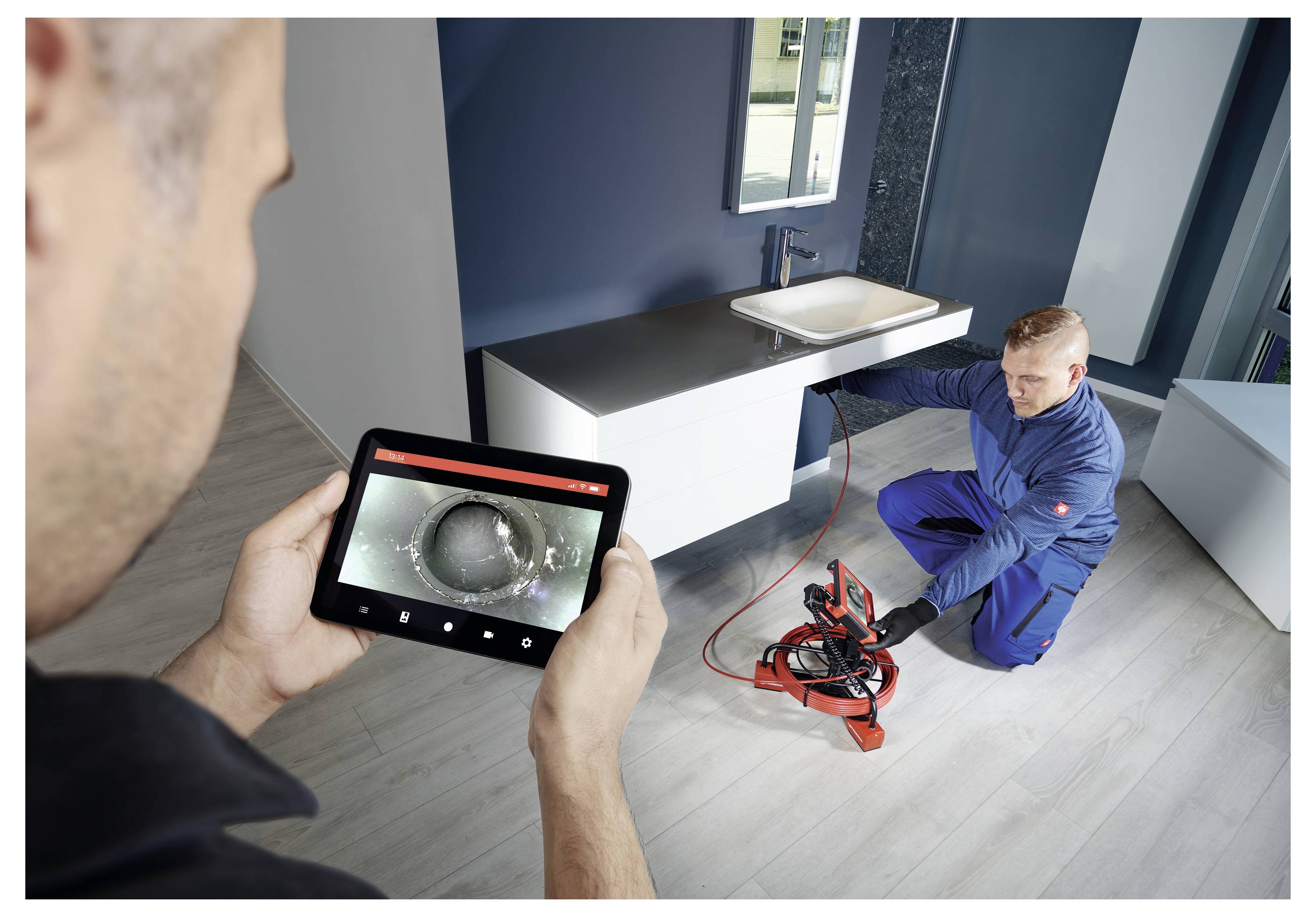

A person holding a tablet with a pipe inspection video, while another kneels near a sink, using a plumbing camera to check pipes.

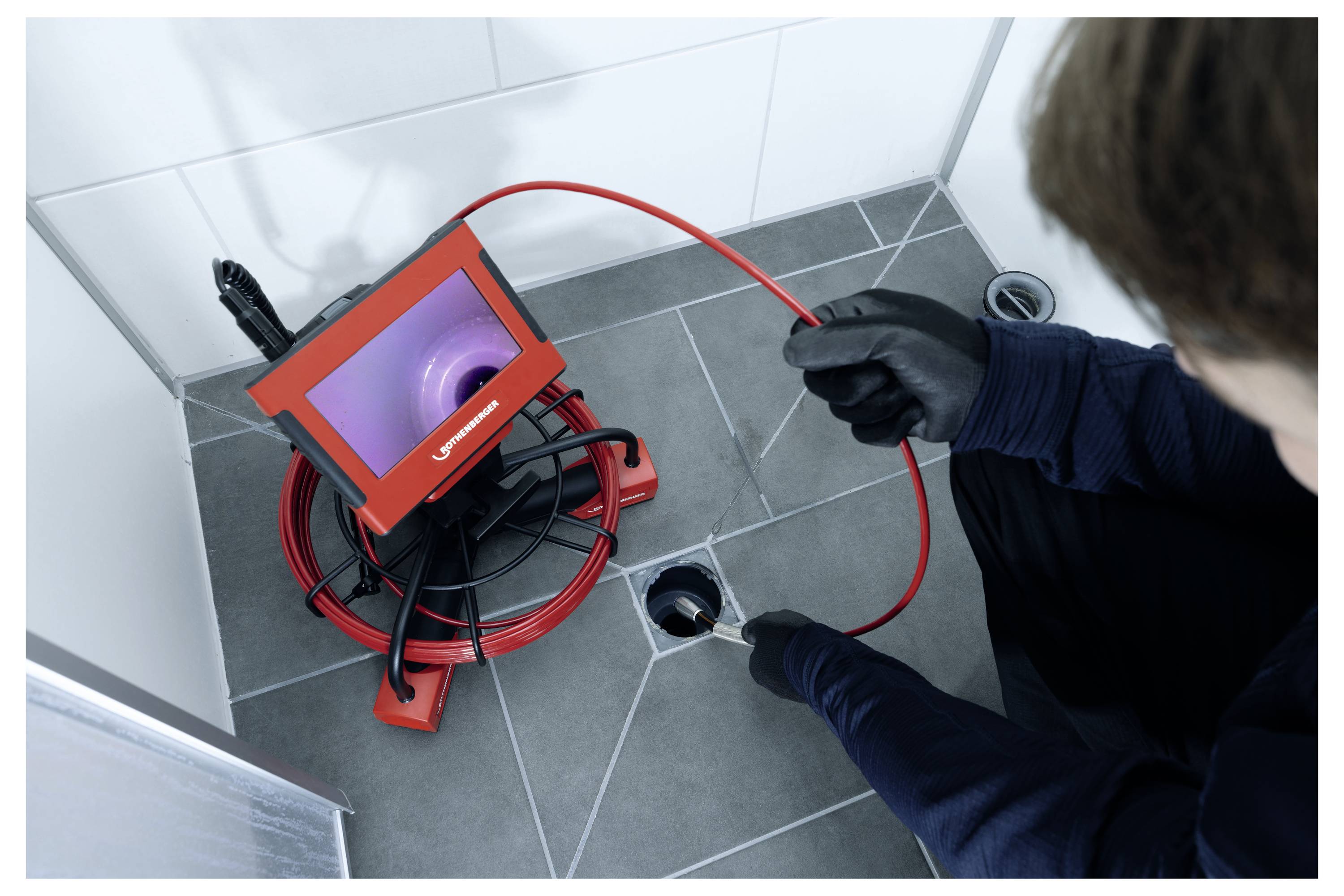

A person uses a red inspection camera with a flexible cable to check a bathroom drain on a tiled floor.

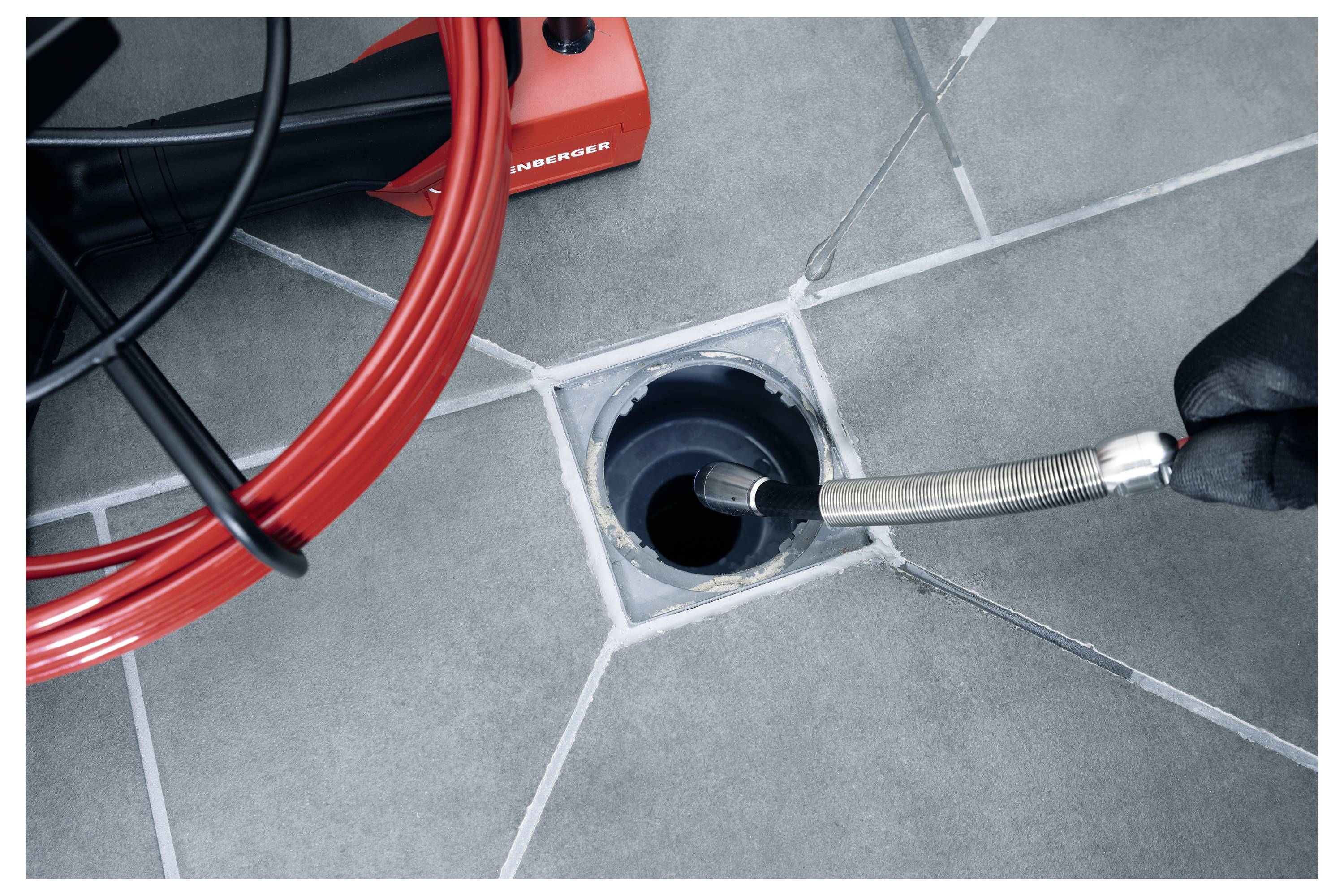

A red plumbing snake is inserted into a floor drain on grey tiled flooring, suggesting maintenance or cleaning in progress.

1/20

Dispatches on Mon, 19 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,046.22 / piece)

€ 3,046.22

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

ROCAM MINI HD AMPShare and module 20/16, basic machine

High-resolution and TrueColour for fast, accurate analysis
16-m cable for more independence
Optimised cable rigidity and head geometry to perform up to three 90° bends (40-mm tubes) depending on the model
Built-in module for connecting headphones and adding voice recordings to videos
Wi-Fi module for the perfect connection between the Smartphone and ROCAM MINI HD: Via the APP the entire gallery of the ROCAM MINI can be accessed and photos and videos can be shared directly.
Live streaming via APP for sharing the screen with the customer for a professional appearance

Technical specifications

Working range Diameter mm : 40 - 90 mm
Battery Count : No battery included
Battery System : Li-Ion / Li-Po
Rechargeable battery
Battery type: Rechargeable
Protection class IP 41
System battery : AMPShare
Type battery : Li-Power
Image format : JPG
Display resolution : 1,920 x 1,080 px
Display Type : LCD
Touch Display : Yes operation
Ambient temperature: 0 - 50 °C
Operating humidity : 0 – 95%
Storage temperature : -20 – 50 °C.
Image resolution: 1,920 x 1,080 px
Memory type: SD card
Location detector : 512 Hz
Video output : Micro-HDMI
Computer interface : SD card
Wi-Fi transmitter : Yes
APP compatible : Yes
Logging : Yes
Audio recording : Yes
Video format: AVI
Video resolution: 1,920 x 1,080 px
Cable length 16 m.
Display size: 7 inch
Diameter of sliding cable : 6.3 mm
Diameter of camera head : 20 mm
Storage capacity: 32 GB
Leuchtkraft : 100 lux

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3639938 Rothenberger 1000005075

Description

The pipe inspection set base machine, consisting of the ROCAM MINI HD AMPShare and the module Reel 20/16 HD AMPShare, combines both articles into a highly efficient set for pipe inspection. The ROCAM MINI HD AMPShare is the monitor unit with high-resolution 7-inch touch-display and simplifies the professional and professional inspection at the customer's premises. The Haspel 20/16 HD AMPShare module extends the inspection area of the ROCAM MINI HD AMPShare to 16 m and ensures that the ROCAM MINI HD AMPShare can also be used for inspection, of pipe systems, in multi-family houses. The set combines the benefits of using the ROCAM MINI HD AMPShare and the Reel 20/16 HD AMPShare.

This text is machine translated.

Scope of delivery

ROCAM mini HD - display amp
Module 20/16 HD - reel amp
Module TEC - Endoscope
Guiding ball
ROCASE 6427 with deep insertion conduit

Hints

Module for the ROCAM MINI HD AMPShare base unit for inspection of pipes.
