Buy Rothenberger 12517 Pipe expander

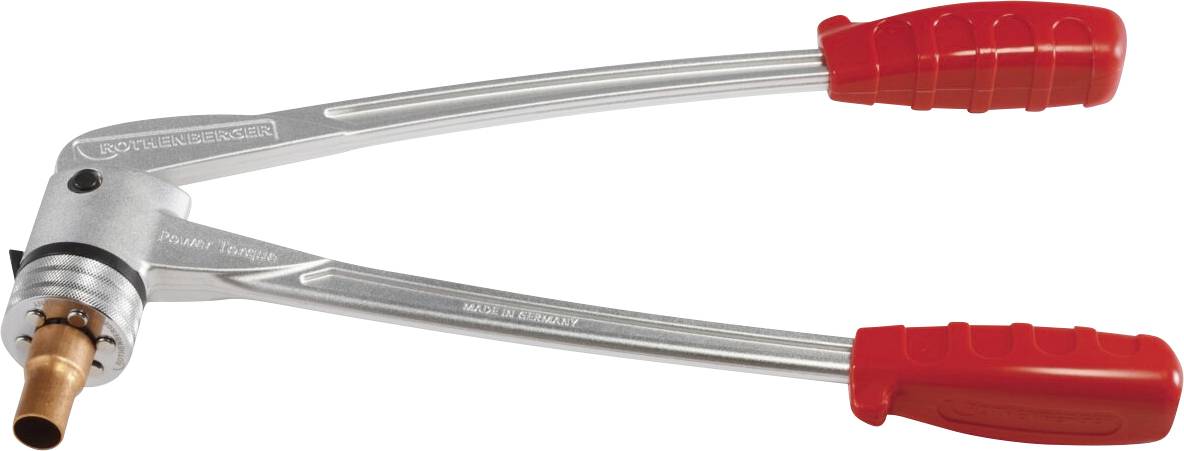

Metal tool with red handle grips used for crimping or compressing objects, particularly useful in plumbing and electrical work.

A person on a rooftop works with HVAC equipment, using a tool to bend a copper pipe. Cityscape and buildings are visible in the background.

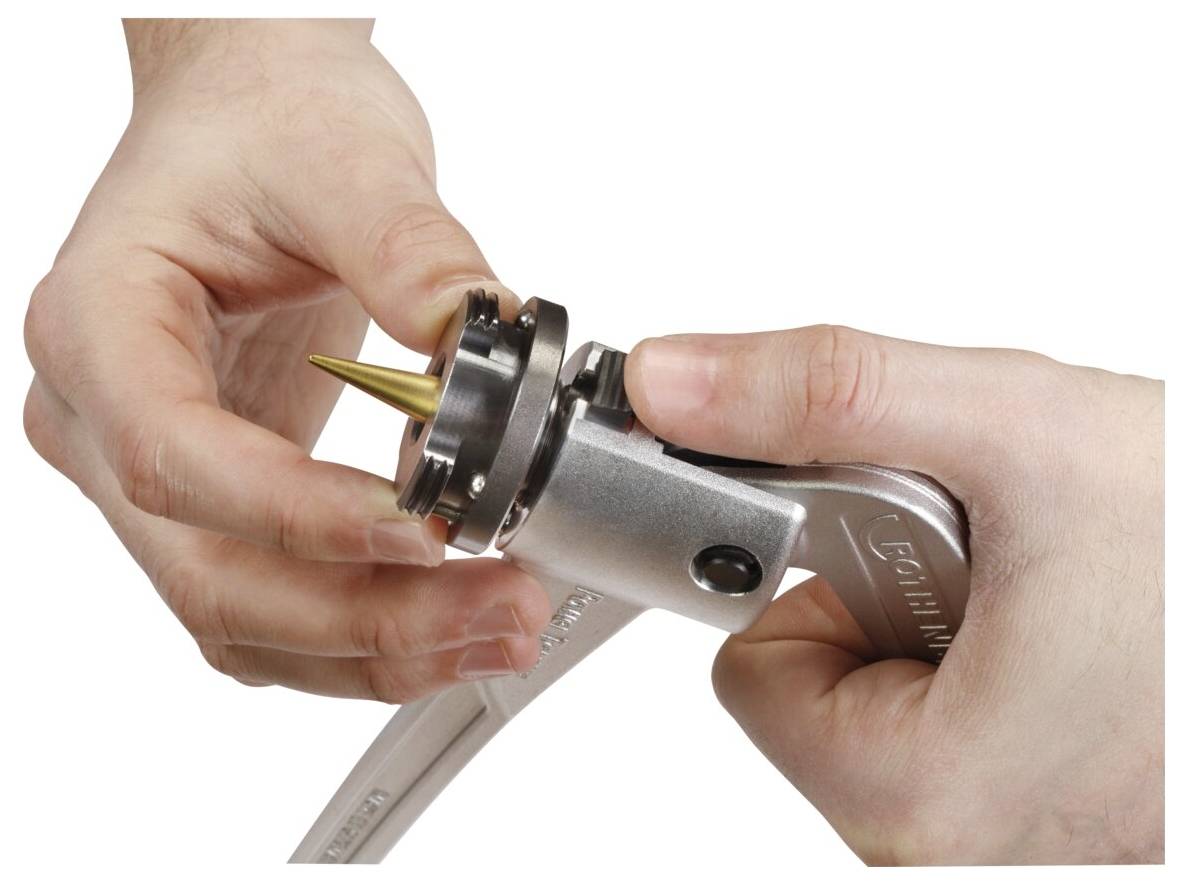

'Person holding a metal tool with a sharp, gold-colored tip, adjusting or assembling it using both hands.'

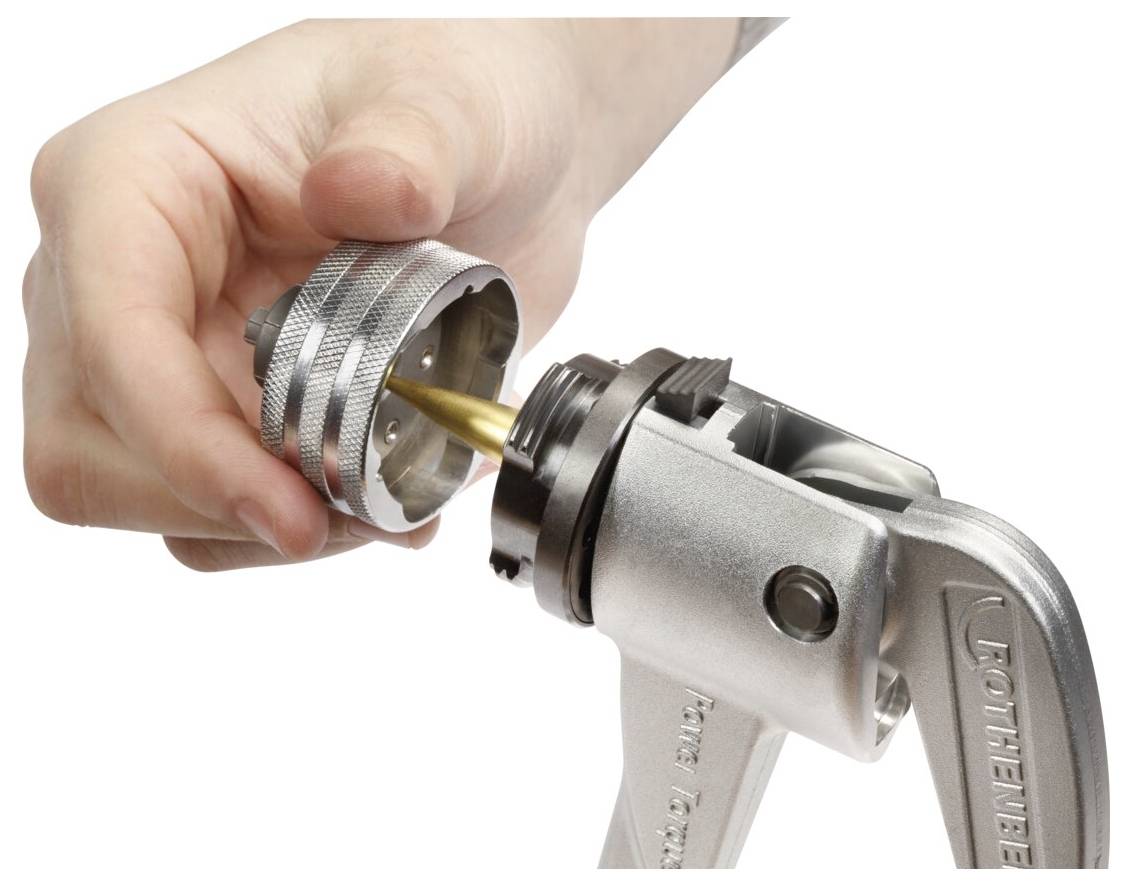

A hand gripping a metal tool with a shell holder in place, preparing it for reloading or adjusting. The setting suggests technical work.

1/4

Dispatches on Mon, 19 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 609.24 / piece)

€ 609.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

ROLOCK ept Set, 3/8-1/2-5/8-3/4-1"

No costs for fittings and storage
Rework from pipe pieces to bushes
Up to 50% savings in the costs of working time, soldering material, soldering joints and energy as compared to the fitting connection
Secure pipe connection as per DVGW
Robust, light and low wear
Exact adjustment of the capillary gap
ept technology – inner knee-lift

Technical specifications

Product type: Pipe expander

Compatible with diameters of: 9.525 - 25.4 mm

Suitable for diameters of (max.): 25.4 mm

Suitable for pipe diameter (min.): 9.525 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3551454 Rothenberger 12517 Pipe expander

Information

Information 3551454 Rothenberger 12517 Pipe expander

Description

The ROLOCK Expander Power torque expander pliers are the tool for expanding copper, stainless steel and aluminum pipes with a diameter of 3/4-1-1/2-5/8-3/8 inch. The universal wear protection layer and the high hardness of the expansion spike is achieved by the TiN coating. Protection against contamination and at the same time power-saving work is achieved by the ept-technology (closed Power transmission technology). Increased durability and load capacity of the expander head, with specially hardened segments. Using ROLOCK saves up to 50% of the cost of working time, soldering material, solder joints and energy compared to fittings. The bayonet catch allows for a quick change of the expander head.
For expanding and calibrating soft and semi-hard copper tubes, as well as for manufacturing reductions in sanitary/heating and air-conditioning systems. Suitable for pipes made of: Copper (soft and semi-hard): 3/4-1-1/2-5/8-3/8 in, max. Wall thickness 1.5 mm Aluminium (soft): 3/8-1/2-5/8-3/4-1 in, max. Wall thickness 1.5 mm Precision steel (soft): 3/8-1/2-5/8-3/4-1 in, max. Wall thickness 1.5 mm.

This text is machine translated.
