Rotrics Robotic arm MBS-DEX-01-02
EAN:
Part number:
Item no:
Number
Total (€ 1,209.24 / piece)
€ 1,209.24
plus VAT.
14-day return policy included
Technical specifications
- Base version:
- Nominal load: Max. 500 g
- Dimensions 175 x 128 x 315 mm
- Repeatability 0.05 mm
- Speed: Max. 500 mm/s
- Axles: 4
- Precision 0.1 mm
- Weight: 2.4 kg.

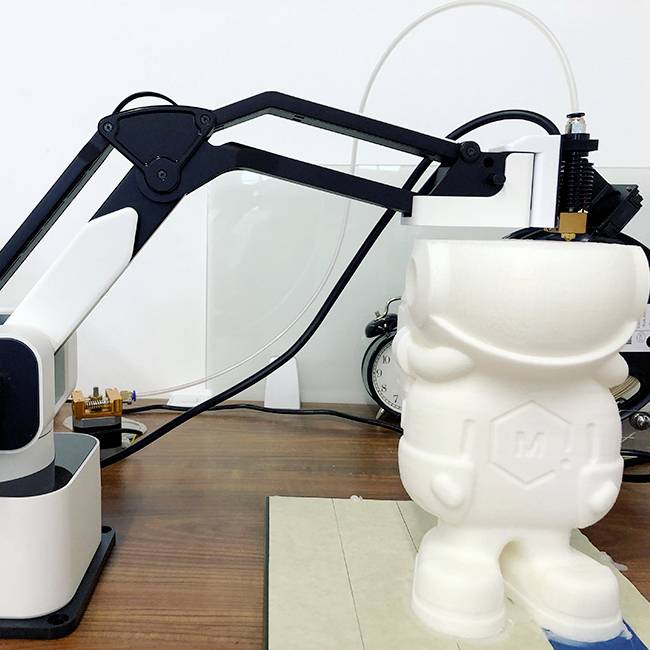

- 3D printing:
- Capacity 220 x 220 x 250 mm
- Shift resolution: 0. 1 mm
- Printing materials PLA, ABS, wood, carbon fiber
- Nozzle driving speed: Up to 150 mm/s.
- Product type
Robotic arm
- Manufacturer part #
MBS-DEX-01-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3090042 Rotrics Robotic arm MBS-DEX-01-02
Description

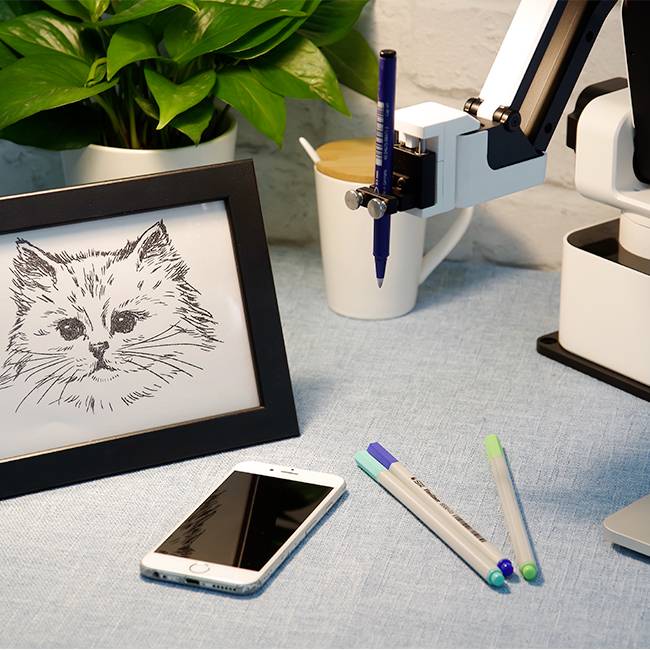

The Rotrics DexArm is a multifunctional robot arm that can be used for a wide range of applications. Apart from 3D printing and precise gripping, the DexArm can also be used for drawings and paintings. You can choose the DexArm between the Maker and the Luxury Kit according to your application purpose, which contains all the additional parts that are required for the various applications. In addition to the Maker and Luxury Kit , you can also purchase a conveyor belt and a sliding bar kit as an option. This extends the already extensive range of applications even further by means of possibilities such as reproduction of production processes or allowing the DexArm to work on larger areas.
This text is machine translated.
This text is machine translated.
Features
- High-precision robot arm
- 3D printing
- 3.5" touchscreen
- Pharma-Kit
- WITHOUT laser module! The laser module can be purchased separately after sending the signed disclaimer!
Scope of delivery
- 1 x Rotrics Dexarm
- 1 x pen holder module
- 1 x 3D print module
- 1 x pneumatic module
- 1 x Air pump casing
- 3 x suction Cup
- 3x soft gripper
- 1x touch-screen
- 1x extruder
- 1x construction plate
- 5x printing stickers & wooden boards
- 1x DC Y power divider
- 1 x PSU
- 2x Dual type-C cable
- 1x Type-C cable
- 1x tweezers
- 1x replacement nozzle
- Without laser module
