RP Technik ZAW019ML Safety light Wall mount
EAN:
Part number:
Item no:
Technical specifications
- Colour RAL 7016Supply: Central power supplyMonitoring: ML - central power supplyBridging time CPSOperating mode ELSPower DS 3.2 WPower BS 1 WAmbient temp. DS -30 ° C / 35 ° C.Ambient temp. BS -30 ° C / 40 ° C.Cross-section 2.5 mmSwitch input L': No.Emergency light blocking: No.Battery connection: No.Dimming function: YesLuminous flux: 220 lmLuminous flux: 220 lm
- Dim

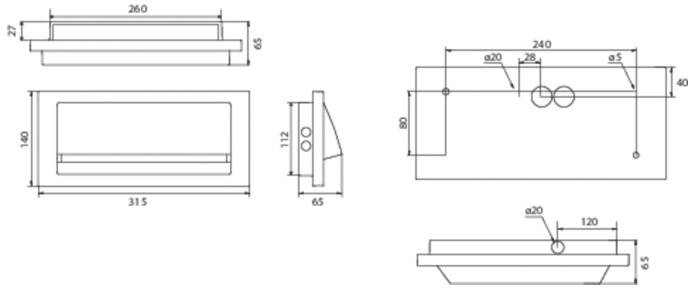

(W x H x D) 315 x 140 x 65 mm
- Product type
Safety light
- Main battery supply
Yes
- Backlit
Yes
- Operating voltage
230 V
- Weight
2.02 kg
3.2 W
- Bulb type
LED (monochrome)
- Material
Zinc (die-cast)
- Mounting type
Wall mount
- Width
315 mm
- Height
140 mm
- Depth
65 mm
IP65
IK08
- Protection class
I
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2631991 RP Technik ZAW019ML Safety light Wall mount
User & Safety Instructions
User & Safety Instructions 2631991 RP Technik ZAW019ML Safety light Wall mount
User & Safety Instructions 2631991 RP Technik ZAW019ML Safety light Wall mount
Description

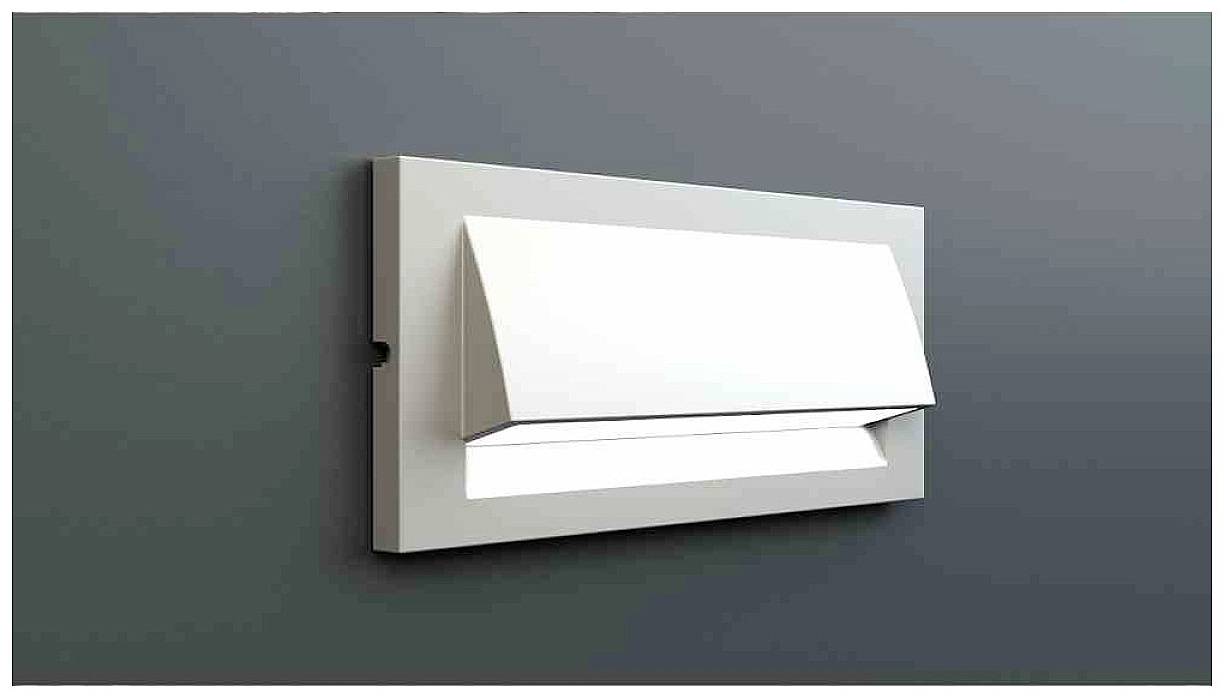

Robust wall surface-mounted lamp made of zinc die-cast for lighting the escape and rescue routes in the area of outputs according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.Attractive design through concealed screw connection.
