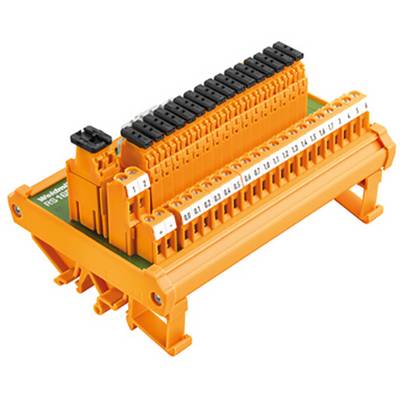

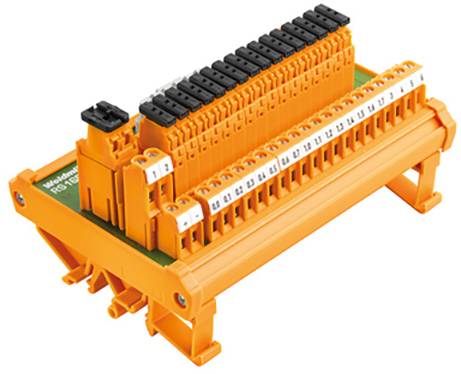

RS 16IO 1W I R S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
24
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Technical specifications
- Number of pins (control side): 24-pin socket
- Overvoltage category II
- Pollution level: 2
- Clamping range, min.: 0.13 mm²
- Separation per channel: Yes
- Fuse through channel: No.
- Power LED status: No.
- 3.15 A power supply fuse
- Connection to PLC: RSV 1.6 connector - 24 pins
- Operating voltage 250 V UC
- Maximum current per channel: 1 A.
- Wiring system: 1-wire
- Product type
Transfer module
- Total no. of pins
24
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 127 x 87 x 72 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Operating current
2 A
- Weight
298 g
- Content
1 pc(s)
- Number of pins
24
- Width
87 mm
- Height
72 mm
- Length
127 mm
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- UKCA
yes
