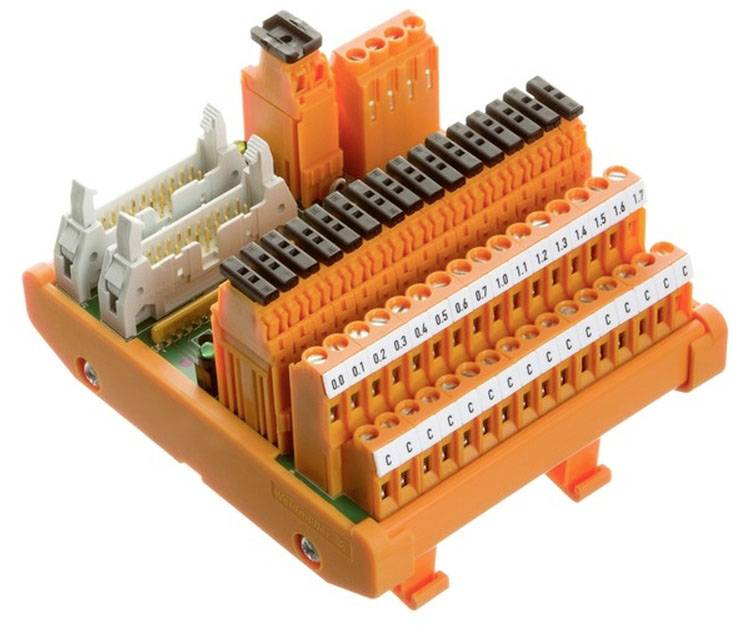

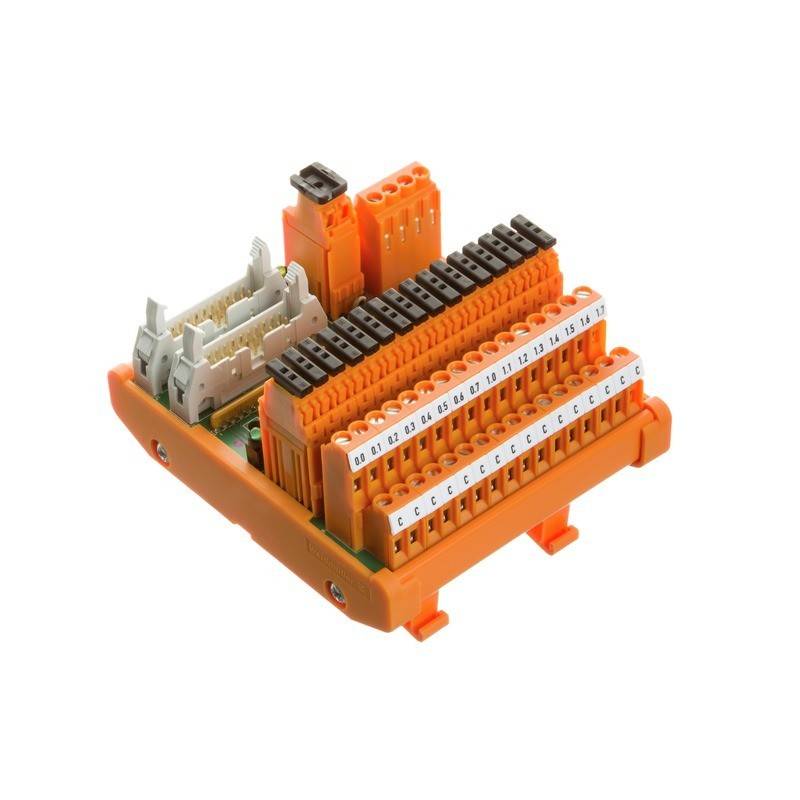

RS 16IO 2W I-L 2H S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
20
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Datasheet (PDF)
Technical specifications
- Number of pins (control side): 20-pin connector
- Over voltage category III
- Pollution level: 2
- Clamping range, min.: 0.13 mm²
- Separation per channel: Yes
- Fuse through channel: No.
- Supply voltage LED status: Yellow
- 3.15 A power supply fuse
- Connection to PLC: He 10 connector - 20 pole
- Operating voltage 24 V DC ± 10%
- Maximum current per channel: 1 A.
- Wiring system: 2-wire
- Product type
Transfer module
- Total no. of pins
20
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 91 x 109 x 79 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Operating current
2 A
- Weight
277.3 g
- Content
1 pc(s)
- Number of pins
20
- Width
109 mm
- Height
79 mm
- Length
91 mm
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- Features
+ LED
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2242341 RS 16IO 2W I-L 2H S Weidmüller Content: 1 pc(s)
