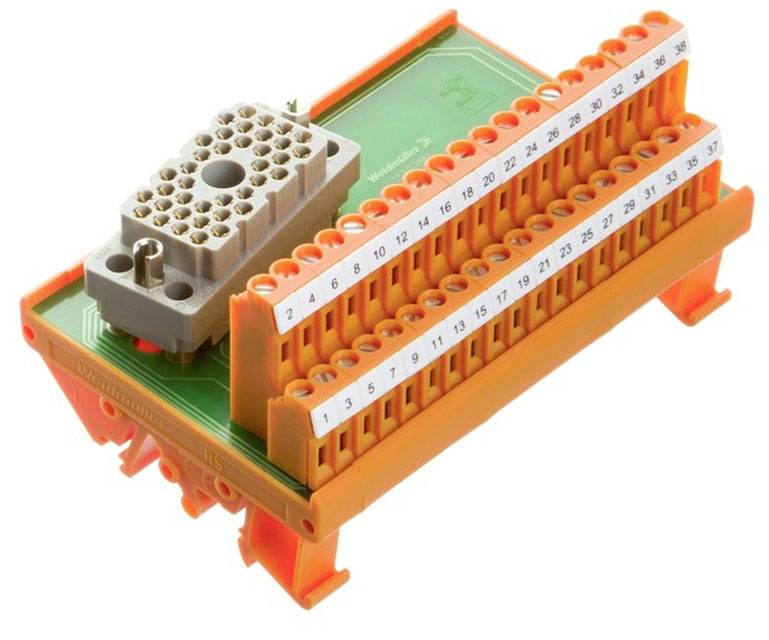

RS ELCOF 38/38LM S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
38
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Technical specifications
- Number of pins (control side): 38-pin socket
- RATED VOLTAGE 150 V AC / 200 V DC
- Nominal current per connection 1.5 A.
- Overvoltage category II
- Pollution level: 2
- Clamping range, min.: 0.13 mm²
- Contact material (control side): Phosphor-bronze alloy
- Product type
Transfer module
- Total no. of pins
38
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 105 x 70 x 60 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Operating current
57 A
- Weight
175 g
- Content
1 pc(s)
- Number of pins
38
- Width
70 mm
- Height
60 mm
- Length
105 mm
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
DIN rail (top hat rail) 35 mm
105
70 mm
60 mm
1.5 A
38
Spring clamp connection
2
- UKCA
yes
