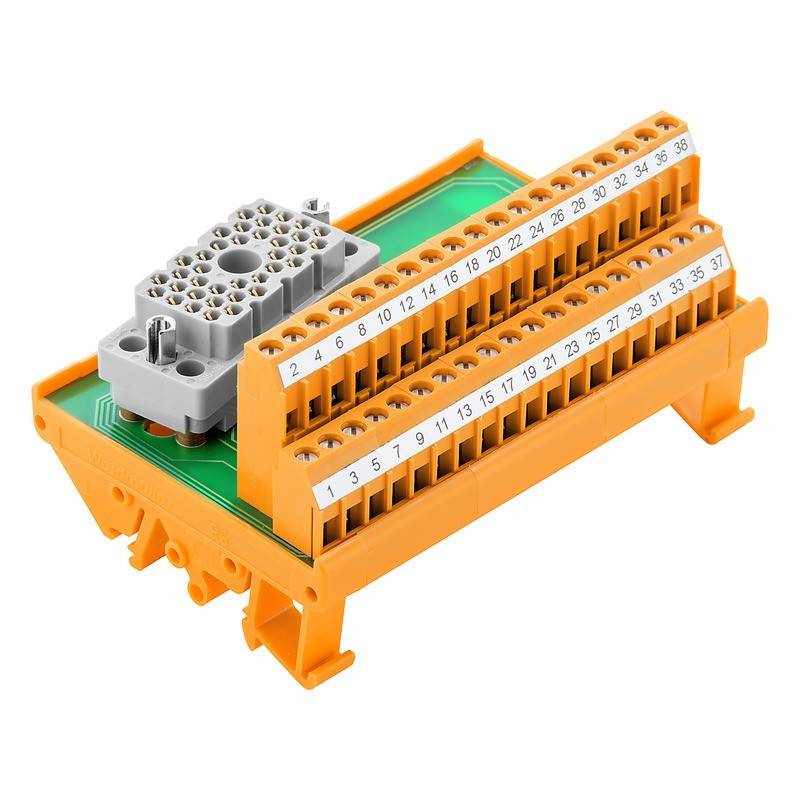

RS ELCOF 38/38RM S Weidmüller Content: 1 pc(s)-0

RS ELCOF 38/38RM S Weidmüller Content: 1 pc(s)-0

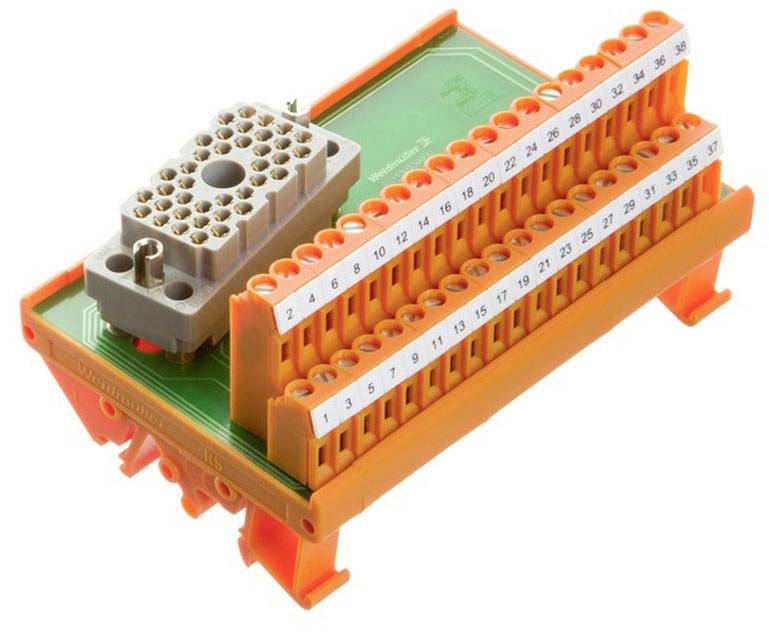

RS ELCOF 38/38RM S Weidmüller Content: 1 pc(s)-1

1/2

Product type

Transfer module

Total no. of pins

38

Connection

Screws

AWG

26 - 12

Stripping length (max.)

6 mm

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Number of pins (control side): 38-pin socket
RATED VOLTAGE 150 V AC / 200 V DC
Nominal current per connection 1.5 A.
Overvoltage category II
Pollution level: 2
Clamping range, min.: 0.13 mm²
Contact material (control side): Phosphor-bronze alloy

Product type: Transfer module

Total no. of pins: 38

Connection: Screws

: 26 - 12

Stripping length (max.): 6 mm

Dim: (L x W x H) 105 x 70 x 60 mm

Connector (field): Screws

Connector (control): Connector

Operating current: 57 A

Weight: 175 g

Content: 1 pc(s)

Number of pins: 38

Width: 70 mm

Height: 60 mm

Length: 105 mm

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -25 °C

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (max.): 6 mm²

UKCA: not relevant
