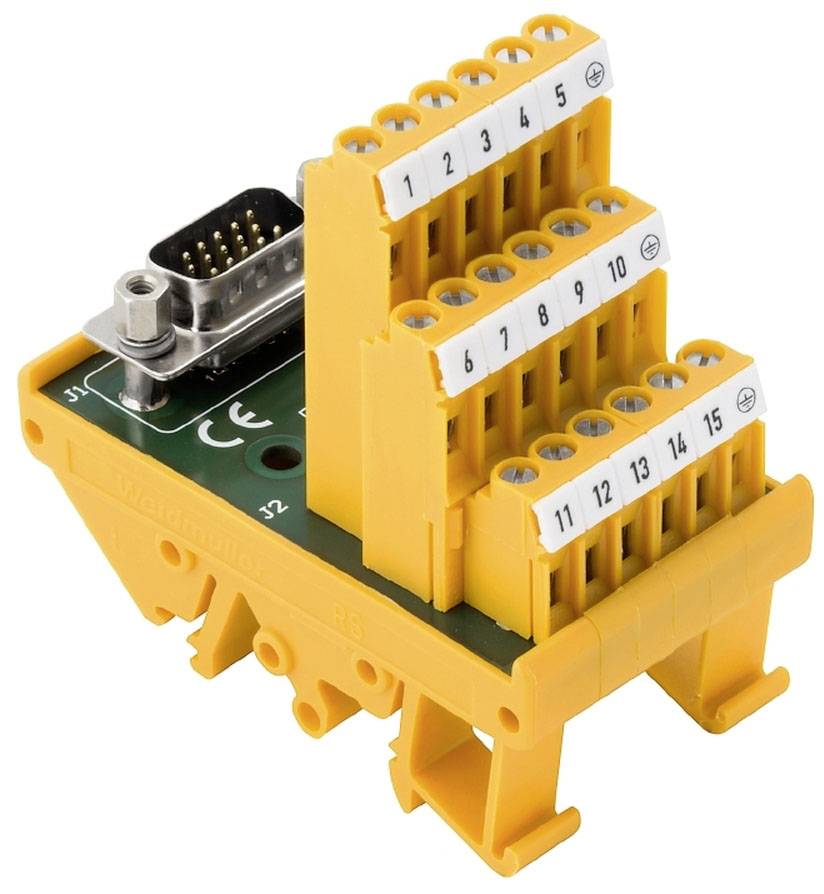

Electronic connector adapter: Yellow, with multiple numbered ports and a metal plug on the left, mounted on a green circuit board.

Image similar

Electronic connector adapter: Yellow, with multiple numbered ports and a metal plug on the left, mounted on a green circuit board.

Image similar

Product type

Transfer module

Total no. of pins

26

Connection

Screws

AWG

26 - 12

Stripping length (max.)

6 mm

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Number of poles (control side): 26-pin plug
Rated voltage: 125 V AC / 175 V DC
Rated current per connection: 1 A
Overvoltage category: II
Pollution degree: 2
clamping range, min.: 0.13 mm²

Product type: Transfer module

Total no. of pins: 26

Connection: Screws

: 26 - 12

Stripping length (max.): 6 mm

Dim: (L x W x H) 55 x 70 x 71 mm

Connector (field): Screws

Connector (control): D-Sub plug

Weight: 112 g

Content: 1 pc(s)

Number of pins: 26

Width: 70 mm

Height: 71 mm

Length: 55 mm

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -25 °C

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (max.): 6 mm²

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2242324 RS SD26M HD UNC4.40 S Weidmüller Content: 1 pc(s)
