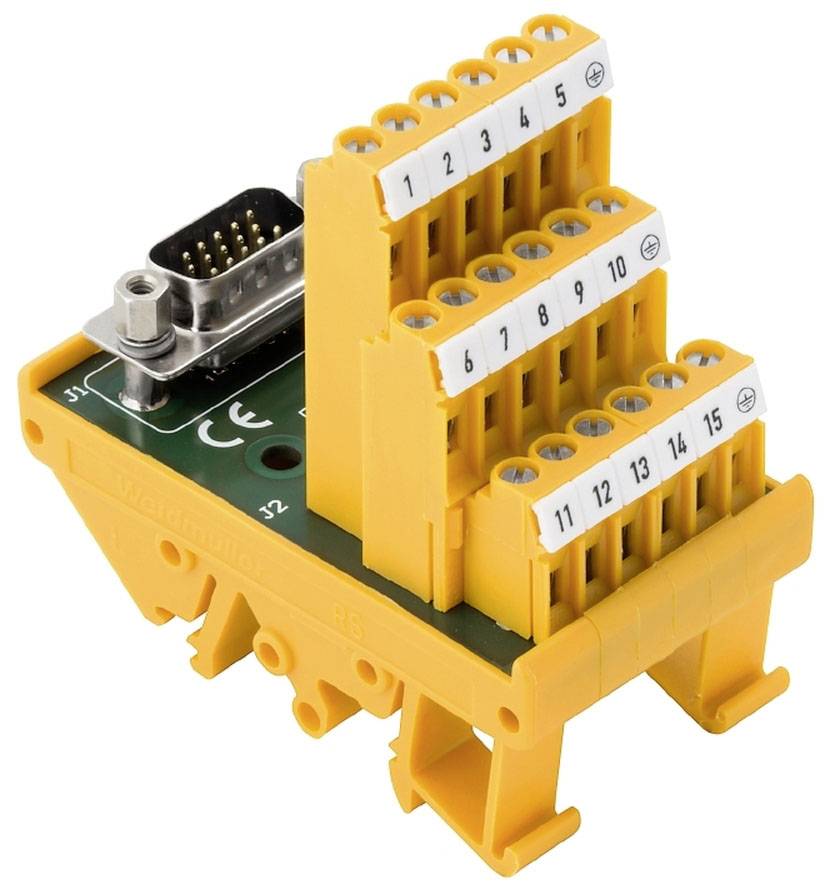

Yellow electrical connection module with multiple screw terminals, numbered from 1 to 15, and a parallel connection.

Image similar

Yellow electrical connection module with multiple screw terminals, numbered from 1 to 15, and a parallel connection.

Image similar

Product type

Transfer module

Total no. of pins

62

Connection

Screws

AWG

26 - 12

Stripping length (max.)

6 mm

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Number of poles (control side): 62-pin socket
Rated voltage: 125 V AC / 175 V DC
Rated current per connection: 1 A
Overvoltage category: II
Pollution degree: 2
clamping range, min.: 0.13 mm²

Product type: Transfer module

Total no. of pins: 62

Connection: Screws

: 26 - 12

Stripping length (max.): 6 mm

Dim: (L x W x H) 135 x 70 x 71 mm

Connector (field): Screws

Connector (control): D-Sub plug

Weight: 223.35 g

Content: 1 pc(s)

Number of pins: 62

Width: 70 mm

Height: 71 mm

Length: 135 mm

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -25 °C

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (max.): 6 mm²

UKCA: yes
