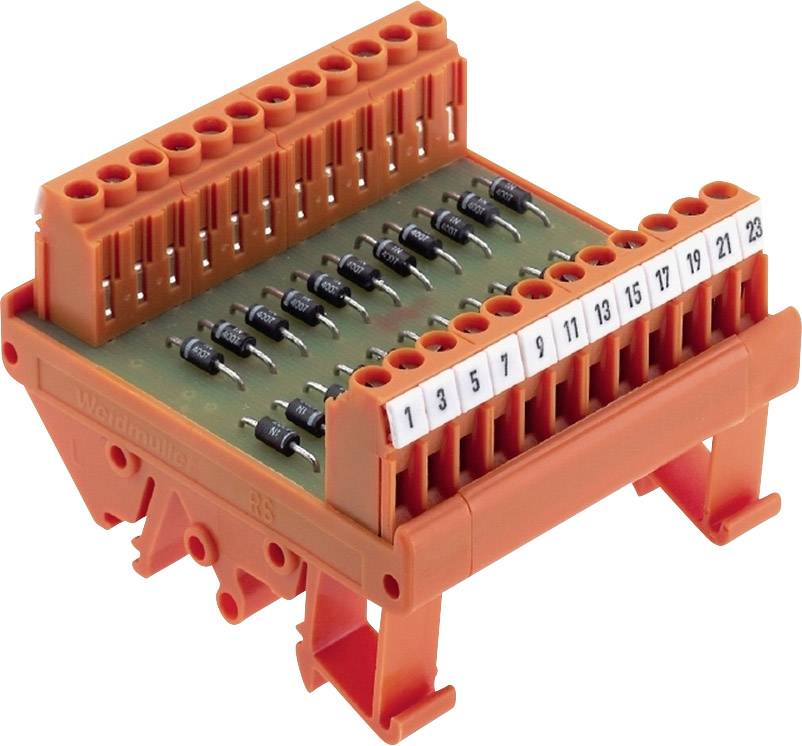

RSD A20 LP/LP Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Dim
(L x W x H) 60 x 70 x 42 mm
Technical specifications
- Nominal current per connection: 1 A
- Overvoltage category: II
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Nominal voltage: 230 V
- Component: Diode
- Product type
Transfer module
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 60 x 70 x 42 mm
- Connector (field)
Screws
- Weight
68.1 g
- Content
1 pc(s)
- Width
70 mm
- Height
42 mm
- Length
60 mm
- RoHS-compliant
Yes
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
DIN rail (top hat rail) 35 mm
60
70 mm
42 mm
1 A
230 V
20
Screw connection
2
- UKCA
yes
