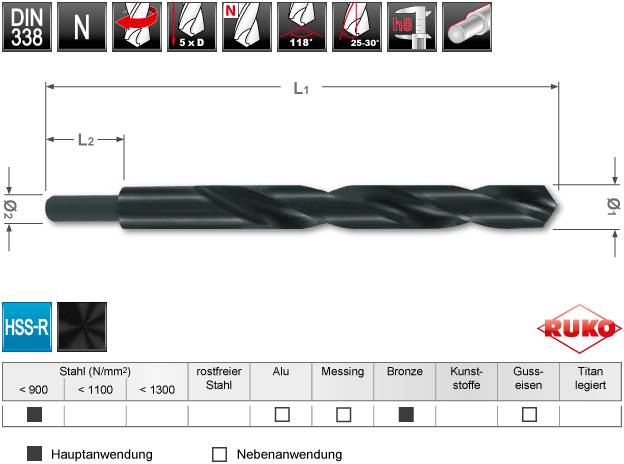

RUKO 200195 HSS-R Twist drill bit 19.5 mm Total length 205 mm rolled DIN 338 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
19.5 mm
Content
1 pc(s)
Material
HSS-R
Material suitability
Metal
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Cut direction right-handed cutting
- Shank offset shaft
- Pit-out form N: Conical sheath grinding normal ground
- Product type
Twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
19.5 mm
- Tip angle
118°
- Content
1 pc(s)
- Material
HSS-R
- Material properties
rolled
- Material suitability
Metal
- Tensile strength (max.)
900 N/mm²
- Working length
35 mm
- Total length
205 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290867 RUKO 200195 HSS-R Twist drill bit 19.5 mm Total length 205 mm rolled DIN 338 1 pc(s)
Description
Ø 19.5 x 205 x 35 mm ideal for drilling larger drill diameters for all standard drills with a chuck of up to 13.0 mm. - Powerful, rolled and steam-treated spiral drill bits made of high-performance high-speed steel. The material is reinforced by the manufacturing process (no interruption of the structure) and thus more elastic. This makes it more resistant to breakage and is suitable for robust drilling units. (E.g. hand drills) High-performance high-speed work steel for drilling in well-machined materials with a strength of up to 900 N/mm².
