RUKO 2005140 DIN 338 Typ N HSSE-Co 5 Twist drill bit 14 mm Total length 160 mm cobalt DIN 338 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
14 mm
Content
1 pc(s)
Material
HSSE-Co 5
Material suitability
Metal
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Cutting direction right-hand cutting
- Shank offset shaft
- Sitting shape C: Cross-ground
- Product type
Twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
14 mm
- Tip angle
130°
- Content
1 pc(s)
- Material
HSSE-Co 5
- Material properties
cobalt
- Material suitability
Metal
- Tensile strength (max.)
1100 N/mm²
- Working length
30 mm
- Total length
160 mm
- Drill hole diameter
14 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290886 RUKO 2005140 DIN 338 Typ N HSSE-Co 5 Twist drill bit 14 mm Total length 160 mm cobalt DIN 338 1 pc(s)
Description

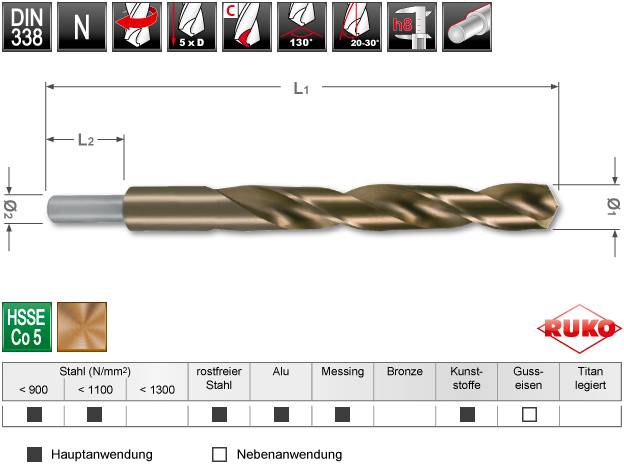

Ø 14.0 x 160 x 30 mm ideal for drilling larger drill diameters for all standard drills with a chuck of up to 13.0 mm. - High-performance high-speed working steel with 5% cobalt content. High toughness and heat resistance, for drilling in hard-to-work materials with a strength of up to 1100 N/mm².
