Rutenbeck 12xLSH OS2 APC grün FO splice box E2000 1 U
EAN:
Part number:
Item no:

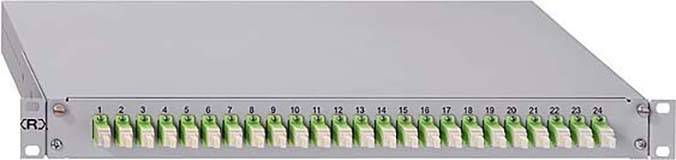

Rutenbeck splicebox extendable, 19"/1HE 12xLSH OS2 APC green
Technical specifications
- APC version: Yes
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 12
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
E2000
Singlemode OS2
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296565 Rutenbeck 12xLSH OS2 APC grün FO splice box E2000 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 12xLSH, OS2 APC, green, powder-coated steel sheet casing, factory port marking, with slide extension, retraction depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, splice box for holding 12 or 24 pigtails, can be equipped with max. 4 spliceboxes (fixed), inserted crimp spliceholder Ready to splice with offset and inserted pigtails incl. 12 x LSH - ceramic couplings, SC fiber pigtails E9/125 Ám, 2 m, SM APC, grade B, with measurement protocol for all fibers incl. serial number, 12 mounted blanking plugs, 4 x rear-side PG16 screw joints (2 x right/left), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
