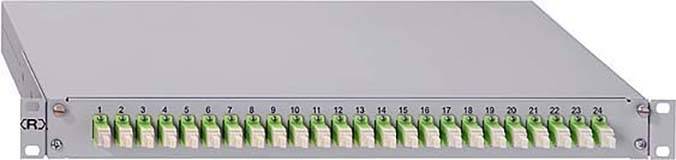

Rutenbeck 24xSC-D OM4 vio FO splice box SC Equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- APC type: no.
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 24
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
SC
- Patch panel design
Equipped
Duplex
Multimode
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
Violet
- Length
321 mm
- Width
483 mm
- Height
44 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297575 Rutenbeck 24xSC-D OM4 vio FO splice box SC Equipped 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 24xSC-D, OM4, erika, powder-coated steel sheet casing, factory port identification, with slide extension, retraction depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, 2 spliceboxes for holding 12 or 24 pigtails, can be fitted with max. 4 spliceboxes (crimped), fixed, splicebox holder Ready to splice with offset and inserted pigtails incl. 24 x SC-D - ceramic couplings, SC fiber pigtails G50/125 Ám, 2 m, MM PC, grade B, with measurement protocol for all fibers incl. serial number, 4 x rear-side PG16 screw connections (2 x right/left each), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
