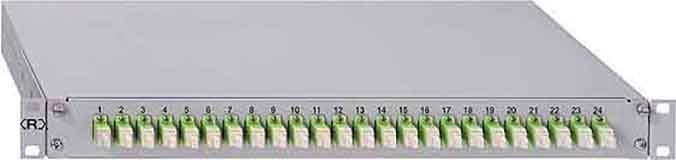

Rutenbeck 24xSC-D OS2 APC grün FO splice box SC Equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- APC version: Yes
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 12
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
SC
- Patch panel design
Equipped
Duplex
Singlemode
- Fibre type
9/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
Green
- Length
321 mm
- Width
483 mm
- Height
44 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292628 Rutenbeck 24xSC-D OS2 APC grün FO splice box SC Equipped 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 12xSC-D OS2 APC green, powder-coated steel sheet casing, factory port marking, with slide extension, retraction depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, splice box for holding 12 or 24 pigtails, can be equipped with max. 4 spliceboxes (fixed), inserted crimp spliceholder Ready to splice with offset and inserted pigtails incl. 12 x SC-D - ceramic couplings, SC fiber pigtails E9/125 Ám, 2 m, SM PC, grade B, with measurement protocol for all fibers incl. serial number, 4 x rear-side PG16 screw connections (2 x right/left each), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
