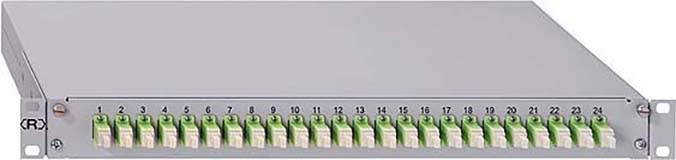

Rutenbeck 24xSC-D OS2 blau FO splice box SC 1 U
EAN:
Part number:
Item no:
Rutenbeck splicebox extendable, 19"/1HE 24xSC-D OS2 blue
Technical specifications
- APC type: no.
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 24
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
SC
Duplex
Singlemode
- Rack unit
1 U
- Factory colour
Grey
Blue
- Length
321 mm
- Width
483 mm
- Height
44 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293630 Rutenbeck 24xSC-D OS2 blau FO splice box SC 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 24xSC-D, OS2, blue, powder-coated steel sheet casing, factory port identification, with slide extension, pull-out depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, 2 splice boxes for holding 12 or 24 pigtails, can be fitted with max. 4 spliceboxes (fixed), inserted splice holder Ready to splice with offset and inserted pigtails incl. 24 x SC-D - ceramic couplings, SC fiber pigtails E9/125 Ám, 2 m, SM PC, grade B, with measurement protocol for all fibers incl. serial number, 4 x rear-side PG16 screw connections (2 x right/left each), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
