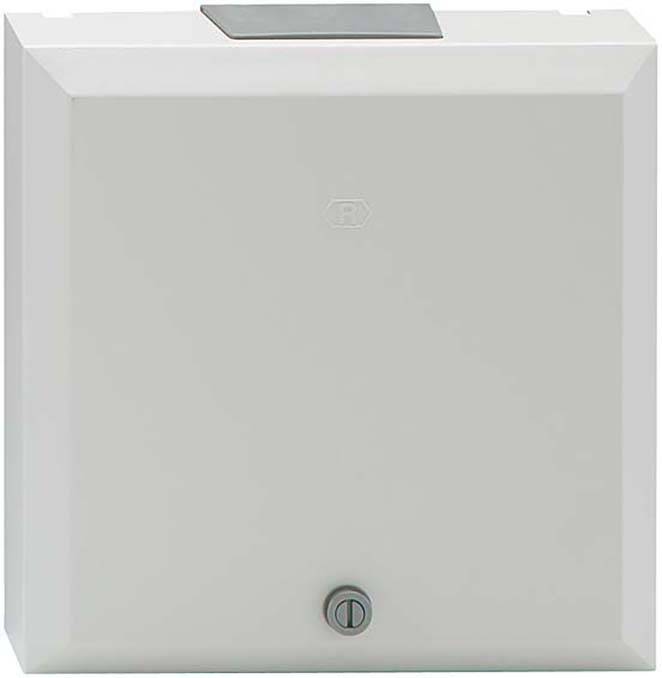

Rutenbeck 27010110 VKP 85/4 Ap Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
320 mm
Height
330 mm
Depth
76 mm
Technical specifications
- Design: Distribution box
- DIN compatible: Yes
- Max. Number of double wires (DA): 160
- With connection strips: no.
- IP30 protection
- Material: Steel sheet/plastic
- Product type
Switchboard cabinet
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
320 mm
- Height
330 mm
- Dim
(W x H x D) 320 x 330 x 76 mm
- Depth
76 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297526 Rutenbeck 27010110 VKP 85/4 Ap Switchboard cabinet Surface-mount Content 1 pc(s)
Description
Distribution box for private networks, surface-mounted, protection class IP 30, with 2 fixing bars 270 mm, 2 EKL 4 and 8 wire guide rings, with NO contact, light gray (similar to RAL 7035), 320 x 330 x 76 mm, 2660 g. Occupancy options: Connection strips with 170 mm fixing distance according to DIN 47614 or similar can be installed. Group 1: Strips with a width of approx. 40 to 45 mm (screw/screw strip 20 THERE, screw/solder strip 20 THERE). Group 2: Strips with a width of approx. 26 to 29 mm (LSA strip 20 THERE). Assignment e.g.: Up to 5 bars group 1 = 100 OR 8 bars group 2 = 160
