Rutenbeck 6xLC-D OM5 grün FO splice box LC 1 U
EAN:
Part number:
Item no:

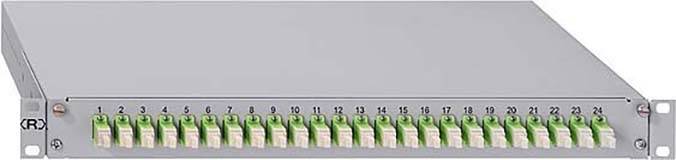

Rutenbeck splicebox extendable, 19"/1HE 6xLC-D OM5 green
Technical specifications
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 6
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
LC
Duplex
Multimode
- Fibre type
50/125 µ
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293631 Rutenbeck 6xLC-D OM5 grün FO splice box LC 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 6xLC-D, OM5, green, powder-coated steel sheet casing, factory port identification, with slide extension, pull-out depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, splice box for holding 12 or 24 pigtails, with max. 4 spliceboxes (fixed), inserted crimp spliceholder Ready to splice with offset and inserted pigtails incl. 6 x LC-D - ceramic couplings, LC fiber pigtails G50/125 Ám, 2 m, MM PC, grade B, with measurement protocol for all fibers incl. serial number, 18 mounted blanking plugs, 4 x rear PG16 screw joints (2 x right/left), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
