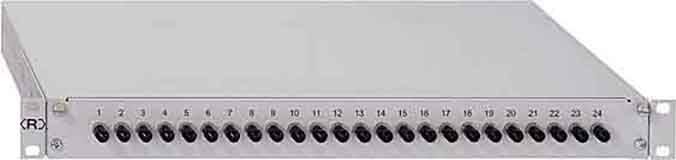

Rutenbeck 6xST OM3 FO splice box ST Partly equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 6
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
ST
- Patch panel design
Partly equipped
Pigtail
Multimode OM3
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292630 Rutenbeck 6xST OM3 FO splice box ST Partly equipped 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 6xST, OM3, metal, powder-coated steel sheet casing, factory port marking, with slide extension, retraction depth approx. 20 cm, can be tilted downwards when open, can be locked with knurled screws, 40 mm resettable box, splice box for holding 12 or 24 pigtails, can be equipped with max. 4 spliceboxes (fixed), inserted crimp spliceholder Ready to splice with offset and inserted pigtails including 6 x ST - ceramic couplings, SC fiber pigtails G50/125 Ám, 2 m, MM PC, grade B, with measurement protocol for all fibers incl. serial number, 18 mounted blanking plugs, 4 x rear-side PG16 screw joints (2 x right/left each), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
