Rutenbeck IAE/UAE 2x8(4)TRSUp0 Network outlet Flush mount Insert with main panel and frame CAT 3 Oyster white
EAN:
Part number:
Item no:

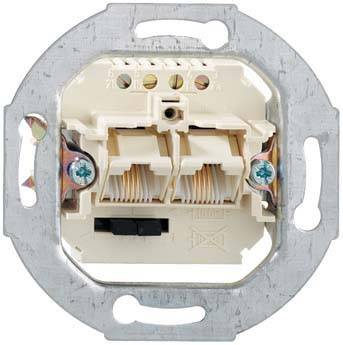

Rutenbeck connection socket IAE/UAE 2x8(4)TRSUp0
Technical specifications
- Connection type: Screw
- Outlet direction: Oblique
- Fastening method: Screws
- Floor box/floor mounting: Yes
- Design-ready: Yes
- Suitable for number of sockets/couplings: 2
- Channel installation: Yes
- With sockets/couplings: Yes
- Mounting type shield connection: Screw
- Protection class: IP20
- Separate ground connection: Yes
- Connector type 2x RJ45 8(4)
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel and frame
CAT 3
- Factory colour
Oyster white
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
1013
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294484 Rutenbeck IAE/UAE 2x8(4)TRSUp0 Network outlet Flush mount Insert with main panel and frame CAT 3 Oyster white
Description
ISDN connection unit for 2 terminals with switchable resistors, 2 x 4-pin, 4 screw contacts, with expanding claws, pearl white (similar to RAL 1013), 70 x 70 x 29 mm, 45 g.
