Rutenbeck Network outlet Flush mount Insert CAT 3
EAN:
Part number:
Item no:
Rutenbeck socket UAE 2x8(8)Up 0
Technical specifications
- Connection type: Screw
- Outlet direction: Oblique
- Fastening method: Screws
- Floor box/floor mounting: Yes
- Design-ready: Yes
- Suitable for number of sockets/couplings: 2
- Channel installation: Yes
- With sockets/couplings: Yes
- Mounting type shield connection: Screw
- Protection class: IP20
- Separate ground connection: Yes
- Connector type 2x RJ45 8(8)
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert
CAT 3
- No. of LAN ports
2 x
- Recess depth
2.9 cm
- Factory colour
White
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
1013
- Width
7 cm
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293486 Rutenbeck Network outlet Flush mount Insert CAT 3
Description

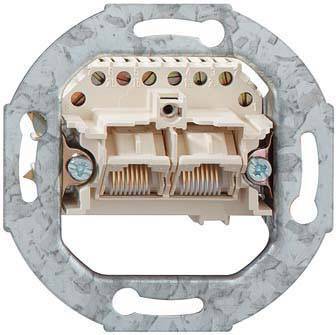

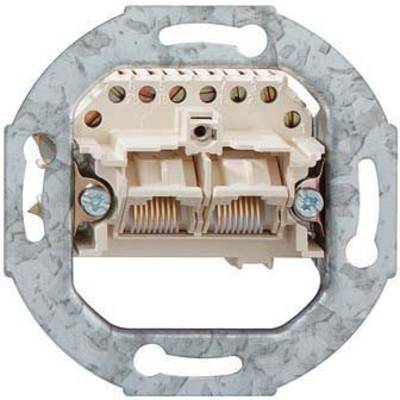

Universal connection unit for 2 terminals, 2 x 8-pin, 8 screw contacts, with expanding claws, pearl white (similar to RAL 1013), 70 x 70 x 29 mm, 45 g.
