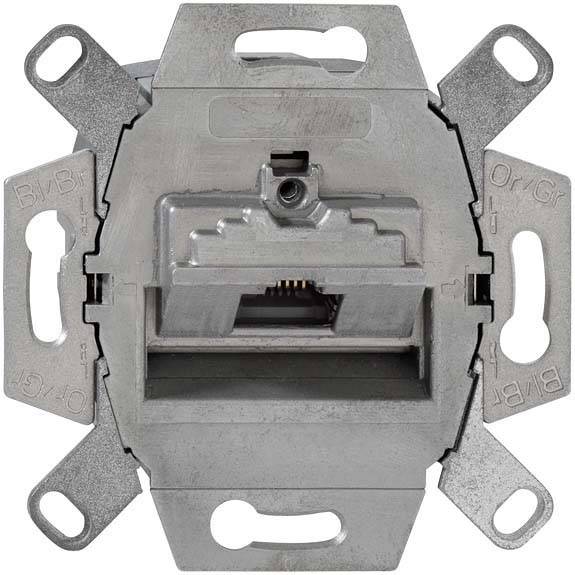

Rutenbeck Network outlet Flush mount Insert CAT 6A
EAN:
Part number:
Item no:
Rutenbeck connection socket Flex UAE-Cat. 6A iso-8Up0 136104030
Technical specifications
- Design: Flex
- Connection type: LSA
- Outlet direction: Oblique
- Fastening method: Screws
- Floor box/floor mounting: Yes
- Shielded sockets: Yes
- Design-ready: Yes
- Color coding: Yes
- Suitable for number of sockets/couplings: 1
- Casing shielded: Yes
- Height: 70 mm
- Channel installation: Yes
- Mechanical coding: Yes
- With sockets/couplings: Yes
- Mounting type shield connection: Screw
- Protection class: IP21
- Separate cable strain relief: Yes
- Separate ground connection: Yes
- Connector type RJ45 8(8)
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert
CAT 6A
- Factory colour
Multicolour
- Length
40 mm
- Width
70 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2298128 Rutenbeck Network outlet Flush mount Insert CAT 6A
Description
Cat.6A-iso junction boxes from Rutenbeck fully meet the currently highest transmission technical product requirements in accordance with ISO/IEC and thus meet the worldwide measurement requirements for the transmission links in combination with components of the same transmission characteristics. 8 contacts, 70 x 70 x 40 mm, 142 g
