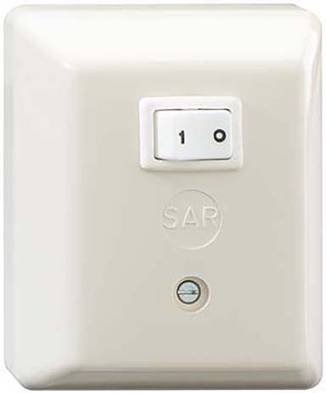

Rutenbeck SAR Ap Power-on relay
EAN:
Part number:
Item no:
Rutenbeck switching relay SAR AP
Technical specifications
- Mounting type: Surface-mounted
- Protection class IP20
- Halogen-free: Yes
- Product type
Power-on relay
- Dim
(W x H x D) 80 x 36 x 65 mm
- Width
80 mm
- Height
36 mm
- Depth
65 mm
- Switching voltage
230 V
- Switching current
8 A
- Supply voltage
230 V AC
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297035 Rutenbeck SAR Ap Power-on relay
Description
High current switching relays, for signaling via devices with their own power supply, e.g. 230 V horn or beacon light. For connection to the telephone line, switching capacity 8 A at 230 V (50 Hz with resistive load), control voltage 30-60 V/23-55 Hz, base and cap made of ABS, pearl white (similar to RAL 1013), 65 x 80 x 36 mm, 77 g, protection class IP 20 according to DIN EN 60 529
