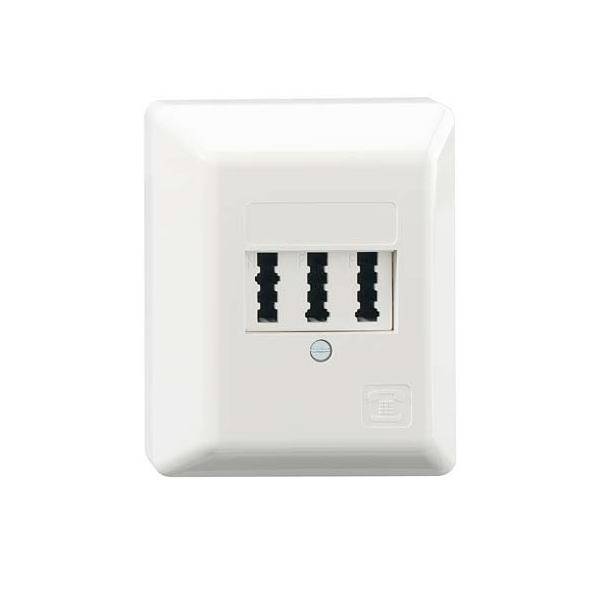

Rutenbeck Socket Surface-mount 2 ports White
EAN:
Part number:
Item no:
Rutenbeck connection socket TAE 2x6/6NFF AP RW
Technical specifications
- Product type
Socket
- Mounting type
Surface-mount
- Type
Surface-mount
- Factory colour
White
- Switch type function
TT83 phone socket
- Switch type component
Insert
- Similar RAL
9010
- Width
65 mm
- Port
2 ports
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751044 Rutenbeck Socket Surface-mount 2 ports White
Description
TAE junction box, NFF, surface-mounted, for 2 telephones and 1 additional devices, 3 x 6-pin, 2 x 6 screw contacts, pure white (similar to RAL 9010) contacts made from nickel silver or Brass, tin plated contact surfaces Nominal voltage: 125 V DC/AC Current load: Max. 10 VA Insulation resistance: Greater than 200 MO Contact resistance: Less than 20/30 mO Voltage resistance: 1000 V, 50 Hz, 1 min. Service life: Larger than 100,000 mating cycles metric screws for central piece matching TAE-design covers of the switching industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, and others)
