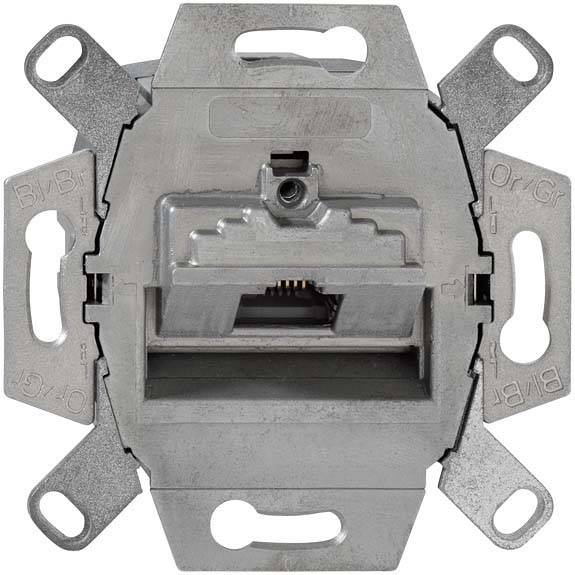

Rutenbeck UAE-ClassEA iso-8Up0 Network socket Screw fastening White
EAN:
Part number:
Item no:
Technical specifications
- Connection type: LSA
- Surface-mounted: no.
- Outlet direction: Oblique
- Floor box/floor mounting: Yes
- Shielded sockets: Yes
- Design-ready: Yes
- Color coding: Yes
- Suitable for number of sockets/couplings: 1
- Casing shielded: Yes
- Device width 70 mm
- Device height 70 mm
- Device depth 40 mm
- Channel installation: Yes
- With sockets/couplings: Yes
- With dust protection: no.
- With text field: Yes
- Mounting type shield connection: Screw
- Protection class (IP): IP21
- Separate cable strain relief: Yes
- Separate ground connection: Yes
- Connector type RJ45 8(8)
- Flush-mounted: Yes
- Product type
Network socket
- Mounting type
Screw fastening
- Factory colour
White
CAT 6
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296559 Rutenbeck UAE-ClassEA iso-8Up0 Network socket Screw fastening White
Description
ClassEA iso junction box, shielded; single-fold; for covers of electrical installation material manufacturers; snap-off bearing ring for bridge version; 70 x 70 x 40 mm; 142 g.
