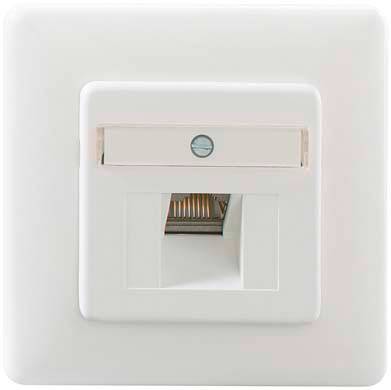

Rutenbeck UAE-ClassEA iso8Uprw Network outlet Flush mount Insert with main panel and frame White
EAN:
Part number:
Item no:
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel and frame
- No. of LAN ports
1 x
- Recess depth
41 mm
- Factory colour
White
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
1013
- Length
80 mm
- Width
80 mm
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751027 Rutenbeck UAE-ClassEA iso8Uprw Network outlet Flush mount Insert with main panel and frame White
Description
ClassEA ISO connection socket, shielded, 1-way, flush mounted, snap-off carrier ring for bridge version, pure white (similar to RAL 9010) for use in 10 Gigabit Ethernet networks (transmission bandwidth 500 MHz) Closed zinc die-cast housing variable cable inlet (+/-30°) 360° shielding and strain relief in one operation additional grounding possibility via flat plug connectors quick installation by LSA-contacts snap-off carrier ring for bar version latching quick-mounting cover RJ45-plug openings inclined downward color code T568A and T568B in accordance with TIA / EIA-568-B.2 suitable for Cat. 6 and Cat. 7 cables (Ø 6-10 mm) LSA-terminals for one conductor 0.4-0.63 mm Ø, AW 26-22, re-stocking greater than 50-times suitable for PoE++ / 4PPoE according to IEEE 802.3b UPOE-conforming HDBaseT-conforming to UAE-design covers in the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten etc.) according to the following standards: ISO/IEC 11 801, ClassEA, shielded DIN EN 50173-1, ClassEA, shielded ANSI TIA/EIA-568-C.2, ClassEA longer life than 750 mating cycles RJ11/12 fault-proof
