RZB 211344.002.3.19 Flat Basic HF-Sensor A60 Ceiling light (+ motion detector) Light bulb E-27 60 W White
EAN:
Part number:
Item no:
Highlights & Details

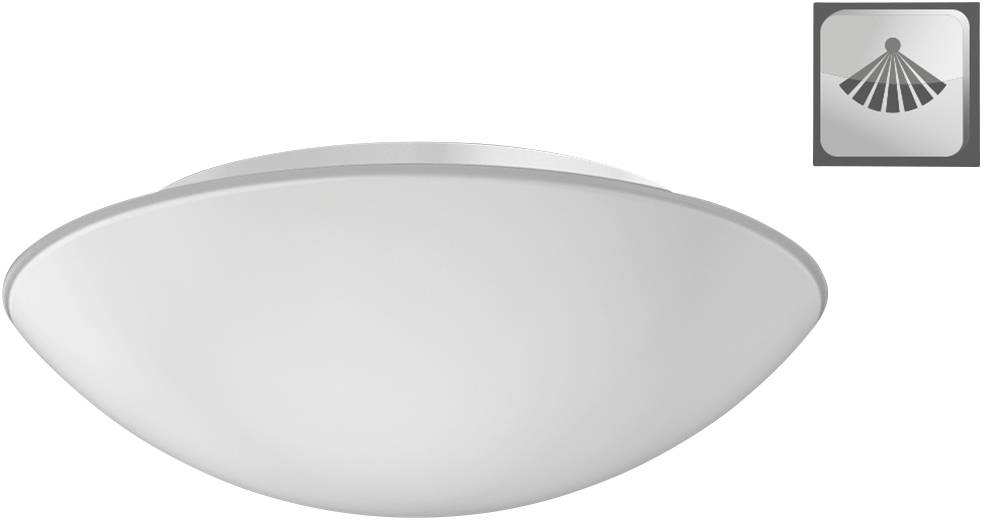

Wall ceiling lamp Flat Basic HF-Sensor A60
- Power= 60 W
- Total luminous flux= 470 lm
Technical specifications
- Dim
(Ø x H) 370 mm x 118 mm
- Type
Circular
- No. of bulbs
1
- Product type
Ceiling light (+ motion detector)
- Width
370 mm
- Bulb type
Light bulb
- Height
118 mm
E-27
- Rating per bulb
46 W
- Depth
118 mm
60 W
- (Ø)
370 mm
- PIR detection angle (horizontal)
120°
- Coverage max. (width)
10 m
- Adjustable on-time (min.)
10 s
- Adjustable on-time (max.)
30 min
- Light features
Incl. motion detector
- Protection class
I
- Factory colour
White
- Material
Plastic
n.rel.
- Light bulb included
Yes
- Total luminous flux
470 lm
470 lm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2234187 RZB 211344.002.3.19 Flat Basic HF-Sensor A60 Ceiling light (+ motion detector) Light bulb E-27 60 W White
Description
Features
- Very extensive ceilings, and wall light series for indoor use
- Three-layer opal glass (triplex glass) with mouth blown, semi-gloss finish
- Triplex glass provides particularly homogeneous, soft and glare-free light
- Many diameters from 200 to 630 mm
- Plastic holder
- Spring-system fastening
- Glass cover opal semi-gloss, Mouth-blown
- with HF motion detector
- IP43 ceiling mounting, IP44 wall mounting
- Motion detector parameters at a ceiling height of max.
- 4 m or wall mounting of max.
- 2, 7 m., HF detector 5, 8 GHz ISM frequency band, brightness levels: Daylight / 300 lux / 150 lux / twilight / darkness / learning, sensitivity / range 2 m, 10 m diameter (20%, 100%) adjustable, time control approx.
- 10 seconds to 30 minutes adjustable, detection range 120°, radiated power 5, 0 mW, switching power: 800 W (resistive load), 500 W (fluorescent lamp, LED), conditionally suitable for outdoor use due to sensitive reaction to all movements
Scope of delivery
- Wall ceiling lamp Flat Basic HF-Sensor A60
