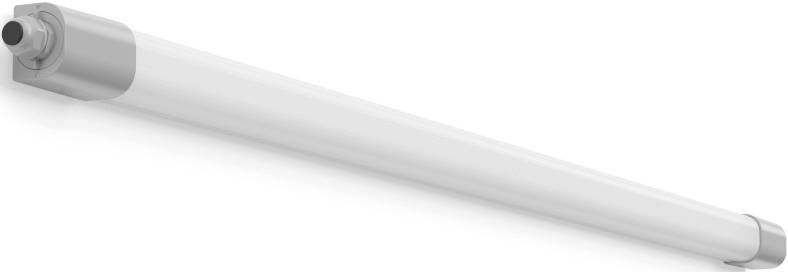

RZB 451243.009 LED wet room light LED (monochrome) 46 W Neutral white Grey
EAN:
Part number:
Item no:
Highlights & Details
RZB LED wet room light 840 451243,009
- Power= 46 W
- Total luminous flux= 6800 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Suitable for wall mounting: Yes
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for surface mounting: Yes
- Suitable for light band configuration: No.
- Suitable for clamp mounting: No.
- With mounting material: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Version: Other
- Housing material: Plastic
- Surface protection housing: Untreated
- Housing color: Grey
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current 129 - .141 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmable: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dimmer potentiometer (built-in): No.
- Dim. RF: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle: Free-radiation/diffuse
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Product according to 2019/2020/EU: Yes
- Lumen maintenance at medium. Service life 50,000 h at 25 °C surrounding temperature: 80 %
- Failure rate at medium. Service life 50,000 h at 25 ° C surrounding temperature (tq): 10%
- Protection class (IP), at front IP66
- Max. Number of lights per circuit breaker C10: 31
- Max. Number of lights per circuit breaker B16: 24
- Max. Number of lights per line circuit breaker C16: 49
- Protection class (NEMA): Other
- Impact strength: IK08
- Protection class according to IEC 61140:II
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: No.
- Emergency power supply system: Without
- Rated ambient temperature according to IEC 62722-2-1: -30..50°C.
- Suitable for emergency light: No.
- With switch: No.
- With presence detector: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Suitable for lamp power 31..46 W
- Light output 148..152 lm/W
- Max. System power 46 W
- Rated light current according to IEC 62722-2-1: 4700..6800 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.1
- Color Rendering Index CRI: 80-89
- Power factor 0.97
- Strobe effect value SVM: 0.05
- Constant luminous flux regulation: No.
- Width 62 mm
- Height/depth 50 mm
- Length: 1699 mm
- Type of wiring: Suitable for through-wiring
- Number of pins: 4
- Conductor cross-section: 2.5 mm²
- Connection type: Plug-in terminal
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 25
- Adjustable color temperature: No.
- Luminous flux can be set: Stages
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Ball-resistant as per DIN 18032-3: No.
- Product type
LED wet room light
- Operating voltage
220 V
240
- Bulb type
LED (monochrome)
- Length
1699 mm
46 W
- Width
62 mm
4000 K
- Colour
Neutral white
- Total luminous flux
6800 lm
IP66
- Factory colour
Grey
- Material
Plastic
- Dim
(L x W) 1699 mm x 62 mm
n.rel.
- Colour temperature range
4000 K
- Depth
50 mm
- Nominal current
129 mA
141 mA
- Number of pins
4
- LEDs
1
- Protection class
II
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795828 RZB 451243.009 LED wet room light LED (monochrome) 46 W Neutral white Grey
Description
Wet room lamp with a slim and flat housing shape. Side parts plastic (polycarbonate) gray, impact-resistant. Diffuser made of plastic (polycarbonate) optional, impact-resistant. Diffusor, inner-prismatic and UV-resistant. Light distribution symmetric. Homogeneous illumination. Back light proportion for brightening the ceiling. Flexible installation by sliding mounting bracket. Ideal for lamp replacement. Ceiling mounting bracket made of stainless steel and triangle bracket for pendant mounting included in delivery. Light with integrated 4-pin through wiring for joining other lamps. Comfortable cable entry via screwed cable glands. Easy installation thanks to removable plug connector and screw closure on both sides. Exchangeable and removable LED-unit with integrated operating device. Multilumens: Adjustable light current in 2 steps. Preset at the factory to the highest luminous flux. Limited surface temperature lamp in accordance with DIN EN 60598-2-24 for use in an environment where conductive dust can be expected to be deposited on the lamp. Approved for use in the food and beverage industry.
