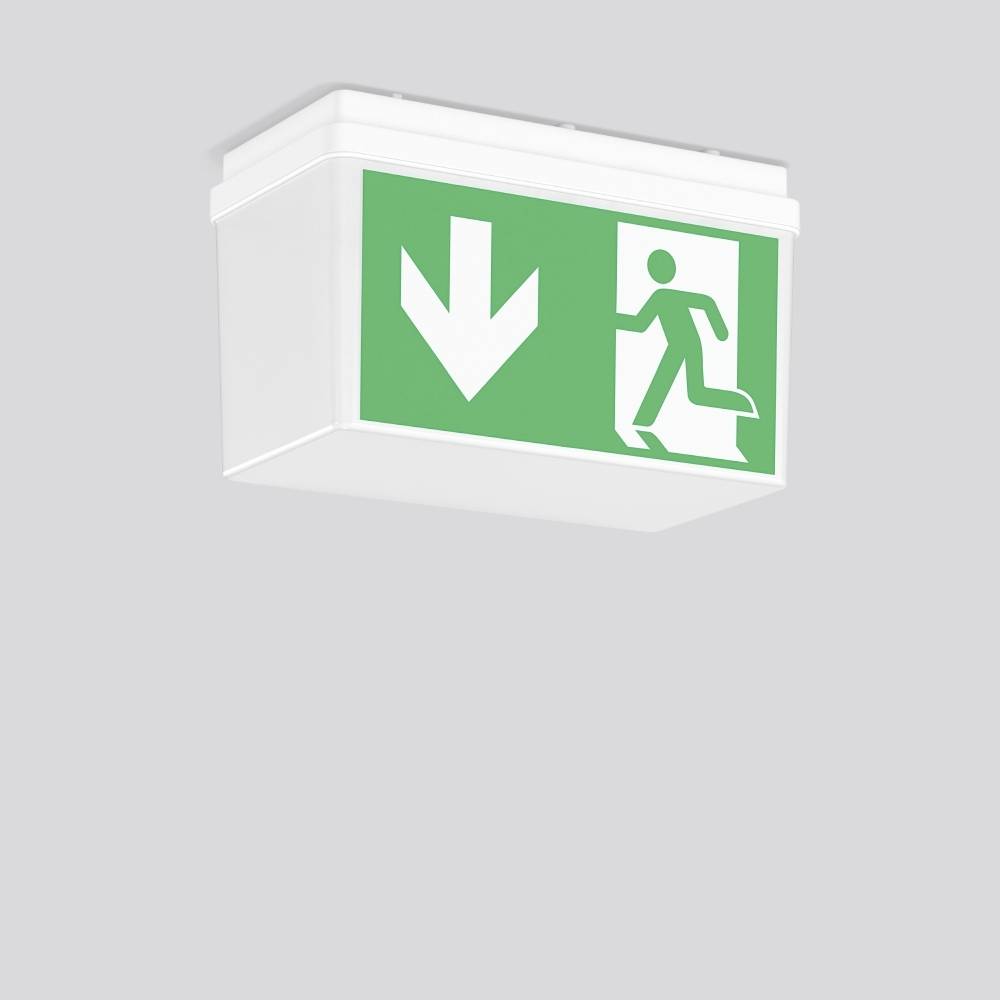

RZB 652520.002 LED escape route lighting
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Wall mounting/ceiling mounting
- Function: Rescue path marking
- With pictogram: Yes
- Suitable for standby circuit: No.
- Suitable for continuous switching: Yes
- With remote switch connection: No.
- With remote control: No.
- Emergency monitoring system: Automatic self-test
- Emergency power supply system: Decentralized (single battery)
- Lithium-ion rechargeable battery technology
- Type of Lithium-Inone Battery: Lithium-Iron-Phosphate (LiFePO4)
- With heating element for rechargeable battery: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Socket: Without
- Number of lamp heads: 1
- Housing color: White
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current 13 - .15 mA
- Operating device:EVG
- Removable operating device: Yes
- Max. Number of lights per circuit breaker B16: 40
- Max. Number of lights per line circuit breaker C16: 40
- Constant luminous flux regulation: No.
- Protection class (IP) IP54
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class according to IEC 61140:II
- Lamp with limited surface temperature ""D-sign"" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1: 5..30 °C.
- Luminous flux during emergency operation: 210 lm
- Rated light current according to IEC 62722-2-1: 220 lm
- Max. System power 3.2 W
- Luminous flux in standby mode: 0 lm
- Colour temperature: 4000 K
- Detection range 21 m
- Nominal operation time 1..8 h
- Width 126 mm
- Height/depth 147 mm
- Length: 241 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 3
- Conductor cross-section: 1.5 mm²
- Connection type: Plug connection
- Dim
(L x W) 241 mm x 126 mm
- Product type
LED escape route lighting
- Operating voltage
220 V
240
- Weight
610.00
3.2 W
- Bulb type
LED (monochrome)
- Number of pins
3
- Width
126 mm
- Depth
147 mm
IP54
- Protection class
II
- Factory colour
White
- Length
241 mm
- Colour
Neutral white
- Mounting type
Wall
Ceiling
- Nominal current
13 mA
15 mA
- Total luminous flux
220 lm
- LEDs
1
4000 K
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795724 RZB 652520.002 LED escape route lighting
Description
Lamp for escape route designation Fitting plastic diffuser plastic opal 4 foils for escape route marking enclosed (according to ISO 7010). Suitable for ceiling mounting, wall mounting. Can also be used as pendant light with accessories. Integrated operating devices. Individual battery system with automatic self-test. Smart+IP: NFC interface for easy and fast wireless configuration of operating parameters. The lamp can be easily adjusted without any voltage using the Smart+IP APP via NFC even before installation. Ex-works: 3 h, permanent switch, automatic self-test pre-set. Control via Android device, free APP available for download.
