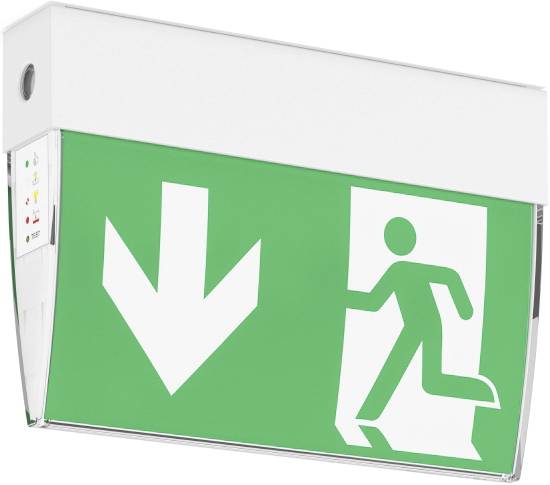

RZB 672400.002 LED escape route lighting
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Wall mounting/ceiling mounting
- Function: Rescue path marking
- Suitable for type of labeling: Insert sheet/sheet
- With pictogram: Yes
- Suitable for standby circuit: No.
- Suitable for continuous switching: Yes
- With remote switch connection: No.
- With remote control: No.
- Emergency monitoring system: Automatic self-test
- Emergency power supply system: Decentralized (single battery)
- Lithium-ion rechargeable battery technology
- Type of lithium-ion battery: Other
- With heating element for rechargeable battery: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Socket: Without
- Number of lamp heads: 1
- Housing material: Plastic
- Housing color: White
- Cover material: Transparent plastic
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current 17 - .19 mA
- Operating device:EVG
- Removable operating device: No.
- Light distributor: Without
- Constant luminous flux regulation: No.
- Protection class (IP) IP54
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class according to IEC 61140:II
- Lamp with limited surface temperature ""D-sign"" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1: 5..30 °C.
- Luminous flux during emergency operation: 8 lm
- Rated light current according to IEC 62722-2-1: 60 lm
- Max. System power 4.1 W
- Luminous flux in standby mode: 0 lm
- Colour temperature: 4000 K
- Detection range 24 m
- Nominal operation time 3 h
- Width 48 mm
- Height/depth 177 mm
- Length: 255 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 2
- Conductor cross-section: 1.5 mm²
- Connection type: Plug connection
- Dim
(L x W) 255 mm x 48 mm
- Product type
LED escape route lighting
- Operating voltage
220 V
240
- Weight
870.00
4.1 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Number of pins
2
- Width
48 mm
- Depth
177 mm
IP54
- Protection class
II
- Factory colour
White
- Length
255 mm
- Colour
Neutral white
- Mounting type
Wall
Ceiling
- Nominal current
17 mA
19 mA
- Total luminous flux
60 lm
- LEDs
1
4000 K
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795722 RZB 672400.002 LED escape route lighting
Description
Single battery-safety lights for escape-route marking housing plastic (polycarbonate), impact-resistant. 4 rescue signs films and 1 white film is enclosed for insertion in the transparent cover. Mounting bracket for wall mounting and two sealing screws included. Individual battery system with automatic self-test.
