RZB Toledo Flat LED/5W-3000K D14 901451.002 LED recessed panel LED (monochrome) w/o 5 W White
EAN:
Part number:
Item no:
Highlights & Details

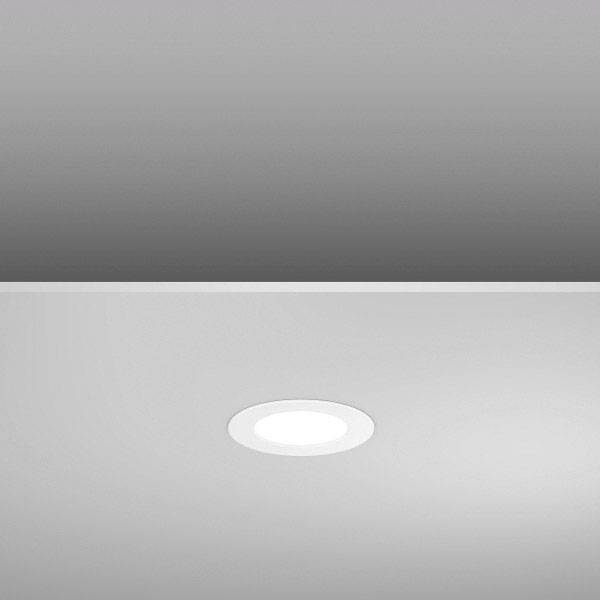

Panel-mounted downlight Toledo Flat LED/5W-3000K D14
- Power= 5 W
- Total luminous flux= 390 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Product type
LED recessed panel
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
5 W
5 W
- Light features
Incl. ballast
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 148 mm x 2 mm
n.rel.
No
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
390 lm
470 lm
- Height
2 mm
- Depth
2 mm
- (Ø)
148 mm
IP40
- Protection class
II
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2234305 RZB Toledo Flat LED/5W-3000K D14 901451.002 LED recessed panel LED (monochrome) w/o 5 W White
Description
Features
- Super flat LED built-in downlight
- LightGuide and diffuser made of yellow-free PMMA
- Very low installation depth
- LED life 50,000 h (L70, B10)
- Color reproduction Ra 80
- Color tolerance: 4-way Macadam (4 SDCM)
- Dynamically adjustable tunable white versions from 2700 K to 6500 K
- Versions with smart+free Bluetooth control for wireless networking and operation via Android/iOS device, free app available for download
- Simple spring mounting for tool-free installation
- Suitable for direct cover with heat insulation material (Not applicable for diameter D 495 mm)
- Separate converter box via plug connection
- DALI converter can be connected to the same voltage, suitable for central emergency power supply
- Attachment casing as accessory for all sizes
- Decor cylinder made of chintz fabric to be retrofitted as accessory, optionally with polycarbonate cover plate satined
- Application areas: Hall, adjoining rooms, hotel, restaurant, meeting rooms, Private area
- Powder-coated aluminum die-cast housing
- LightGuide and plastic cover made of yellow-free plastic (PMMA)
- Plastic cover opal matt
- Ceiling mounting with spring system
- Installation depth depending on the cover thickness
- Operating device (LED converter) external via plug connection
- With light-to-LED converter 250 mm
- Lamp (LED) included in delivery
Scope of delivery
- Panel-mounted downlight Toledo Flat LED/5W-3000K D14
