Safety relay 8382.6730.EL Motrona Operating voltage: 24 V DC 3 makers, 1 breaker Manual/auto reset 1 pc(s)
Part number:
Item no:
Packaging type
Piece
Product type
Safety relay
Operating voltage
24 V DC
Type
8382.6730.EL
Response time
50 ms
Datasheet (PDF)
Technical specifications
- Housing – Mounting: On 35 mm DIN rail
- Housing – weight: Approx. 150 g
- Power supply – at nominal voltage 2.6 W.
- Power supply – Starting current A1: 5 A (approx. 250 µs) Filter time Switch-off test pulses /
- (A1 / S12 / S14) – Dark test: Max. 3 ms (test pulse width) / 500 ms (test pulse rate) Switch-on test pulses /
- (A1 / S12 / S14) - Light Test: Max. 1 ms (test pulse width) / 500 ms (test pulse rate)
- (A1 / S12 / S14) – Note: It must be ensured that any switching-on pulses (light test) sent by the signal transmitter do not result in the short-term response of the safety relay and should therefore always be deactivated.
- Switching power – AC 250 V, 2000 VA, 8 A resistive load safety contacts 250 V, 3 A for AC-15 250 V, 500 VA, 2 A resistive load
- Switching capacity (13-14, 23-24, 33-34) DC: 30 V, 240 W, 8 A for resistive load 6 switching operations / min. 24 V, 3 A for DC-13 thermal sum current I Max. 5 A per contact (see total current limit curve) th
- Switching power – signal contacts (41-42) DC: 30 V, 60 W, 2 A for resistive load
- Switching capacity – minimum contact load 5 V, 10 mA
- Contact protection - normally open contact: 10 A gG
- Contact protection - NC contact: 6 A gG
- Contact protection – switch-on delay: < 50 ms
- Switch off delay – control via: A1 < 40 ms; S12 or S13/S14 < 20 ms
- Switch-off delay – standby time: < 500 ms
- Switch-off delay – Power cross-section 0.14 - 2.5 mm2
- Tightening torque - min: 0.5 Nm
- Tightening torque - Max: 0.6 Nm
- Tightening torque - Contact material: AgSnO 2
- Tightening torque - contact life: Mechanical. approx. 1 x 107
- Tightening torque - test voltage: 2.5 kV (control voltage / contacts) Rated surge resistance,
- Tightening torque - rated insulation voltage: 250 V Degree of pollution /
- Ambient temperature – operating height: ≤ 2,000 m (above sea level)
- Packaging type
Piece
- Product type
Safety relay
- Type
8382.6730.EL
- Operating voltage
24 V DC
- Response time
50 ms
- Contact type
3 makers
1 breaker
- Switching voltage (max.)
250 V AC
- Max. switching capacity
2000 VA
240 W
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Features
Manual/auto reset
IP20
- Operating temperature (min.)
-15 °C
- Operating temperature (max.)
55 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805211 Safety relay 8382.6730.EL Motrona Operating voltage: 24 V DC 3 makers, 1 breaker Manual/auto reset 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805211 Safety relay 8382.6730.EL Motrona Operating voltage: 24 V DC 3 makers, 1 breaker Manual/auto reset 1 pc(s)
Description

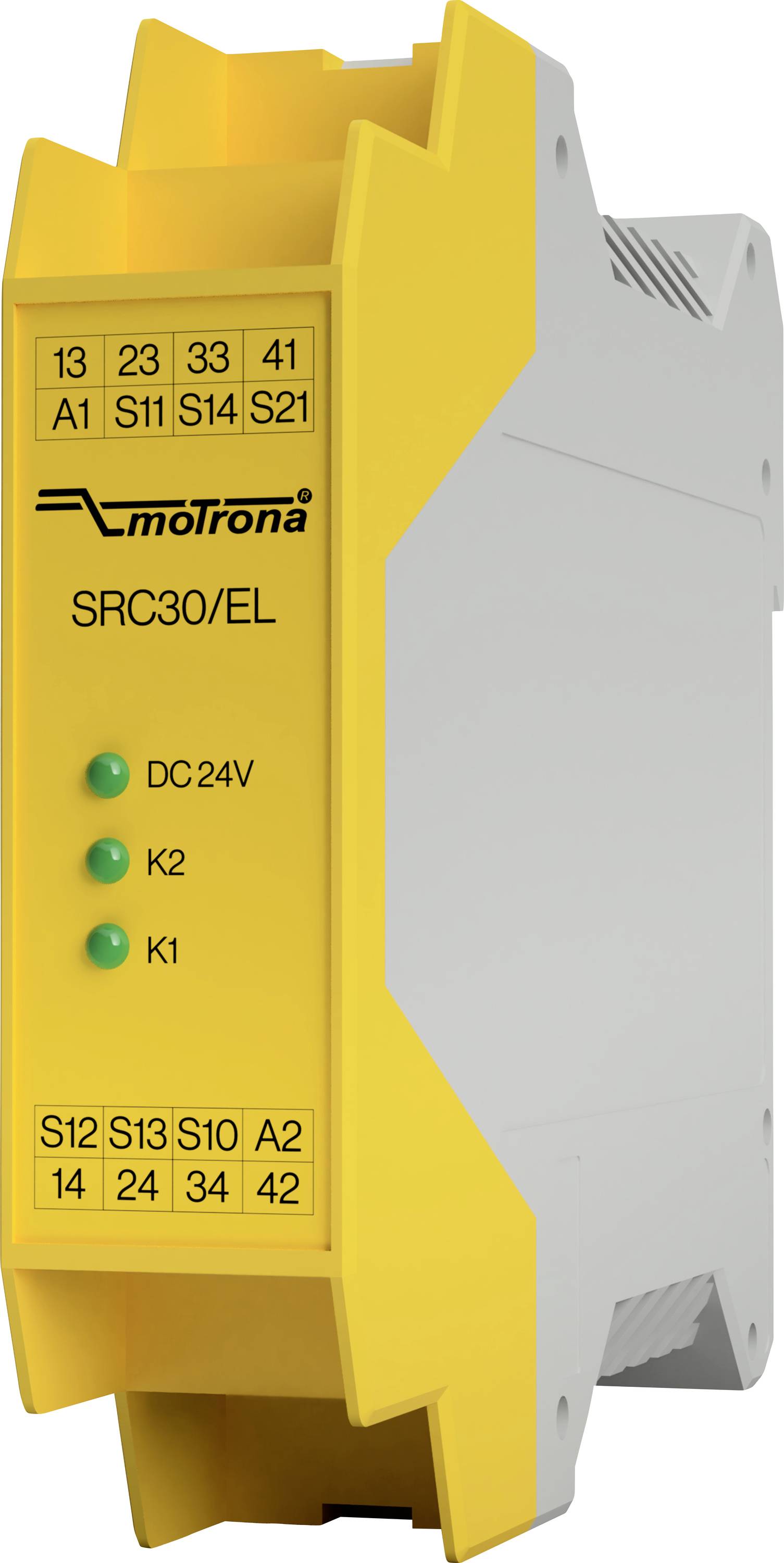

The safety relay ensures high protection through three integrated safety relays and is compatible with different encoder types. Thanks to the certifications according to EN 81-20 and EN 81-50 it is suitable Ideal for use in elevator systems as well as for monitoring the grilles on machines and systems. Its compact design makes it easy to integrate into existing control cabinets, while LED status indicators support simple diagnostics and commissioning. The flexible evaluation of different signal sources makes the safety relay an economical and versatile solution for applications with increased safety requirements.
This text is machine translated.
This text is machine translated.
Features
- 3 instantaneous safety contacts
- 1 instantaneous signal contact
- Connection of: Emergency stop button, mechanical safety switch, non-contact safety switches, safety components with OSSD outputs
- Single or dual channel operation
- Feedback circuit for monitoring downstream contactors or expansion modules
- Cyclic monitoring of the output contacts
- Display of switching state and mains via LED
- Automatic or manual start
- Cross-circuit and ground fault monitoring
- Use up to SIL3/PLe, category 4
- (EN ISO 13849-1 / EN IEC 62061 / EN 61508)
Scope of delivery
- User manual
