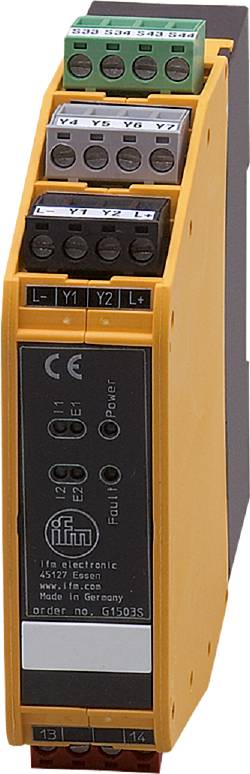

Safety relay G1503S ifm Electronic (W x H x D) 100 x 25 x 105 mm Auto reset 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Safety relay
Type
G1503S
Features
Auto reset
IP rating
IP20
Datasheet (PDF)
Highlights & Details
Ifm G1503S safety relay
- Safety switchgear with a cross-circuit detection and possible simultaneous monitoring
- Mechanical safety switches and electronic safety sensors can be connected
- Switching device for two-hand circuits with mechanical or electronic switching sensors
- Selectable monitored or automatic start can be set
Technical specifications
- Dimensions [mm] 100 x 25 x 105
- Ambient temperature-1 [°C]: -25...55
- Weight [g]: 287,100
- Test mark (special cases): CCC
- Protection class IP 20
- Packaging type
Single
- Product type
Safety relay
- Type
G1503S
- Features
Auto reset
IP20
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
55 °C
- Depth
105 mm
- Width
100 mm
- Height
25 mm
- Dim
(W x H x D) 100 x 25 x 105 mm
- Content
1 pc(s)
- Max. temperature
55 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320122 Safety relay G1503S ifm Electronic (W x H x D) 100 x 25 x 105 mm Auto reset 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320122 Safety relay G1503S ifm Electronic (W x H x D) 100 x 25 x 105 mm Auto reset 1 pc(s)
Description
Ifm G1503S safety relay
