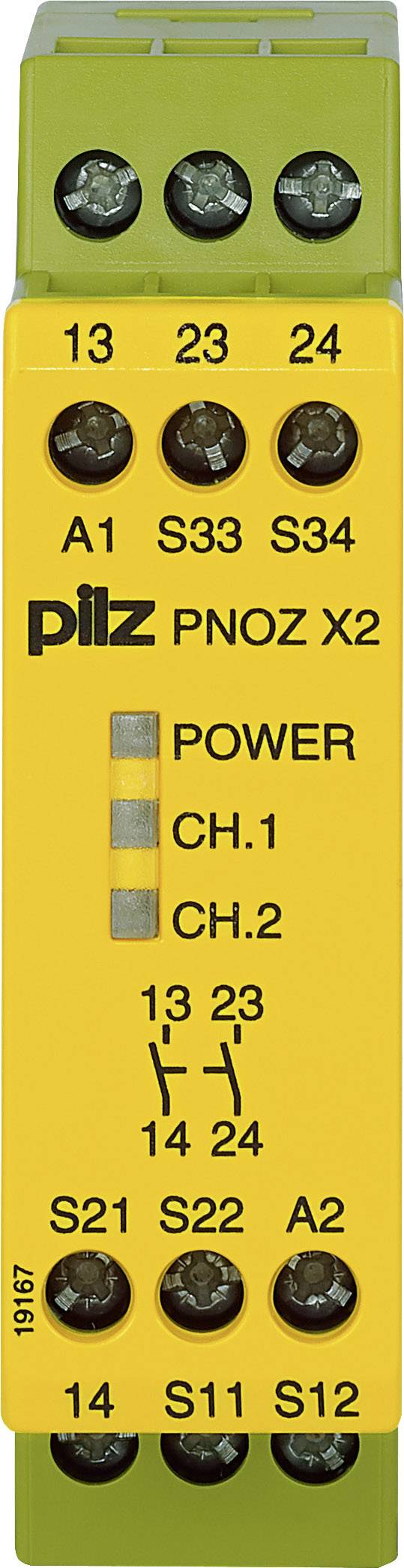

Safety relay PNOZ X2 24VAC/DC 2n/o PILZ Operating voltage: 24 V DC/AC 2 makers (W x H x D) 22.5 x 87 x 121 mm 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety relay
Connector
Screw terminals
Operating voltage
24 V DC/AC
Type
PNOZ X2 24VAC/DC 2n/o
Datasheet (PDF)
Technical specifications
- Application possibilities: Emergency stop monitoring without delay, limit switch, protective door monitor
- Terminal type: Fixed
- Operating modes: Single-channel, two-channel, cross-circuit detection, manual start with overspeed
- Standards: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of safety contacts undelayed: 2
- Number of safety contacts delayed: 0
- Product standard: EN 60947-5-1
- Number of semiconductor outputs: 0
- Stop category:
- 0 Max. Current at AC15: 5.0 A.
- Packaging type
Piece
- Product type
Safety relay
- Type
PNOZ X2 24VAC/DC 2n/o
- Connector
Screw terminals
- Operating voltage
24 V DC/AC
- Min. operating voltage
24 V DC/AC
- Max. operating voltage
240 V DC/AC
- Operating voltage
24 - 240 V DC/AC
- Contact type
2 makers
- Switching voltage (max.)
240 V AC
- Switching current (max.)
4.0 A
- Operating temperature (min.)
-10 °C
- Operating temperature (max.)
+55 °C
- Depth
121 mm
- Width
22.5 mm
- Height
87 mm
- Dim
(W x H x D) 22.5 x 87 x 121 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2182876 Safety relay PNOZ X2 24VAC/DC 2n/o PILZ Operating voltage: 24 V DC/AC 2 makers (W x H x D) 22.5 x 87 x 121 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2182876 Safety relay PNOZ X2 24VAC/DC 2n/o PILZ Operating voltage: 24 V DC/AC 2 makers (W x H x D) 22.5 x 87 x 121 mm 1 pc(s)
Conformity certificate
Conformity certificate 2182876 Safety relay PNOZ X2 24VAC/DC 2n/o PILZ Operating voltage: 24 V DC/AC 2 makers (W x H x D) 22.5 x 87 x 121 mm 1 pc(s)
Description
Our safety switching devices PNOZ X have proven their reliability and robustness. They are used in a wide range of applications and in a wide variety of safety applications. You use a PNOZ X for each safety function. The technical basis here are potential-free, electromechanical contacts in the 2-relay technology. The sizes vary from 22.5 to 90 mm, the number of contacts from two to eight. Whatever your security requirements, PNOZ X has already proven itself millions of times in the tough industrial environment.
This text is machine translated.
This text is machine translated.
