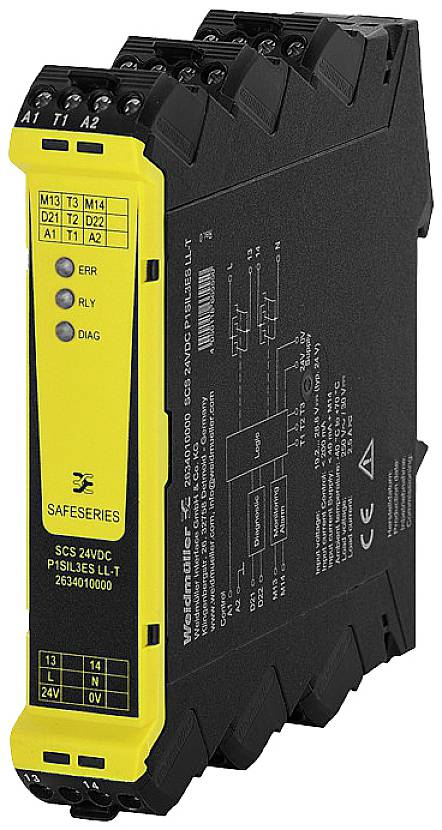

Safety relay SCS 24VDC P1SIL3ES LL-T Weidmüller Operating voltage: 24 V DC 1 breaker (W x H x D) 22.5 x 113.6 x 119.2 mm
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety relay
Connector
Screw-fit
Operating voltage
24 V DC
Type
SCS 24VDC P1SIL3ES LL-T
Technical specifications
- Design: Basic unitNumber of outputs, signaling function, instantaneous, contact-afflicted: 1Number of outputs, safety-related, instantaneous, contact-related: 1Suitable for monitoring valves: YesWith feedback circuit: YesWith start input: YesWith removable terminals: YesRail mounting possible: Yes
- Packaging type
Piece
- Product type
Safety relay
- Type
SCS 24VDC P1SIL3ES LL-T
- Connector
Screw-fit
- Operating voltage
24 V DC
- Min. operating voltage
19.6 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
19.6 - 28.8 V DC
- Contact type
1 breaker
- Switching current (max.)
2.5 A
- Safety integrity level
SIL 3
- Safety rating
3
- Certification (sensors)
TÜV
UL
IP20
- Depth
119.2 mm
- Width
22.5 mm
- Height
113.6 mm
- Dim
(W x H x D) 22.5 x 113.6 x 119.2 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2539394 Safety relay SCS 24VDC P1SIL3ES LL-T Weidmüller Operating voltage: 24 V DC 1 breaker (W x H x D) 22.5 x 113.6 x 119.2 mm
Description
Safety relay 2634010000
