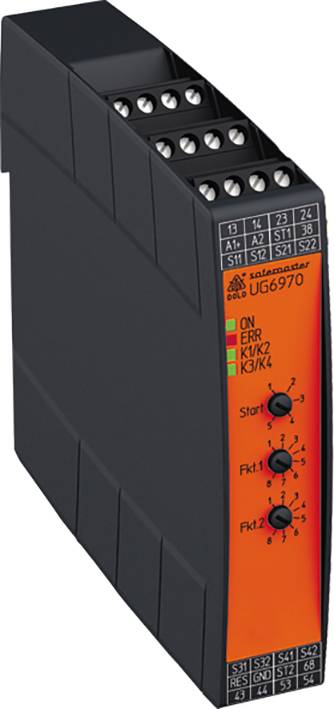

Safety relay UG6970.04PS/61 DC24V Dold Operating voltage: 24 V DC 4 makers (W x H x D) 22.5 x 110 x 120.3 mm LED indicat
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety relay
Connector
Screw terminals (push-fit)
Operating voltage
24 V DC
Type
UG6970.04PS/61 DC24V
Datasheet (PDF)
Highlights & Details
- 2 NO contacts per safety function
Technical specifications
- Two independant safety functions can be set
- Light grid, emergency stop, switching mat, protective door, two-hand
- Input
- NOMINAL VOLTAGE UN: 24 V DC
- Voltage range: 0.8 ... 1.1 UN.
- Nominal consumption: Type. 3.2 W
- Protection of the device: Internal with PTC
- Overvoltage protection: Internal by VDR
- Switch-on duration ON button: 0.1 s < Tin < 3 s.
- Switch-on duration of reset button > : 3 s.
- Safety function
- Switching mat/switch strip (4)
- Max. Permissible
- Circuit board contact resistance: 1000 Ω
- Switching current in case of short circuit: Type. 15 mA at UN.
- Light barrier (8)
- Control current via S12, S22
- Or S32, S42: Type. 8 mA at UN.
- Minimum voltage at terminals
- S12, S22 OR S32, S42
- When the device is activated: DC 10 V.
- Contact configuration: 2 NO contacts per safety function
- Operating temperature range: - 25 ... +60 °C
- Packaging type
Piece
- Product type
Safety relay
- Type
UG6970.04PS/61 DC24V
- Connector
Screw terminals (push-fit)
- Operating voltage
24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Contact type
4 makers
- Switching voltage (max.)
230 V AC
- Switching current (max.)
8 A
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Features
LED indicator
IP20
IP40
- Operating temperature (max.)
60 °C
- Depth
120.3 mm
- Width
22.5 mm
- Height
110 mm
- Dim
(W x H x D) 22.5 x 110 x 120.3 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359203 Safety relay UG6970.04PS/61 DC24V Dold Operating voltage: 24 V DC 4 makers (W x H x D) 22.5 x 110 x 120.3 mm LED indicat
User & Safety Instructions
User & Safety Instructions 2359203 Safety relay UG6970.04PS/61 DC24V Dold Operating voltage: 24 V DC 4 makers (W x H x D) 22.5 x 110 x 120.3 mm LED indicat
Description
The multifunctional safety module UG 6970 is used to protect persons and machines by enabling and interrupting a safety circuit in a safety-related way. It is used together with emergency stop buttons, protective doors, light barriers with self-test (type 4) according to IEC/EN 61 496-1, two-hand switches for metal pressing, as well as working machines with dangerous closing movements (type III C according to EN 574) and safety-related switching mats, switching strips and tape switches. Simply with rotary switch, two safety functions independant of each other can be set on the UG 6970. This reduces the variety of devices in the warehouse and facilitates their disposition.
· Corresponds to
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · According to IEC/EN 62061
Safety Integrity Level (SIL) 3 · According to IEC/EN 61508 and IEC/EN 61511
· According to EN 50156-1 for combustion plants
· Line-end detection on the on-button
· Activation via a button or automatic on-function
· With or without cross-circuit detection
· 2-channel design
· Positively driven output contacts
· Output: 2 NO contacts per safety function
· 1 semiconductor signal output per safety function
· LED displays operating voltage, safety function 1, 2 and error
· Installation width 22.5 mm.
This text is machine translated.
· Corresponds to
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · According to IEC/EN 62061
Safety Integrity Level (SIL) 3 · According to IEC/EN 61508 and IEC/EN 61511
· According to EN 50156-1 for combustion plants
· Line-end detection on the on-button
· Activation via a button or automatic on-function
· With or without cross-circuit detection
· 2-channel design
· Positively driven output contacts
· Output: 2 NO contacts per safety function
· 1 semiconductor signal output per safety function
· LED displays operating voltage, safety function 1, 2 and error
· Installation width 22.5 mm.
