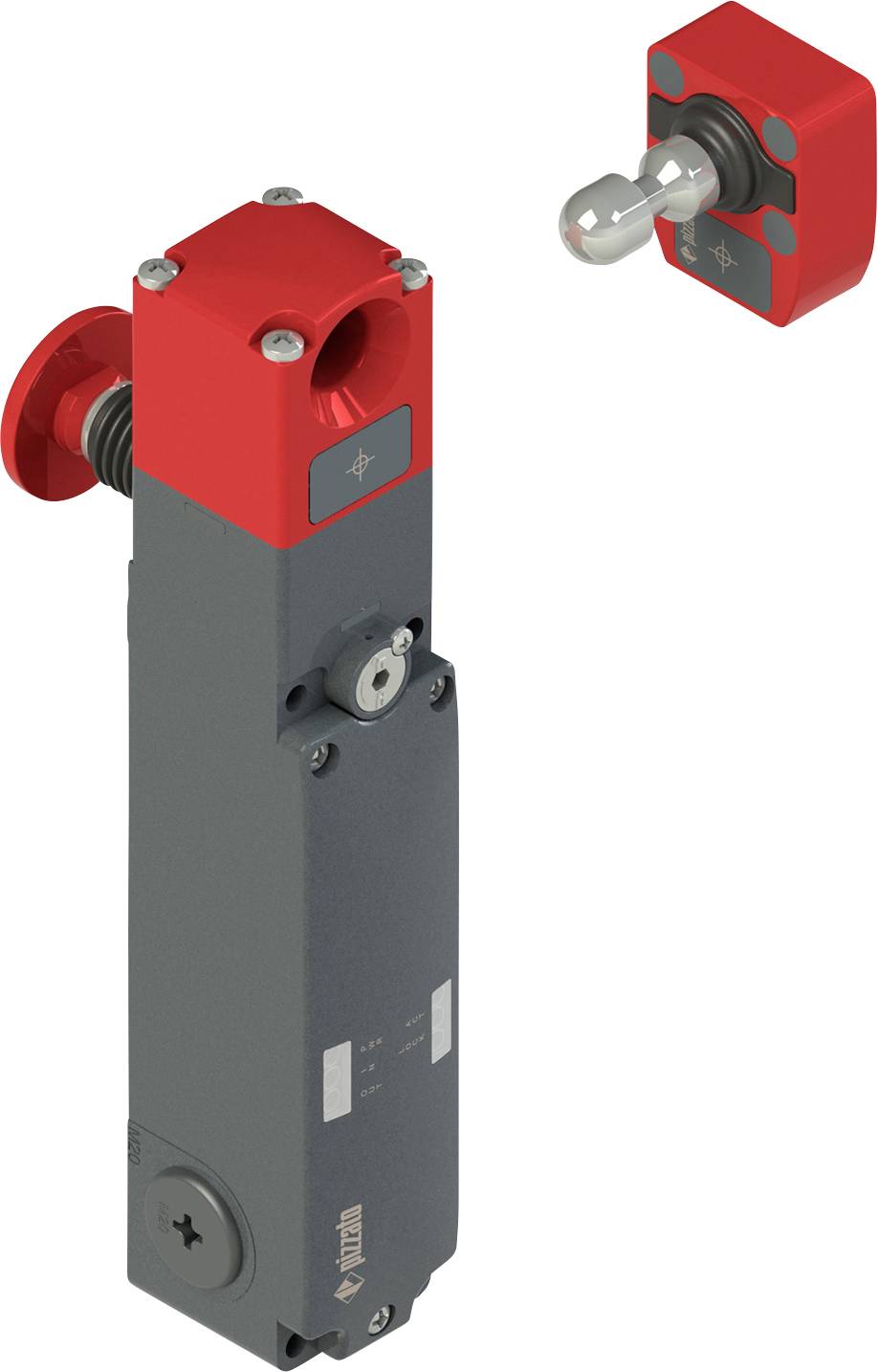

Safety switch NG 2D7D411A Pizzato Elettrica Operating voltage: 24 V DC (W x H x D) 40.4 x 233.5 x 49 mm 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety switch
Connector
Spring force connector
Operating voltage
24 V DC
Type
NG 2D7D411A
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Safety switch
- Type
NG 2D7D411A
- Connector
Spring force connector
- Operating voltage
24 V DC
- Min. operating voltage
21.6 V
- Max. operating voltage
26.4 V
- Operating voltage
21.6 - 26.4 V
- Switching voltage (max.)
24 V DC
- Switching current (max.)
0.25 A
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Certification (sensors)
CE
cULus
TÜV
IP67
IP69K
- Operating temperature (min.)
-20 °C
- Operating temperature (max.)
50 °C
- Depth
49 mm
- Width
40.4 mm
- Height
233.5 mm
- Dim
(W x H x D) 40.4 x 233.5 x 49 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Nominal voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 3737372 Safety switch NG 2D7D411A Pizzato Elettrica Operating voltage: 24 V DC (W x H x D) 40.4 x 233.5 x 49 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3737372 Safety switch NG 2D7D411A Pizzato Elettrica Operating voltage: 24 V DC (W x H x D) 40.4 x 233.5 x 49 mm 1 pc(s)
Description
General Functions
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
Cover configuration:
No device
Case:
Metal housing, three cable entries with M20X1,5 thread
Header:
Non-separable swivel head, with anti-panic release button
Method of operation:
D principle, locked actuator with excited electromagnet
Inputs and outputs:
2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signaling output for integrated actuator O3,
1 Signal output for locked actuator O4,
Inputs I4 or IE1-IE2 for activating the electromagnet,
1 Input I3 for programming actuator / reset
Activation of safe OS outputs:
Mode 1: Safety outputs active with inserted and locked actuator
Actuator:
Without actuator
Type of connection:
Without connector
This text is machine translated.
