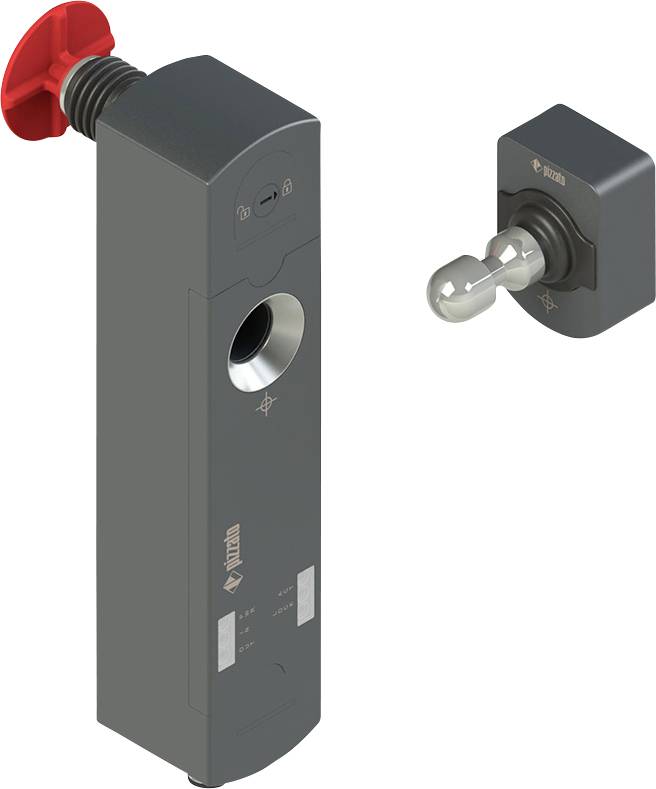

Safety switch NS D4CE1SMK-F41 Pizzato Elettrica Operating voltage: 24 V DC (W x H x D) 40 x 174 x 46.5 mm Incl. enclosur
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety switch
Connector
M12 (12-pin)
Cable
Operating voltage
24 V DC
Type
NS D4CE1SMK-F41
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Safety switch
- Type
NS D4CE1SMK-F41
- Connector
M12 (12-pin)
Cable
- Operating voltage
24 V DC
- Min. operating voltage
21.6 V
- Max. operating voltage
26.4 V
- Operating voltage
21.6 - 26.4 V
- Switching voltage (max.)
24 V DC
- Switching current (max.)
0.25 A
- Max. switching capacity
6 W
- Features
Incl. enclosure
IP67
IP69K
- Operating temperature (min.)
-20 °C
- Operating temperature (max.)
50 °C
- Depth
46.5 mm
- Width
40 mm
- Height
174 mm
- Dim
(W x H x D) 40 x 174 x 46.5 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Nominal voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 3737357 Safety switch NS D4CE1SMK-F41 Pizzato Elettrica Operating voltage: 24 V DC (W x H x D) 40 x 174 x 46.5 mm Incl. enclosur
User & Safety Instructions
User & Safety Instructions 3737357 Safety switch NS D4CE1SMK-F41 Pizzato Elettrica Operating voltage: 24 V DC (W x H x D) 40 x 174 x 46.5 mm Incl. enclosur
Description
General Functions
Actuator: With universal actuator on Hohem level coding VN NS-F41
Housing: Techno polymer housing
Method of operation:
D principle, locked actuator with excited electromagnet
Mode 1: OS safety outputs active when the protective device is locked
Inputs and outputs:
2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signaling output for integrated actuator O3,
1 Signal output for locked actuator O4,
2 activation inputs electromagnetic IE1-IE2,
1 Programming / Reset input I3
Adjustable auxiliary release:
Front-side auxiliary release button by screwdriver and rear escape route lock button
Orientation of the connectors:
Cable or connector at bottom
Type of connection:
M12 plug connector, 12-pin
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
Key configuration:
No device
This text is machine translated.
