Name: Samsung INR18650-25RM Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2500 mAh 1 pc(s)
Brand: Samsung
SKU: 3768025

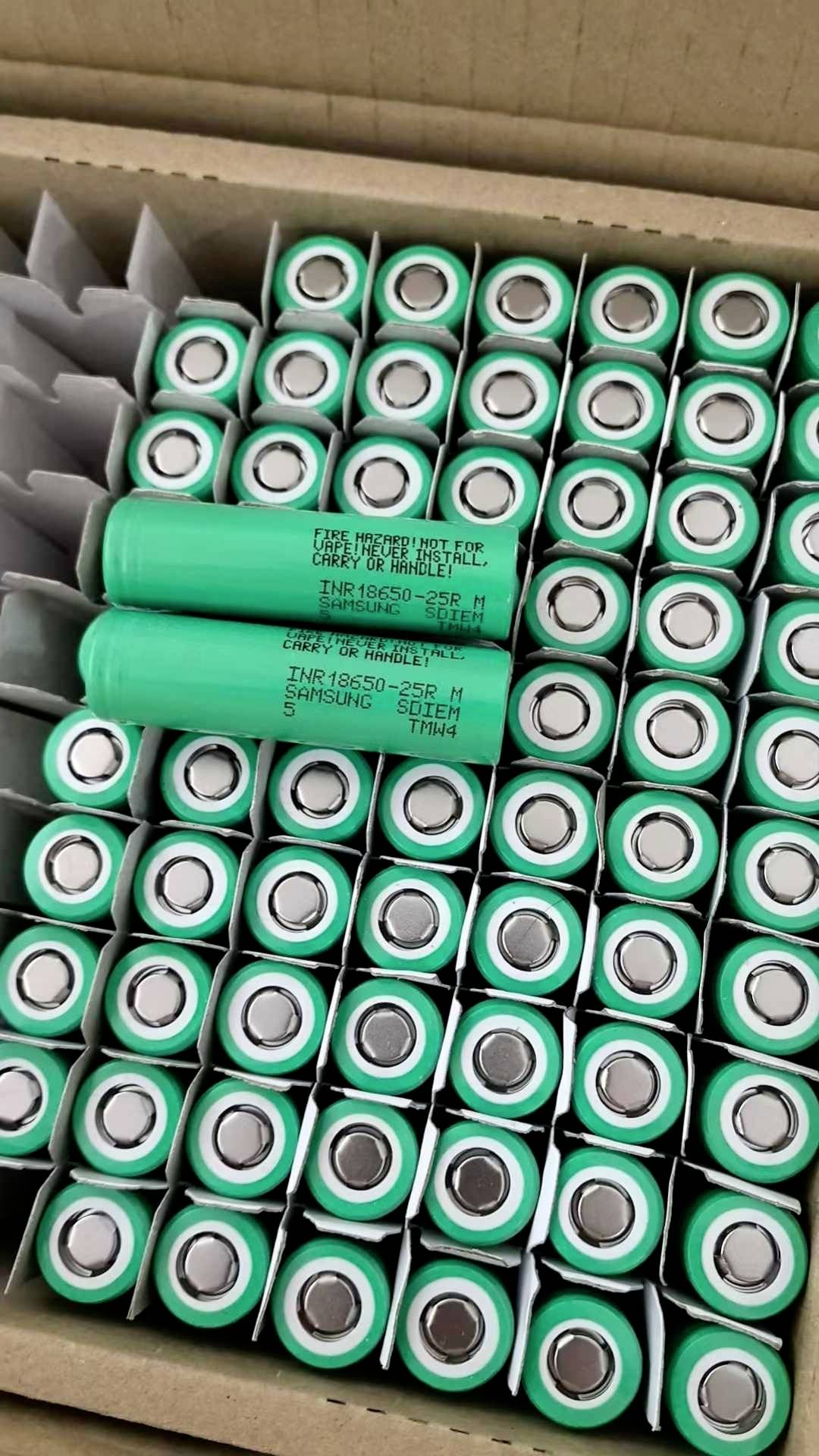

Box of green cylindrical battery cells packed in cardboard, with a few cells labeled and laid across the top.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Samsung INR18650-25RM Li-Ion 3.6V/2.5Ah

Extremely high current carrying capacity (high drain) of up to 20 A continuous current.
Excellent cycle stability and reliability.
Ideal balance between solid capacity (2,500 mAh) and massive power output.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.3 mm x 65 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 2500 mAh

Special-purpose battery features: Flat top

Max. charging current: 1250 mA

Continuous discharge: 20 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 65 mm

(Ø): 18.3 mm

Weight: 45 g

Content: 1 pc(s)

Type: INR18650-25RM

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768025 Samsung INR18650-25RM Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2500 mAh 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768025 Samsung INR18650-25RM Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2500 mAh 1 pc(s)

Description

The Samsung INR18650-25RM is the power pack in lithium-ion batteries. Developed for applications with extreme Hohem power requirement, this cell delivers unstoppable energy at maximum stability. Whether in modern electrical tools, in demanding modeling or in e-cigarettes/battery carriers, you can rely on the proven industrial quality of Samsung SDI for uncompromising performance and durability.

This text is machine translated.
