Name: Samsung INR18650-30Q Non-standard battery (rechargeable) 18650 High current loading Li-ion 3.6 V 3000 mAh 1 pc(s)
Brand: Samsung
SKU: 3768027

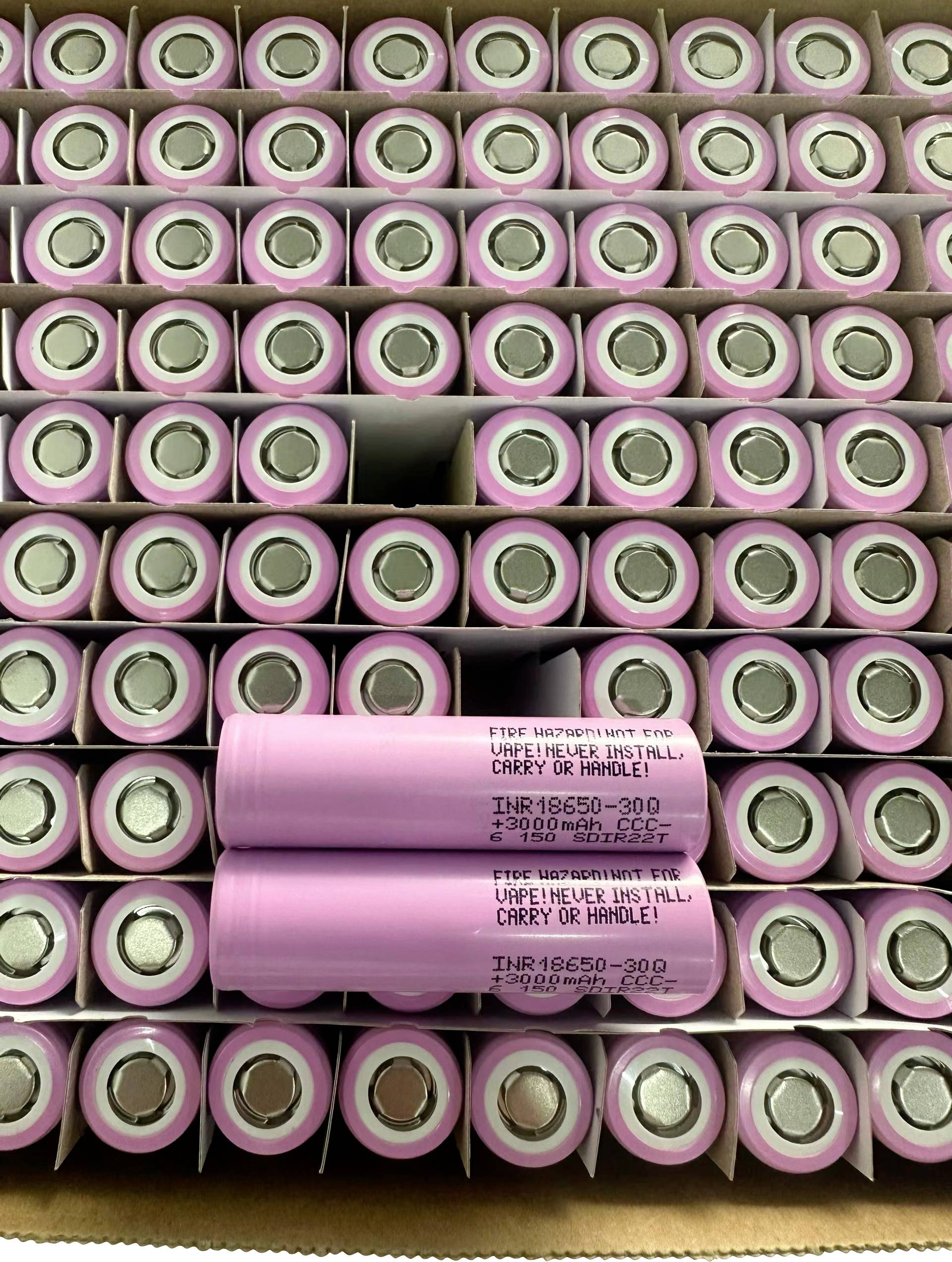

Stack of pink cylindrical lithium-ion batteries, with two labeled 'INR18650-30Q' cells lying across the center.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Internal resistance up to 18 mΩ (alternating current 1 kHz)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (W x H x D) 18.3 x 65 x 18.3 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 3000 mAh

Special-purpose battery features: High current loading

Max. charge voltage: 4.2 V

Max. charging current: 4 A

Terminal voltage: 2.5 V

Discharge current (max.): 15 A

Continuous discharge: 15 A

Min. temperature: -20 °C

Max. temperature: 75 °C

Width: 18.3 mm

Height: 65 mm

Depth: 18.3 mm

Weight: 46 g

Content: 1 pc(s)

Type: INR18650-30Q

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768027 Samsung INR18650-30Q Non-standard battery (rechargeable) 18650 High current loading Li-ion 3.6 V 3000 mAh 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768027 Samsung INR18650-30Q Non-standard battery (rechargeable) 18650 High current loading Li-ion 3.6 V 3000 mAh 1 pc(s)

Description

The Samsung INR18650-30Q is the first choice for demanding applications like e-bikes, tools or powerful torches. With true 3000 mAh capacity and a continuous discharge current of up to 15 A, it provides long-lasting Power and reliability.

This text is machine translated.
