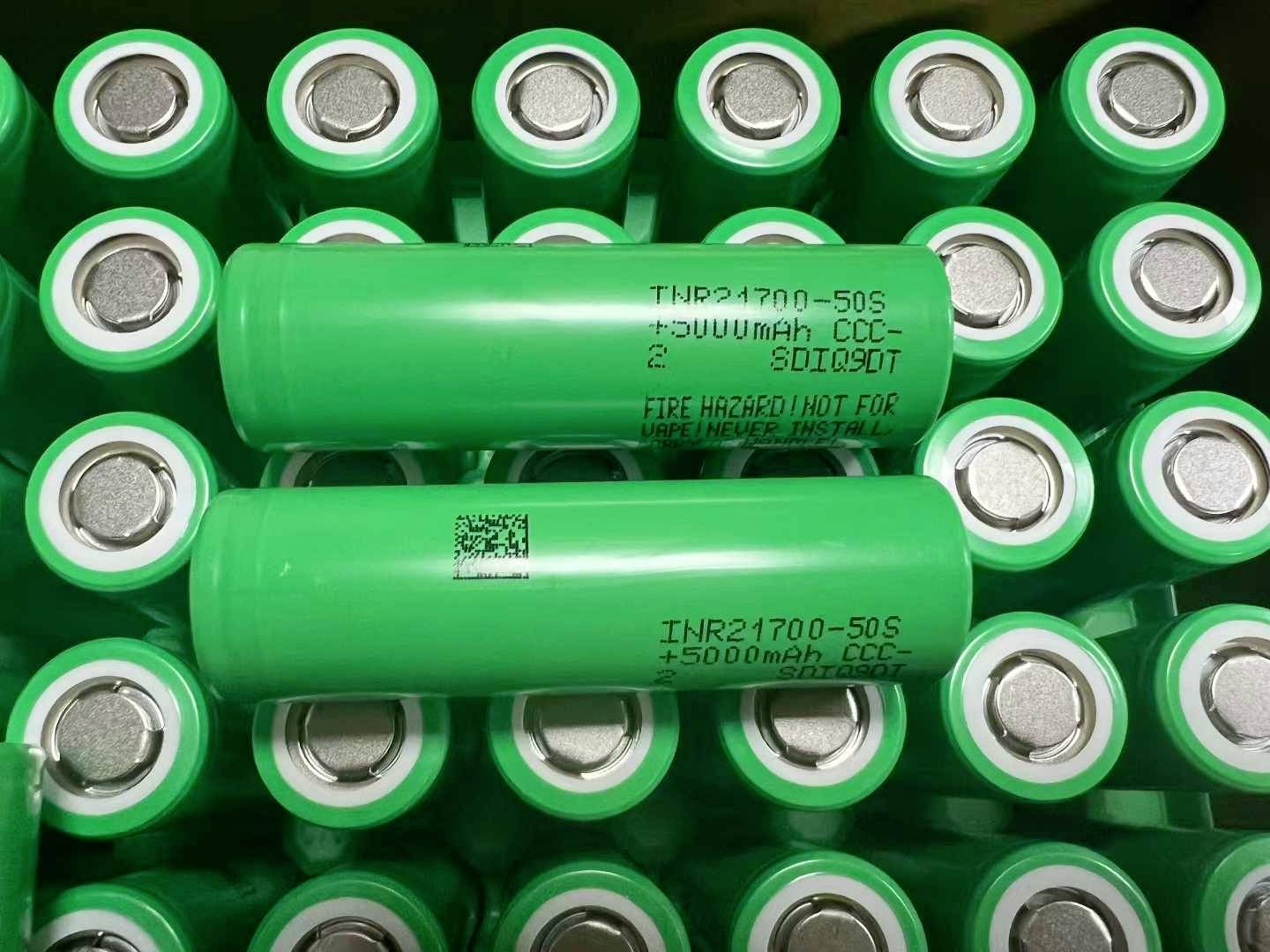

Samsung INR21700-50S Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5 Ah 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Samsung INR21700-50S Li-Ion 3.6V / 5.0Ah
- Enormous capacity of 5000 mAh combined with extremely high current carrying capacity (up to 45 A).
- Ideal for power-hungry applications such as e-cigarettes, tools and e-mobility.
- Excellent cycle stability and stable voltage situation under load.
Technical specifications
- Charging procedure CC-CV (constant current - constant voltage)
- Size
21700
- Product type
Non-standard battery (rechargeable)
- Technology
Li-ion
- Dim
(Ø) 21.25 mm
- Voltage
3.6 V
- Capacity (mAh, Ah)
5 Ah
- Special-purpose battery features
Flat top
- Max. charge voltage
4.2 V
- Max. charging current
6 A
- Terminal voltage
2.5 V
- Discharge current (max.)
45 A
- Continuous discharge
25 A
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Width
70.15 mm
- (Ø)
21.25 mm
- Weight
72 g
- Content
1 pc(s)
- Type
INR21700-50S
- Rechargeable
Yes
- Integrated surge protection
No
Documents & Downloads
Datasheet
Datasheet 3768028 Samsung INR21700-50S Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5 Ah 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3768028 Samsung INR21700-50S Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5 Ah 1 pc(s)
Description
The Samsung INR21700-50S sets new standards in the 21700-class. It combines a maximum capacity of 5000 mAh with an impressive continuous current output of up to 25 A (without temperature monitoring) or 45 A (with temperature monitoring at 80 °C). The perfect choice for all, who do not want to make any compromises between runtime and Power.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x Samsung INR21700-50S battery
