Name: Samsung Odyssey G5 OLED monitor EEC F (A - G) 68.6 cm (27 inch) 2560 x 1440 p 16:9 5 ms OLED
Brand: Samsung
SKU: 3843092

Product image of a Samsung monitor showing a vivid abstract display, with callouts for 5K resolution, USB-C 90W and LAN port, easy connection, and ergonomic design.

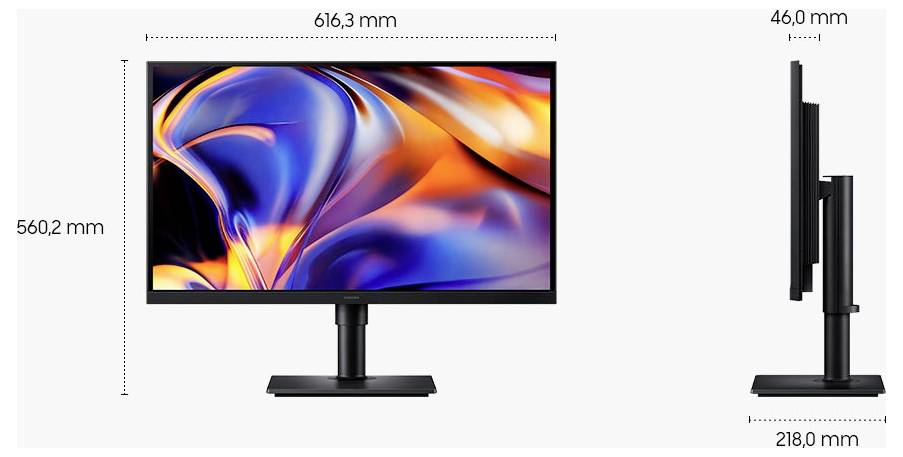

A computer monitor shown from front and side views with size dimensions labeled: 616.3 mm wide, 560.2 mm high, 46.0 mm deep, and 218.0 mm base depth.

Promotional graphic showing a monitor comparing 4K and 5K resolution; text reads '218 PPI', '5K-Auflösung', and 'Mehr Platz für mehr Leistung in 5K'.<br>

Monitor-connected desktop setup showing USB-C and LAN connectivity, with a laptop, accessories, and German text promoting longer productivity and 90W charging/data transfer.

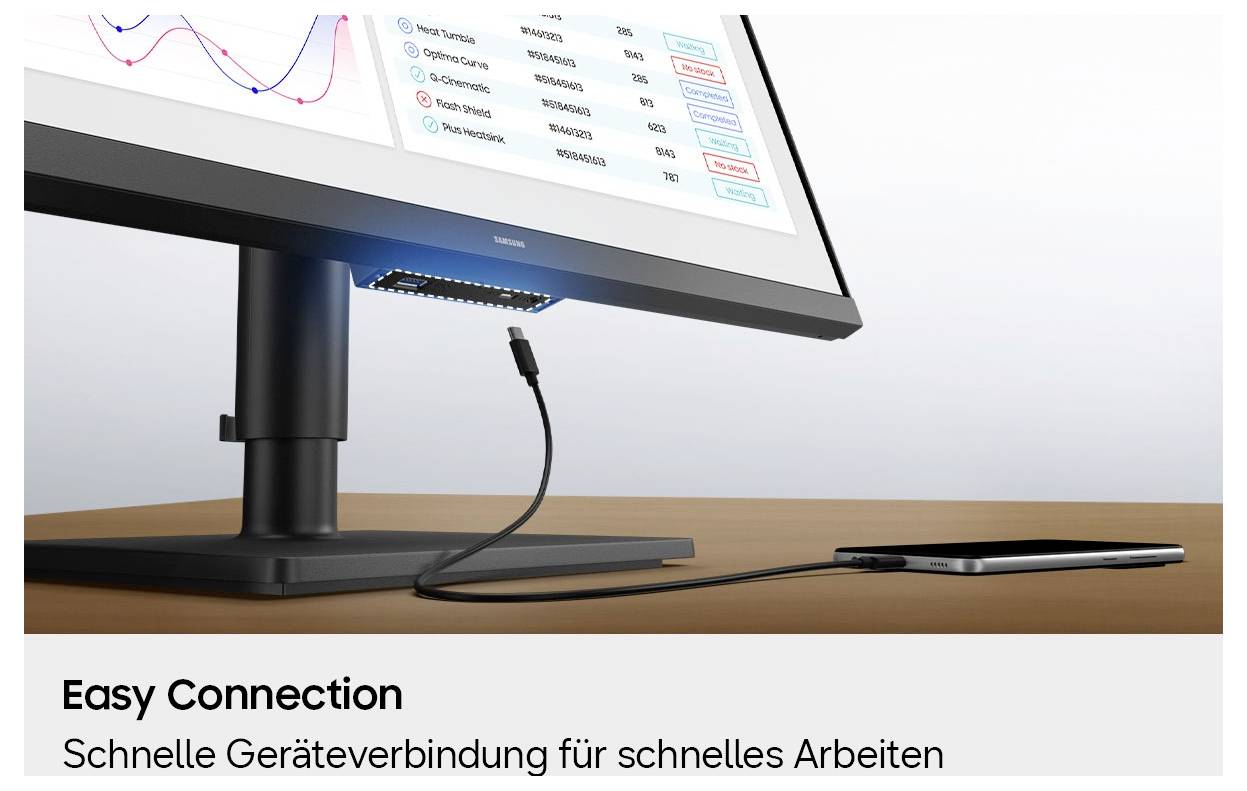

Computer monitor connected by cable to a smartphone on a desk, illustrating easy device connection and fast work; text reads 'Easy Connection' and 'Schnelle Geräteverbindung für schnelles Arbeiten'.

Woman adjusts a dual-monitor ergonomic desktop stand; on-screen text reads 'Ergonomisches Design' and 'Blickwinkel mit verbesserter Flexibilität'.<br>

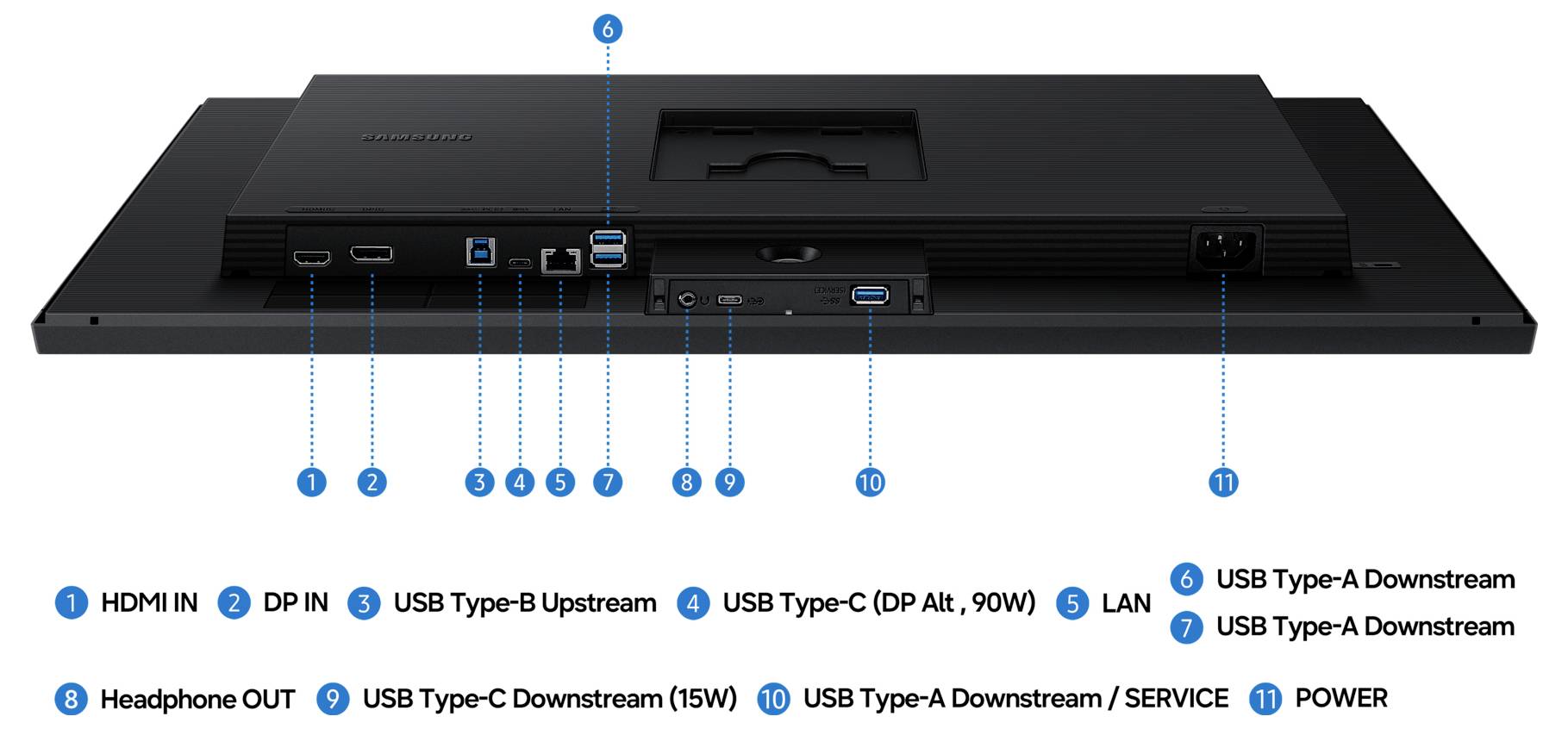

Annotated rear view of a monitor showing numbered port locations, including HDMI in, DisplayPort in, USB-C upstream/downstream, USB-A ports, headphone out, LAN, and power.

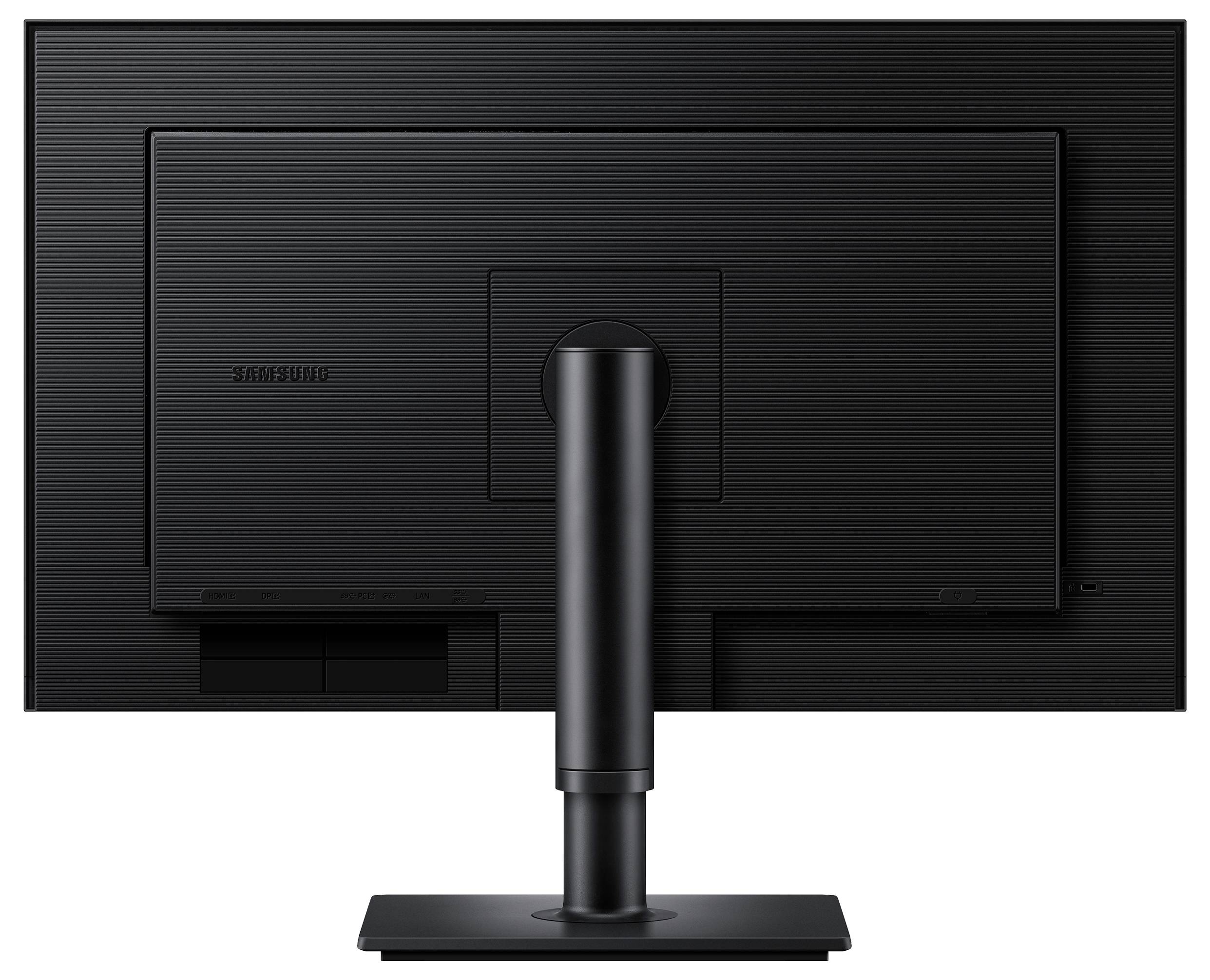

Back view of a black Samsung computer monitor on a stand against a white background.

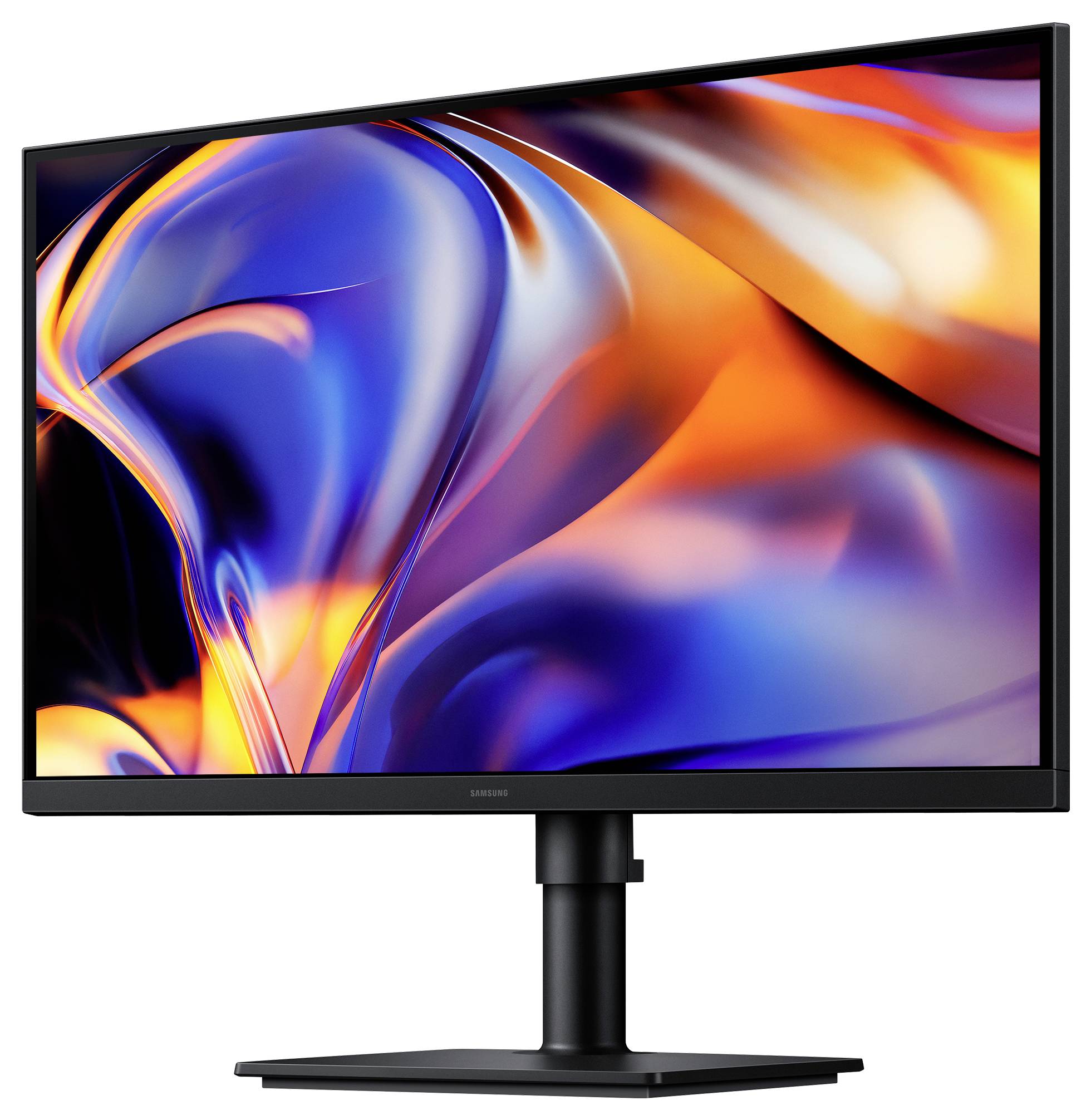

A Samsung monitor displaying an abstract blue, orange, and purple swirl on a black stand against a white background.

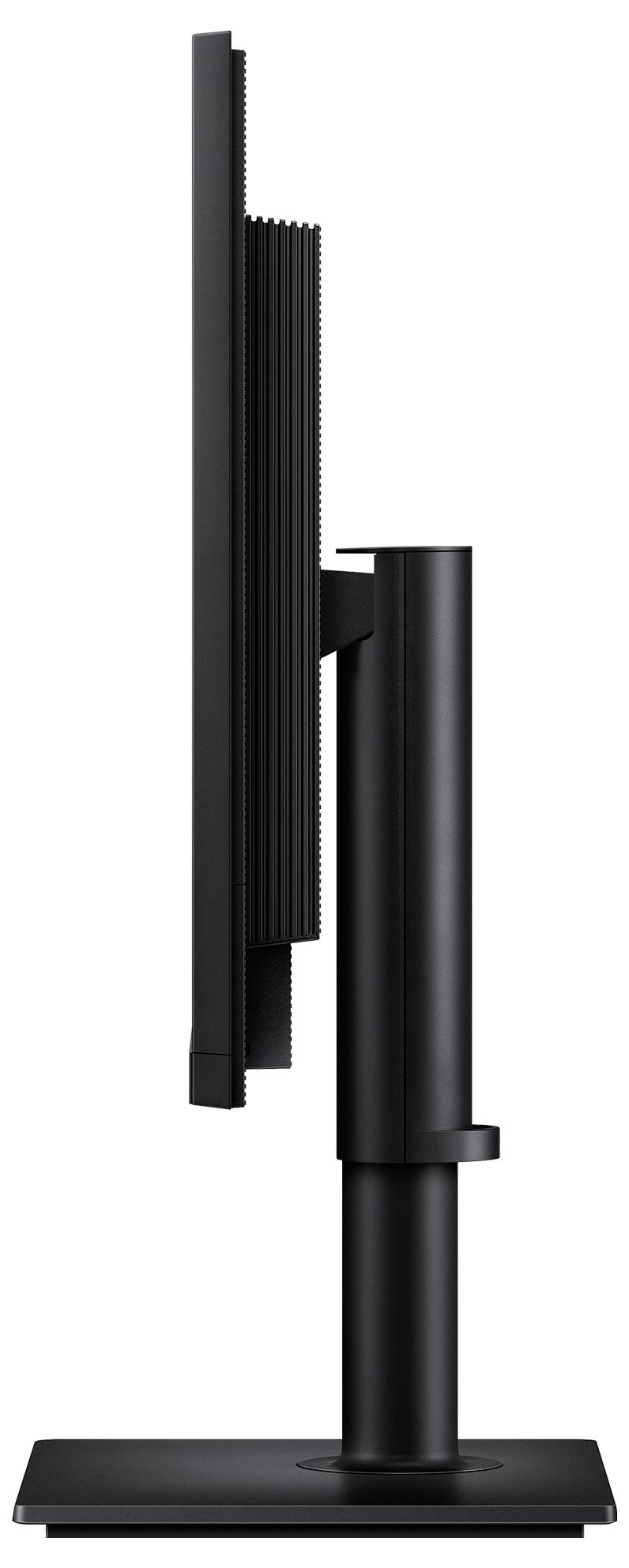

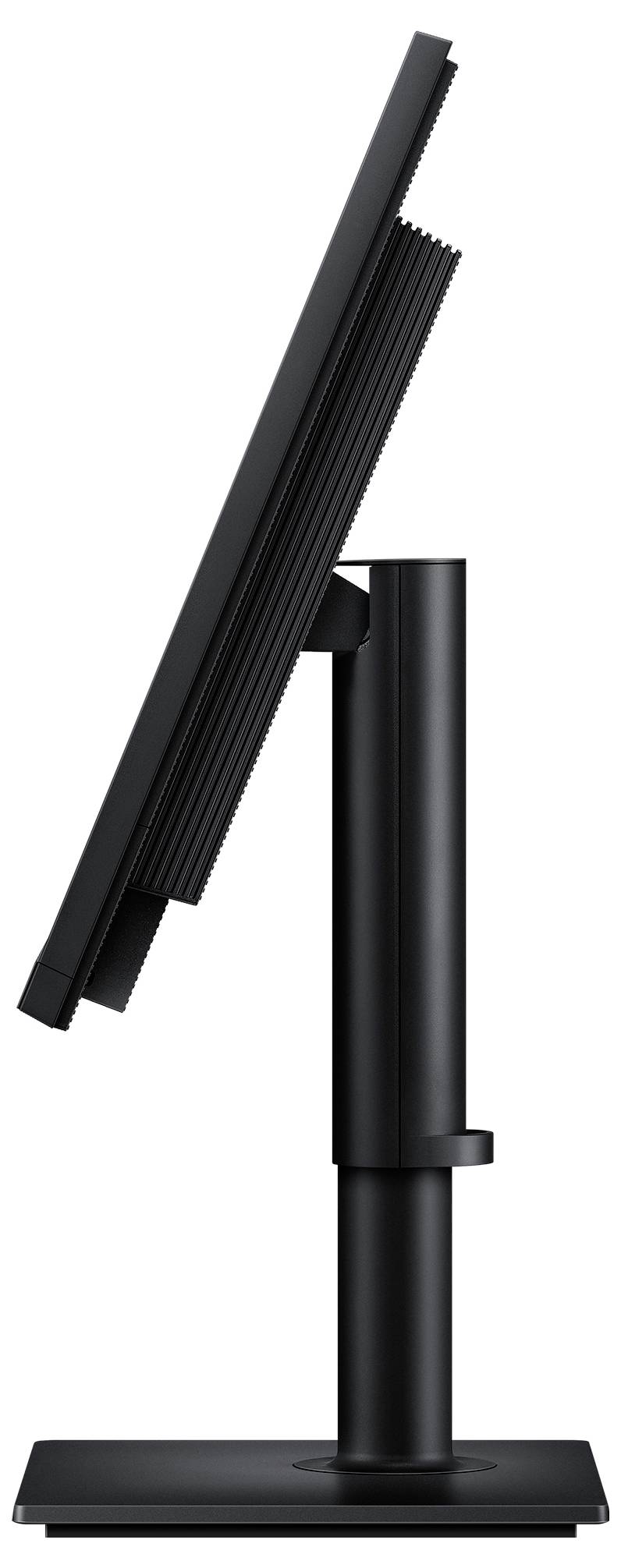

Black adjustable desktop monitor stand shown in side view on a white background.

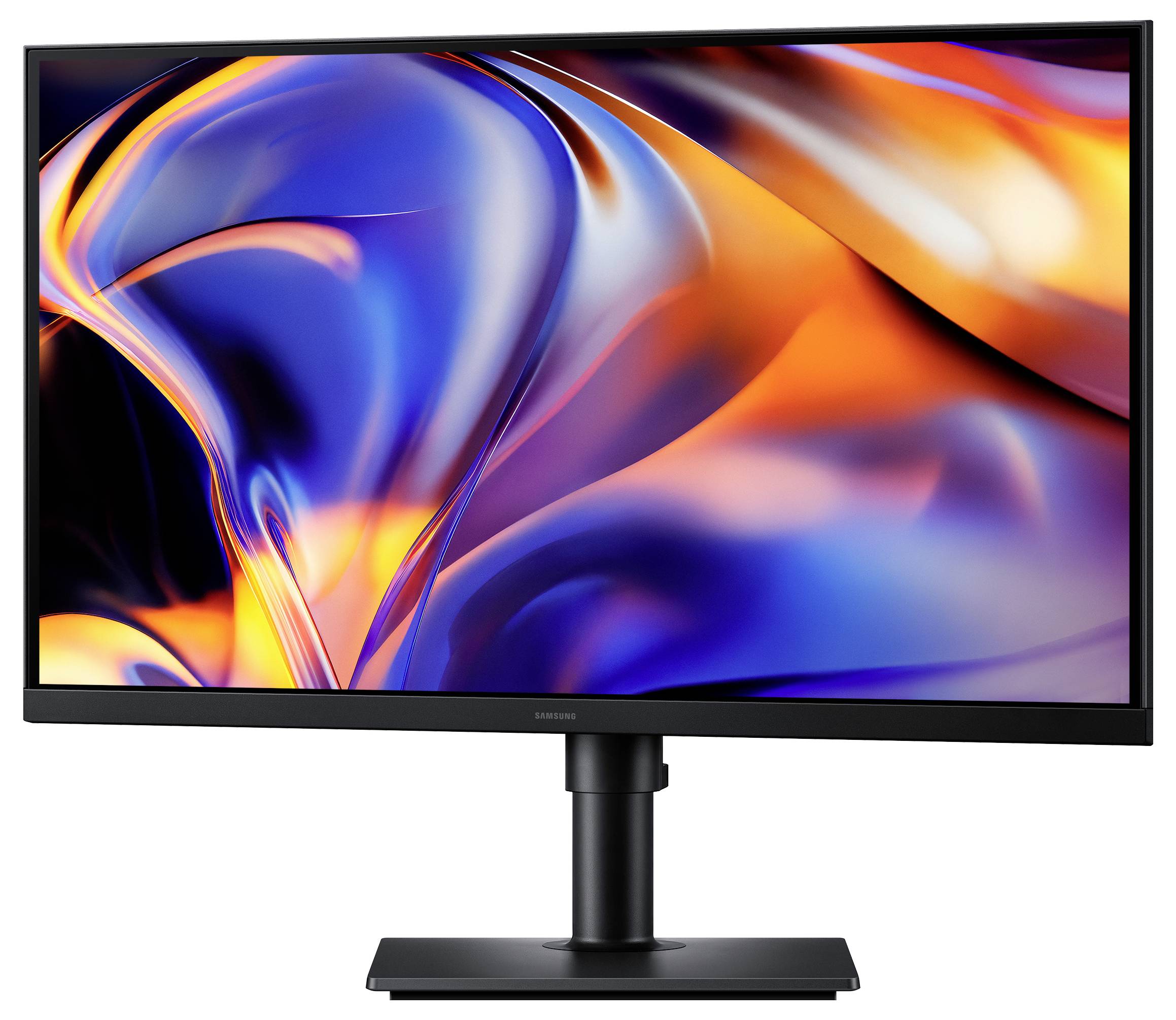

A widescreen Samsung monitor on a stand displaying a colorful abstract swirl wallpaper on a white background.

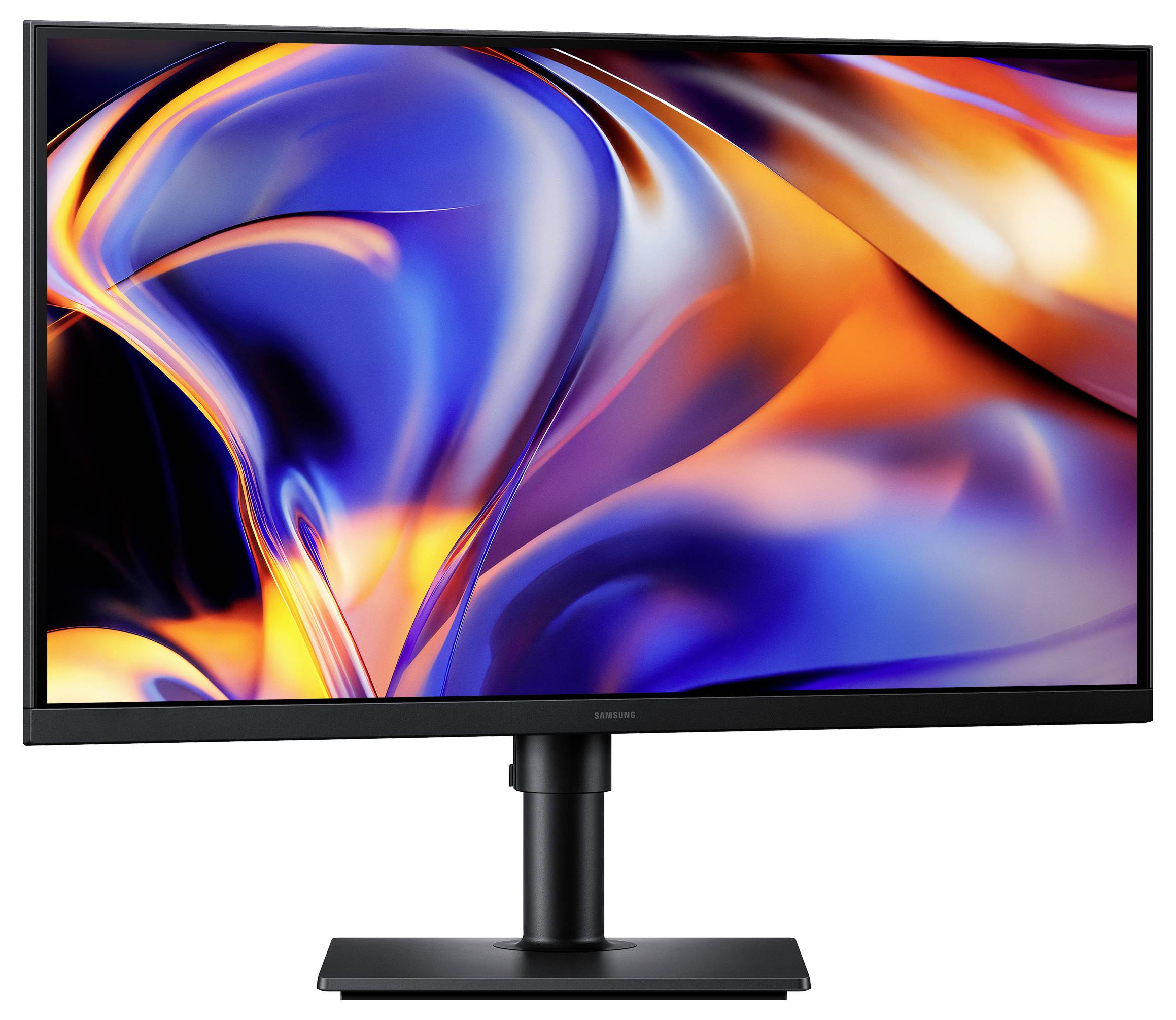

Black flat-screen monitor on a stand displaying a colorful abstract blue, orange, and pink swirl on a white background.

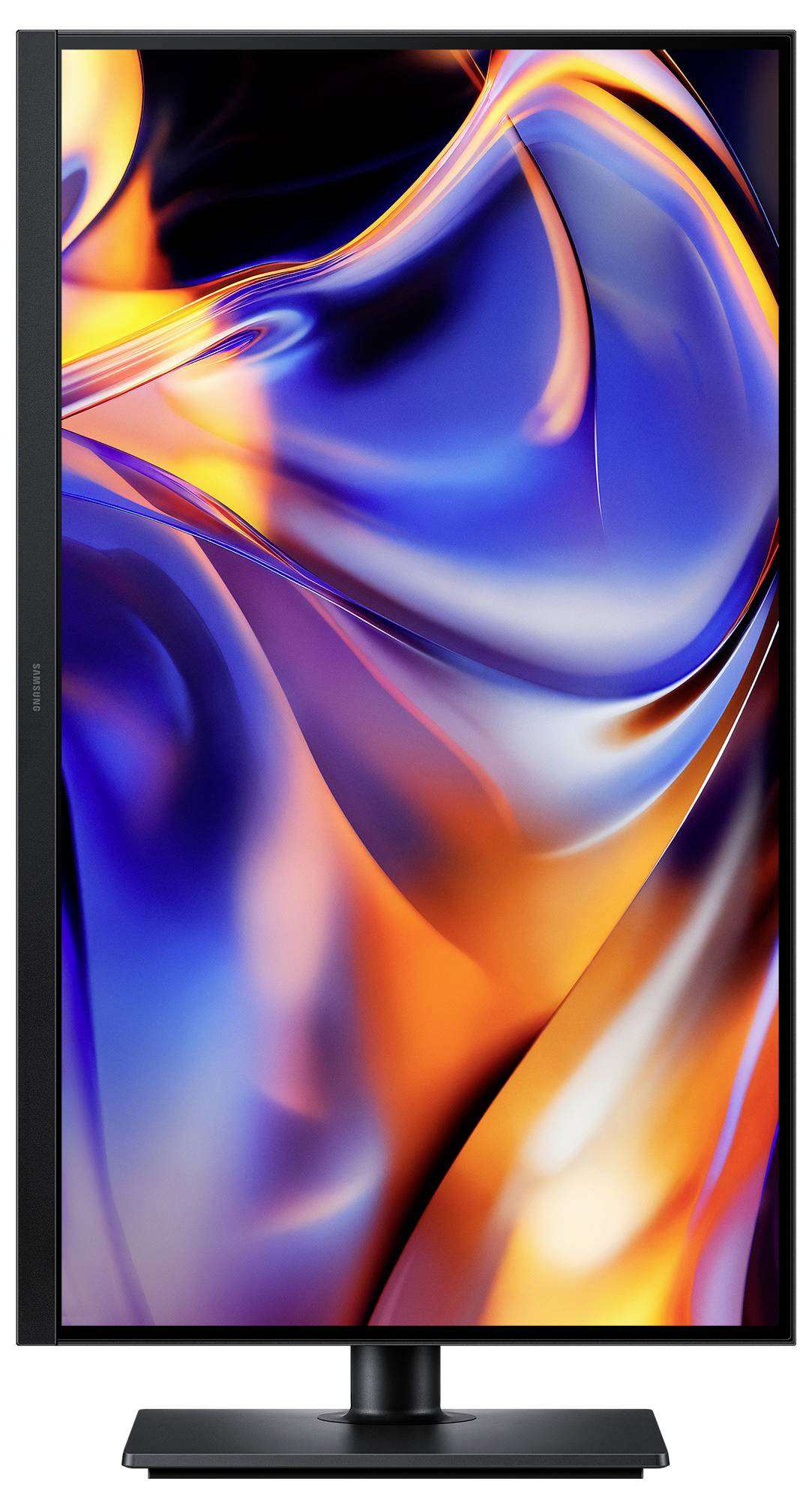

A desktop monitor displaying an abstract colorful wallpaper with flowing blue, orange, and purple shapes.<br>

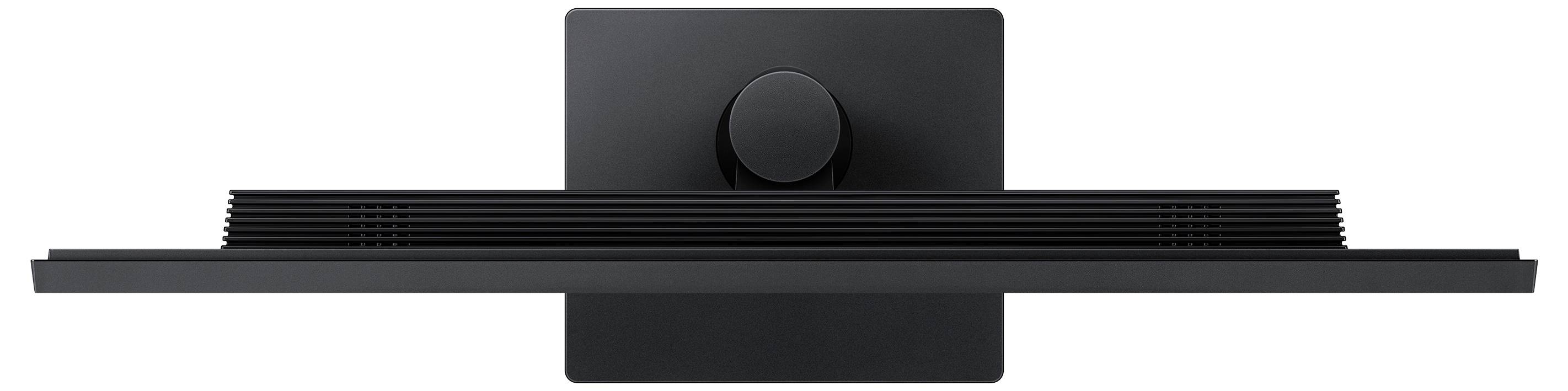

A slim black wall-mounted soundbar or speaker with a central circular mount shown front-on against a white background.<br>

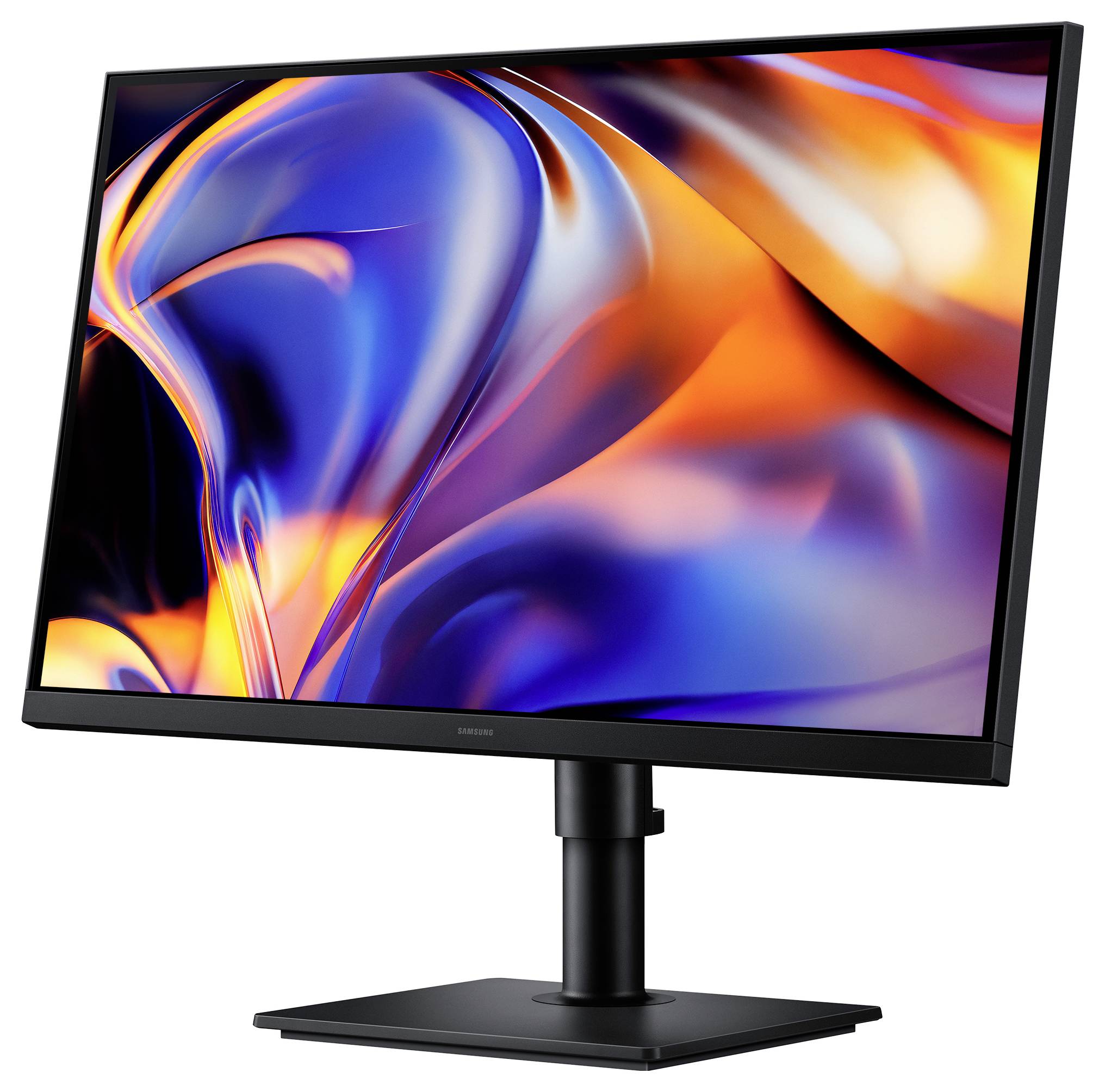

Modern flat-screen monitor on a stand displaying a colorful abstract wallpaper on a white background.

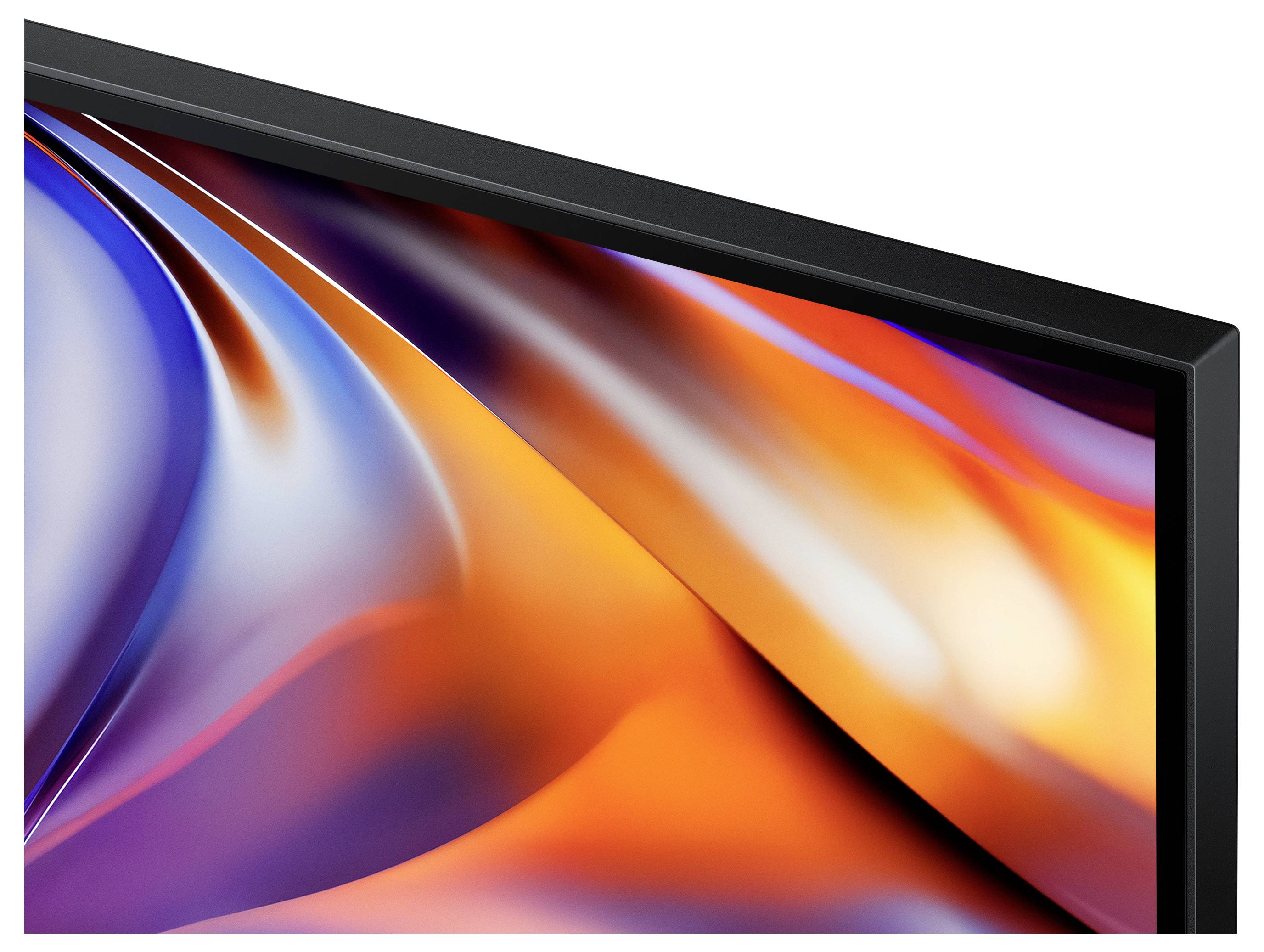

Close-up of a flat-screen TV displaying a colorful abstract wave graphic on the screen.<br>

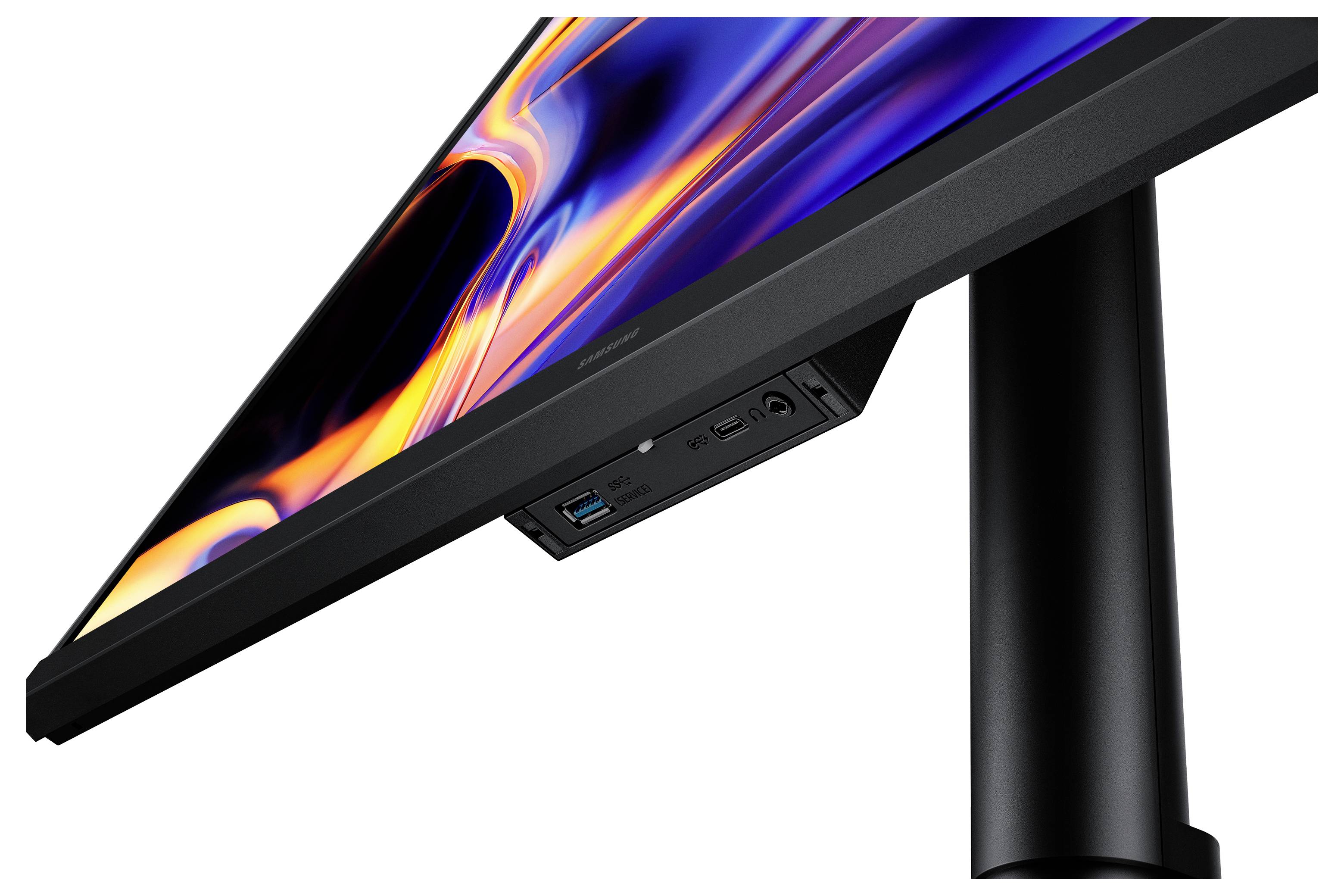

Angled close-up of a monitor on a stand, showing the bottom edge with USB and audio ports and a colorful abstract display.

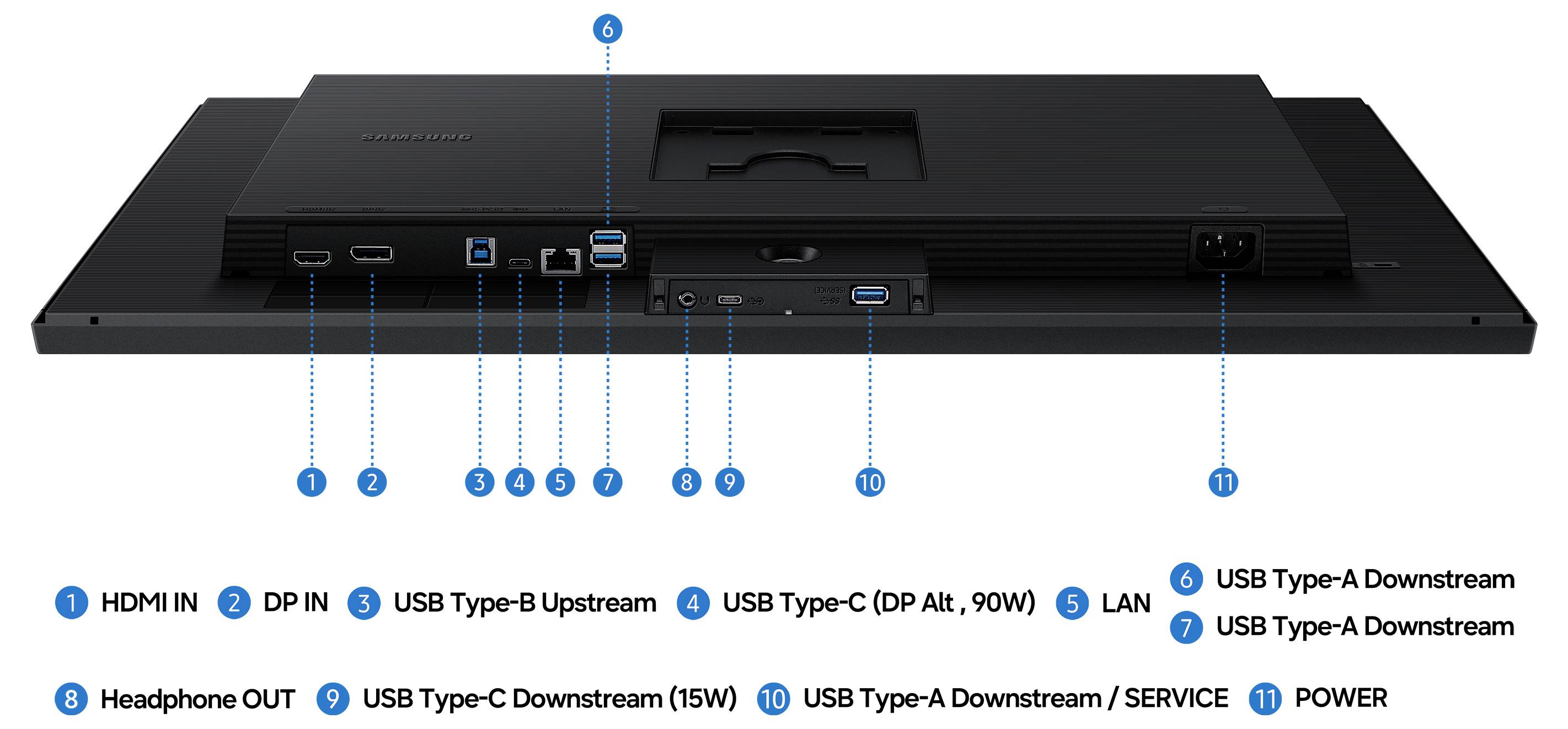

Rear view diagram of a monitor showing labeled ports: HDMI in, DP in, USB-C upstream/downstream, USB-A downstream/service, headphone out, LAN, and power.

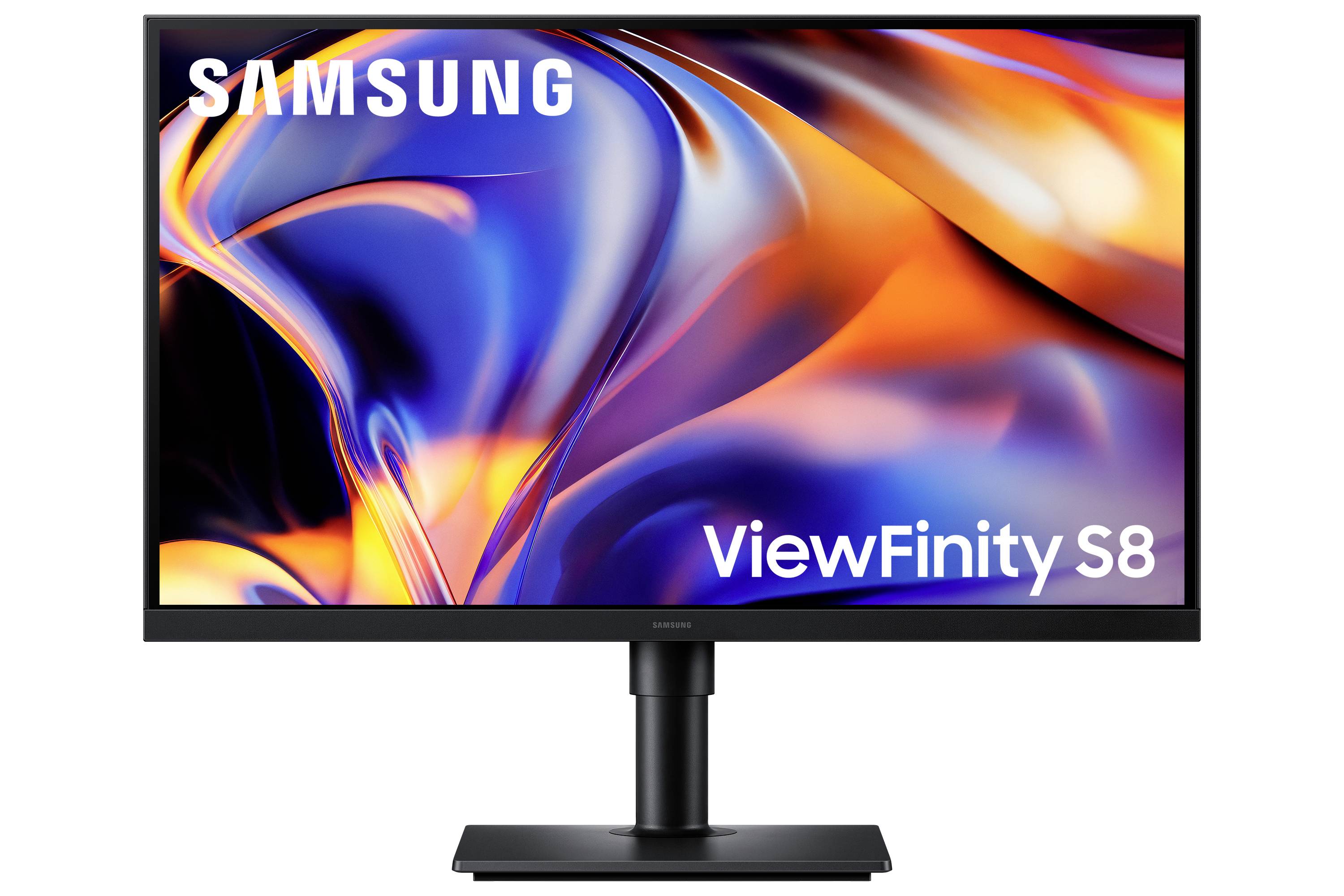

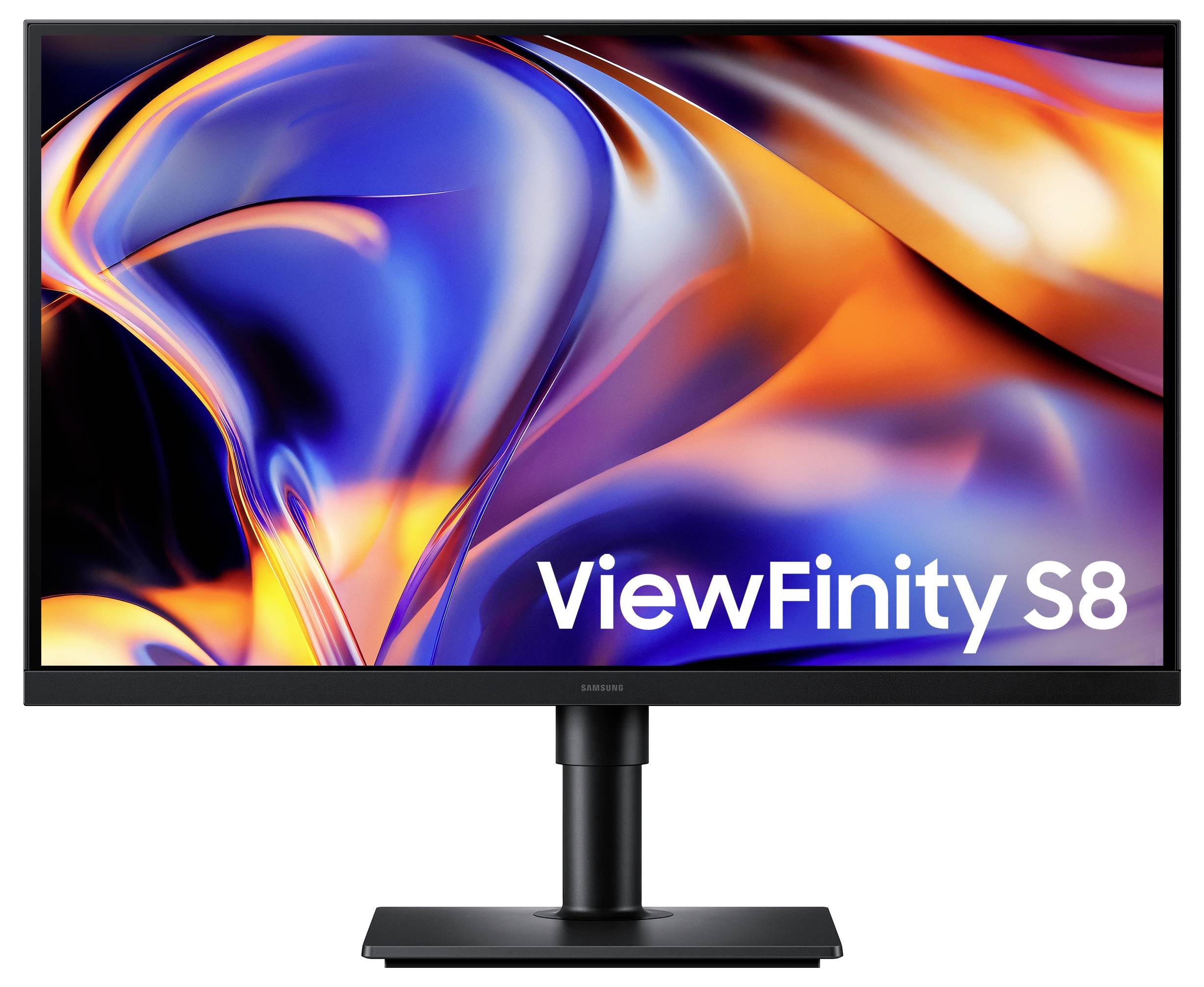

Samsung ViewFinity S8 monitor with abstract colorful display on a stand, shown against a white background.<br>

1/23

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Samsung 27" ViewFinity S8 T80HF 5K monitor

68.6 cm (27") black
Height adjustment: 12 cm
HDMI version: 2.1 No. of DisplayPort Connections: 1 DisplayPort version: 1.4
Screen shape: Flat
Maximum frame rate: 60 Hz Reaction time: 5 ms Reaction time: GTG (Gray to Gray)
5120 x 2880 Pixel 5K Ultra HD Panel-type: IPS
Energy efficiency class (SDR): F

Technical specifications

HD type 5K ultra HD
Screen technology: LCD
Contrast ratio: 1000:1
Market positioning: House
HDMI Version 2.1
Swivel angle range -45 - 45 °
Tilt angle range -3 - 25°
Energy efficiency class (HDR): G

Product type: OLED monitor

Resolution (max.): 2560 x 1440 p

Screen size diagonal (cm): 68.6 cm

Screen size diagonal (inches): 27 inch

Screen size diagonal (inches): 27 inch

Image format: 16:9

Panel technology: OLED

Touchscreen (display): No

Frame rate: 60 Hz

Response time: 5 ms

Brightness: 350 cd/m²

Factory colour: Black

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

Power consumption (standby): 0.5 W

Hor. viewing angle: 178°

Vertical viewing angle: 178°

HDR support: Yes

Width: 616.3 mm

Height: 560.2 mm

Depth: 218 mm

Weight: 5.4 kg

Power supply (details): 100-240 V

Dim: (W x H x D) 616.3 x 560.2 x 218 mm

Display size: 24 inch - 29 inch

Display type: OLED

Range of uses: Gaming

: F (A - G)

Display: 68.6 cm (27 inch)

Display (cm): 68.6 cm

Power consumption (off): 0.3 W

Power consumption (ON): 26 W

Device depth (without stand): 46 mm

Display properties: IPS

Display resolution: 5120 x 2880 Pixel

HDCP: Yes

Charging method (Power Delivery): with USB Power Delivery

Height (without base): 366.5 mm

Type: internal

: 100 x 100 mm

UKCA: yes

Operating temperature (T-T): 10 - 40 °C

Headphone out: yes

Weight (without stand): 4 kg

Width (without stand): 616.3 mm

Ethernet LAN: yes

Wall mountable: yes

VESA mounting: yes

Height adjustment: yes

NVIDIA G-SYNC: no

Built-in USB hub: yes

USB Type-C downstream ports quantity: 1

Built-in speaker(s): no

Adjustable height (max): 12 cm

Pivot: yes

Display brightness (min): 280 cd/m²

sRGB coverage (typical): 99 %

AMD FreeSync: no

Picture-in-Picture: yes

Flicker-free technology: yes

Picture-by-Picture (PbP): yes

USB Power Delivery up to: 90 W

Number of USB Type-B upstream ports quantity: 1

Energy consumption (SDR) per 1000 hours: 26 kWh

Energy consumption (HDR) per 1000 hours: 49 kWh

HDMI: yes

Swivelling: yes

Package weight: 7 kg

Pivot angle: -92 - 92°

Built-in camera: no

Power cable length: 1.5 m

Tilt adjustment: yes

Annual energy consumption: 38 kWh

Viewable size, horizontal: 59.7 cm

Power consumption (max): 190 W

Viewable size, vertical: 33.6 cm

Built-in KVM switch: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3843092 Samsung Odyssey G5 OLED monitor EEC F (A - G) 68.6 cm (27 inch) 2560 x 1440 p 16:9 5 ms OLED

Description

5K creates room for your productivity
5K resolution
Images are sharp, full of detail and clear in 5K at 218 PPI and 77% more pixels than 4K. So you can keep everything in view and do several tasks at the same time completely relaxed on the ViewFinity S8 680HF – for a workflow that runs easily.

Lots of colors for spectacular images
HDR10
With HDR10 you experience up to one billion colors almost as life-like as in real life, with rich black tones and radiating highlights. The ViewFinity T80HF comes with a wide spectrum of colors, full of details, which can show your content as it is meant.

Power that keeps you productive
USB-C and LAN connections
The integrated USB-C connection can quickly recharge your laptop with up to 90 W and transfer data simultaneously. In addition, the monitor also has a LAN-connection, so that you have an easy access to an Ethernet-connection. This way your setup remains tidy – and you have everything under control on the ViewFinity S8 T80HF and the connected devices.

Quickly connect, work quickly
Easy Connection
Easy Connection brings the most important connections directly to the front, so that you can connect devices without searching for hard-to-reach ports. This keeps your monitor setup clear and keeps your working day running smoothly.

Move seamlessly between devices
Integrated KVM Switch
With the integrated KVM-switch you can control two devices simultaneously via keyboard and mouse. This allows you to save stress with multiple devices and seamlessly switch between inputs and multitask on the ViewFinity S80HF.

Easy and quick setup
Ergonomic design
Thanks to its ergonomic design you can quickly find the position that is most comfortable for you. Your monitor can be tilted, swiveled and adjusted in height so that your work place is ergonomically aligned . And the 90° rotation feature lets you easily change to portrait format for extended documents in a relaxed way and read without much scrolling.

Do something good for your eyes
"Eye Saver" mode and flicker-free technology
Protect your eyes with modern Eye-Comfort technology, which is TÜV-certified. The Eye Saver mode reduces blue light emissions and thus relieves your eyes, while the Flicker Free technology provides for a calmer picture. So you can also remain relaxed and comfortable on the monitor even during longer sessions.

A hub for everything
Samsung display manager
The Samsung display manager helps you to use functions like split-screen, brightness adjustment, KVM, PIP/PBP and precise color calibration easily. Click the floating menu on your desktop and access advanced screen settings directly. For business users, the Mac Address Pass Through (MAPT) feature enables asset managers to reliably detect and track connected devices on the network.

This text is machine translated.
