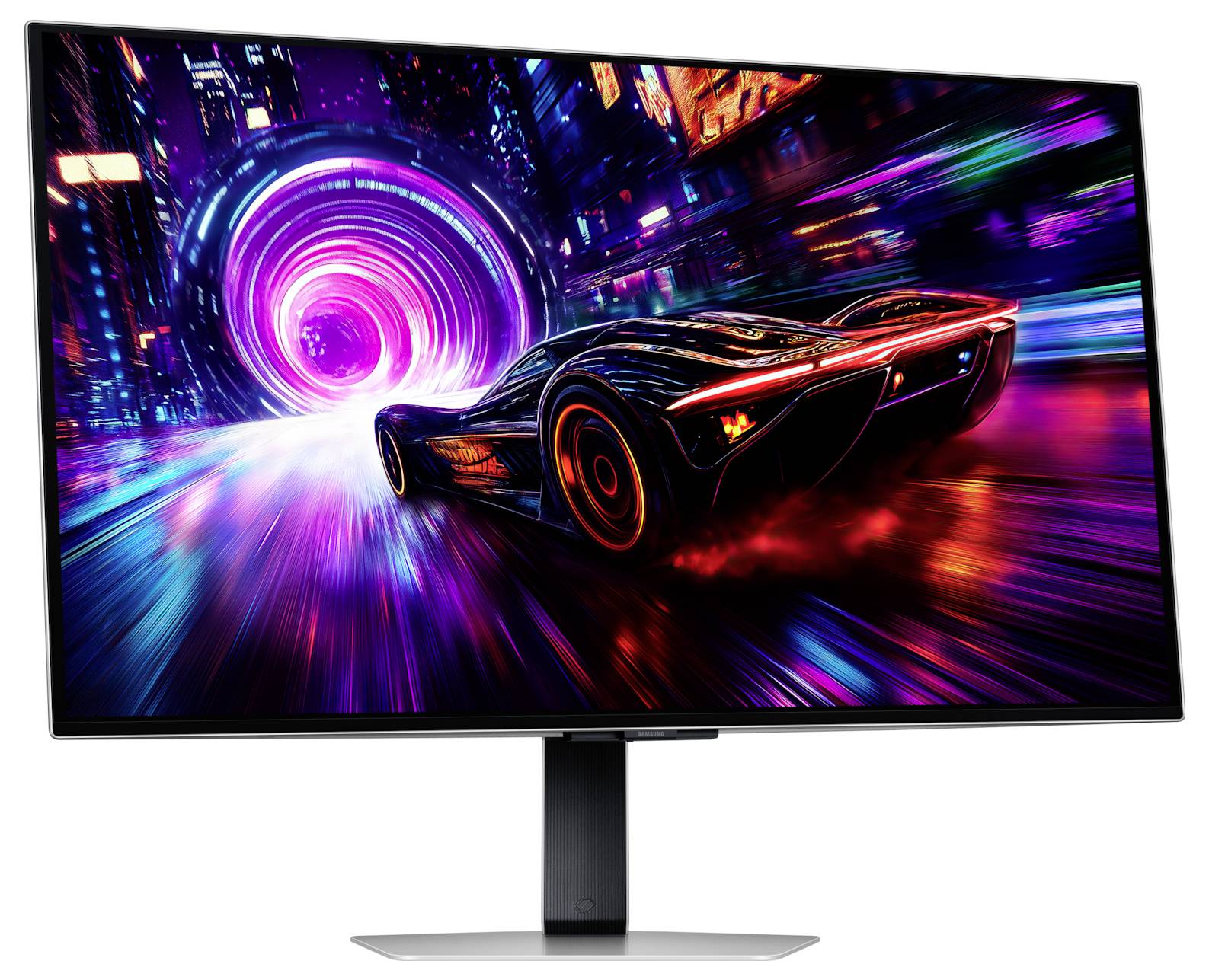

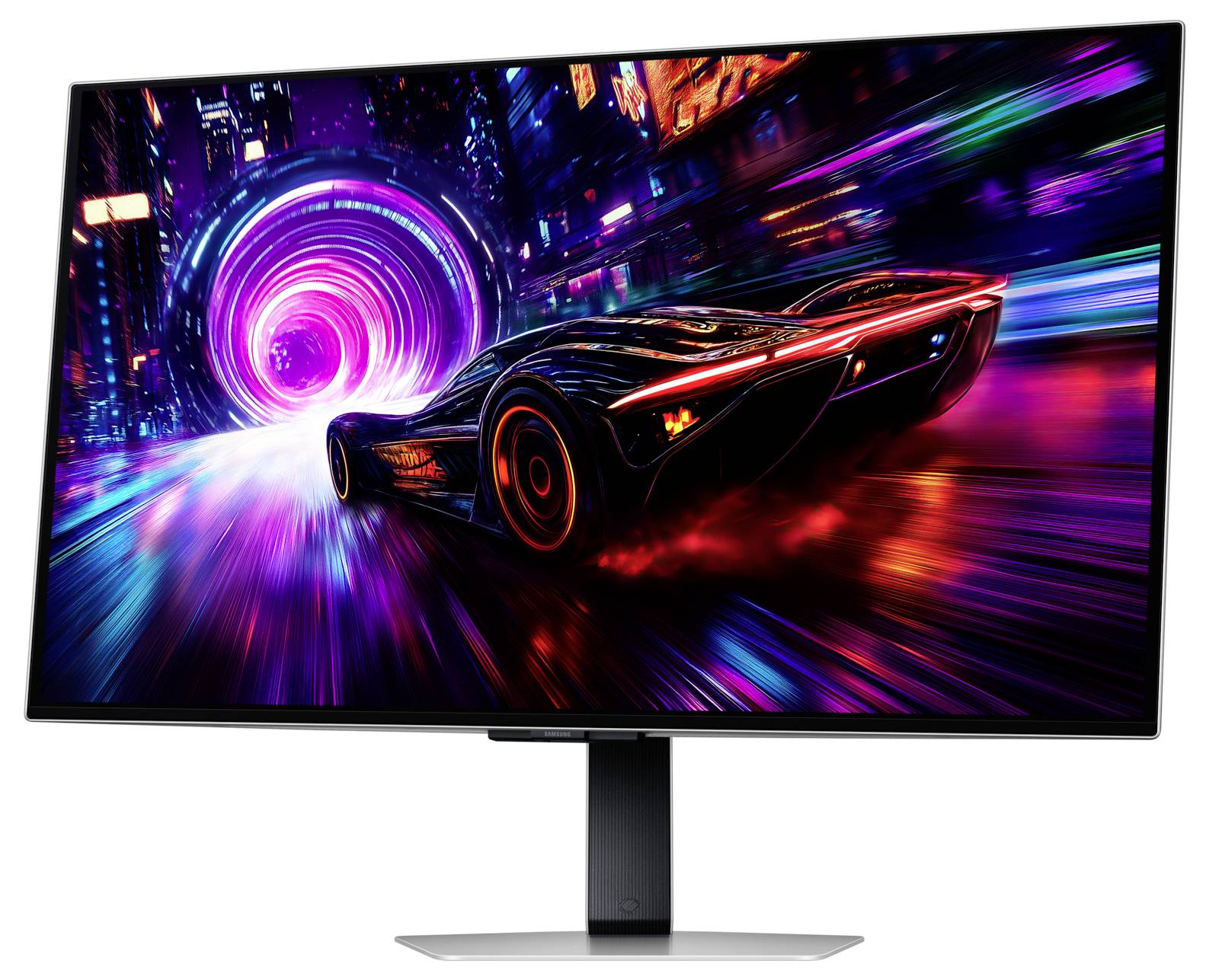

Name: Samsung Odyssey OLED G8 LS32FG814SU LED EEC G (A - G) 81.3 cm (32 inch) 16:9 0.03 ms DisplayPort, HDMI™, USB OLED
Brand: Samsung
SKU: 3478505

Highlights & Details

Samsung Odyssey OLED G8 LS32FG814SU LED

Screen size 81.3 cm (32 inch) 4K, Response time: 0.03 msEnergy efficiency rating (calc): G (A - G)

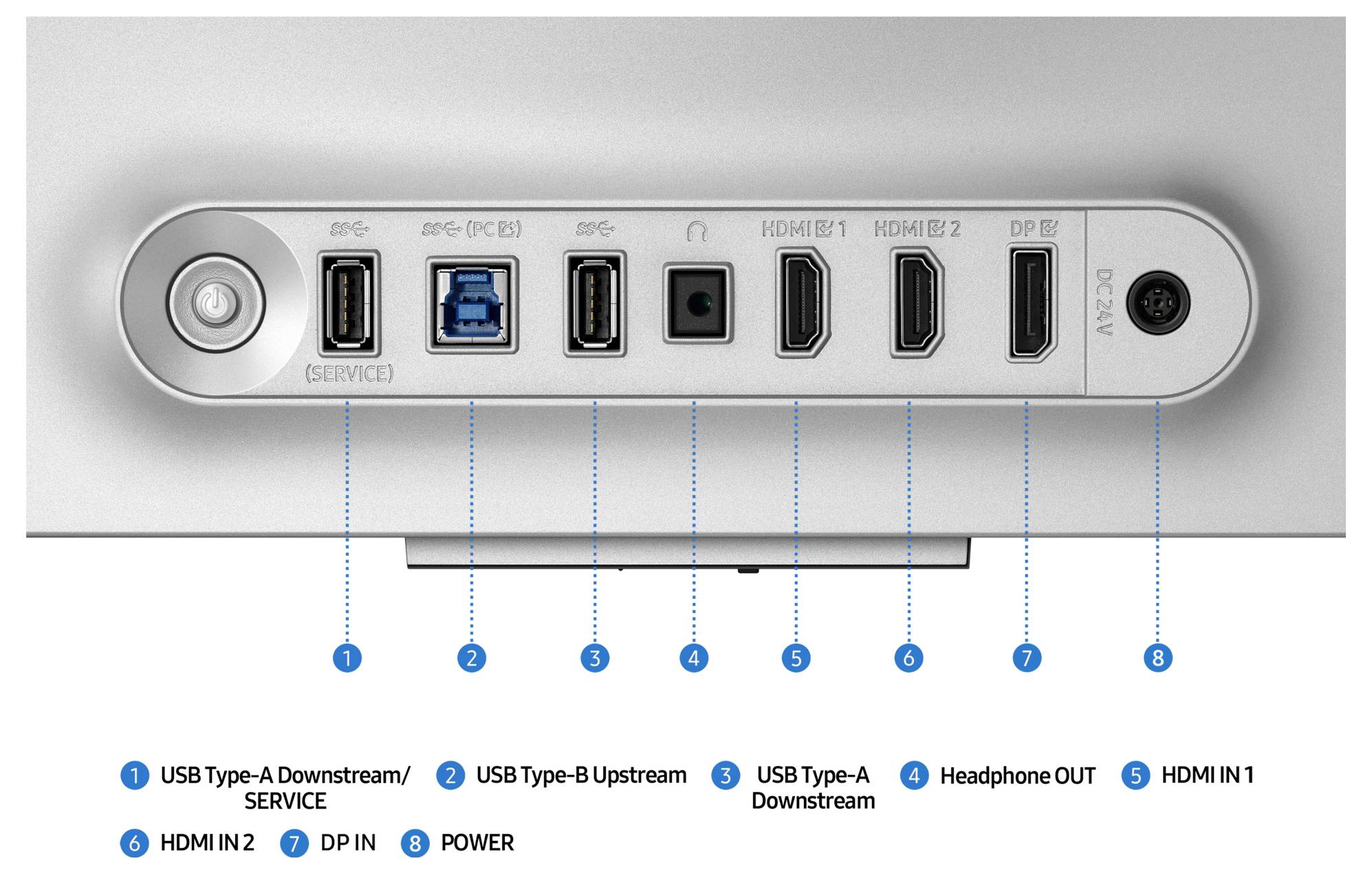

Interfaces: DisplayPort, HDMI™, USB

Technical specifications

HD type 4K Ultra HD
Contrast ratio 1000000:1
Quantum-dot color technology: Yes
HDMI version 2.1
Swivel angle range -30 - 30 °
Tilt angle range -2 - 25°
Digital Signal Format System: Not supported
Samsung eye saver mode: Yes
Image size: Y
Off-Timer Plus: Yes
Virtual AIM Point: Yes
Automatic source change+: Yes

Product type: LED

Screen size diagonal (inches): 32 inch

Screen size diagonal (inches): 32 inch

Image format: 16:9

Panel technology: OLED

Touchscreen (display): No

Frame rate: 240 Hz

Response time: 0.03 ms

Brightness: 250 cd/m²

Factory colour: Silver

Interfaces: DisplayPort
HDMI™
USB

No. of DisplayPort: 1 x

No. of HDMI ports: 2 x

Power consumption (standby): 0.5 W

Hor. viewing angle: 178°

Vertical viewing angle: 178°

HDR support: Yes

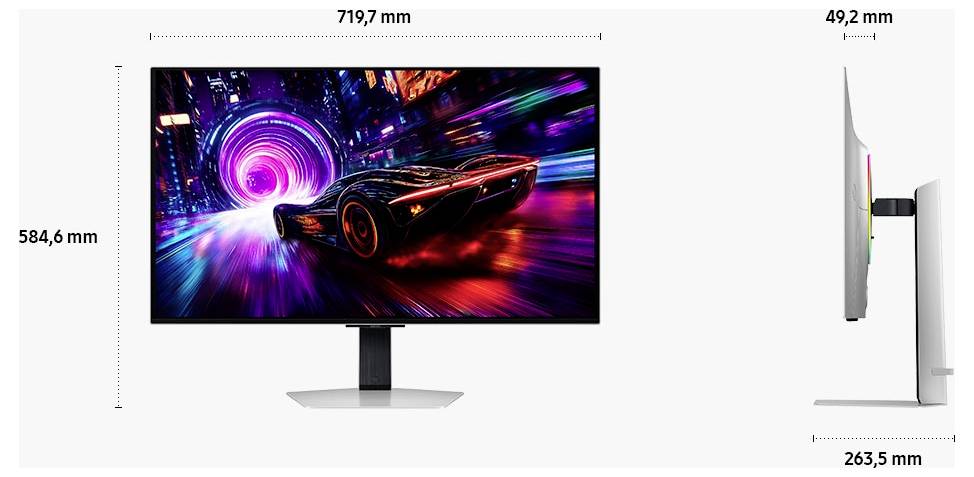

Width: 719.7 mm

Height: 584.6 mm

Depth: 263.5 mm

Weight: 8.4 kg

Power supply (details): 100 - 240 V

Dim: (W x H x D) 719.7 x 584.6 x 263.5 mm

Display size: 30 inch - 32 inch

Range of uses: Gaming

Display resolution mode: 4K

: G (A - G)

Display: 81.3 cm (32 inch)

Display (cm): 81.3 cm

Power consumption (ON): 38 W

Device depth (without stand): 49.2 mm

Display properties: OLED

Display resolution: 3840 x 2160 Pixel

Wireless charging: No

Microphone: No

Charging capacity (max.): 7.5 W

Charging capacity (min.): 2.5 W

Height (without base): 414.7 mm

Type: External

: 100 x 100 mm

Wi-Fi: No

UKCA: yes

Stand included: yes

Operating temperature (T-T): 10 - 40 °C

Headphone out: yes

Weight (without stand): 5.3 kg

Width (without stand): 719.7 mm

Ethernet LAN: no

Colour gamut: 99 %

VESA mounting: yes

Height adjustment: yes

NVIDIA G-SYNC: no

Built-in USB hub: yes

USB Type-A downstream ports quantity: 2

Built-in speaker(s): no

Adjustable height (max): 12 cm

Pivot: yes

Display brightness (min): 200 cd/m²

AMD FreeSync: yes

On Screen Display (OSD): no

Picture-in-Picture: yes

Flicker-free technology: yes

Number of USB Type-B upstream ports quantity: 1

Energy consumption (SDR) per 1000 hours: 38 kWh

Energy consumption (HDR) per 1000 hours: 46 kWh

HDMI: yes

LED backlight: no

Operating relative humidity (H-H): 10 - 80 %

Swivelling: yes

Package weight: 12 kg

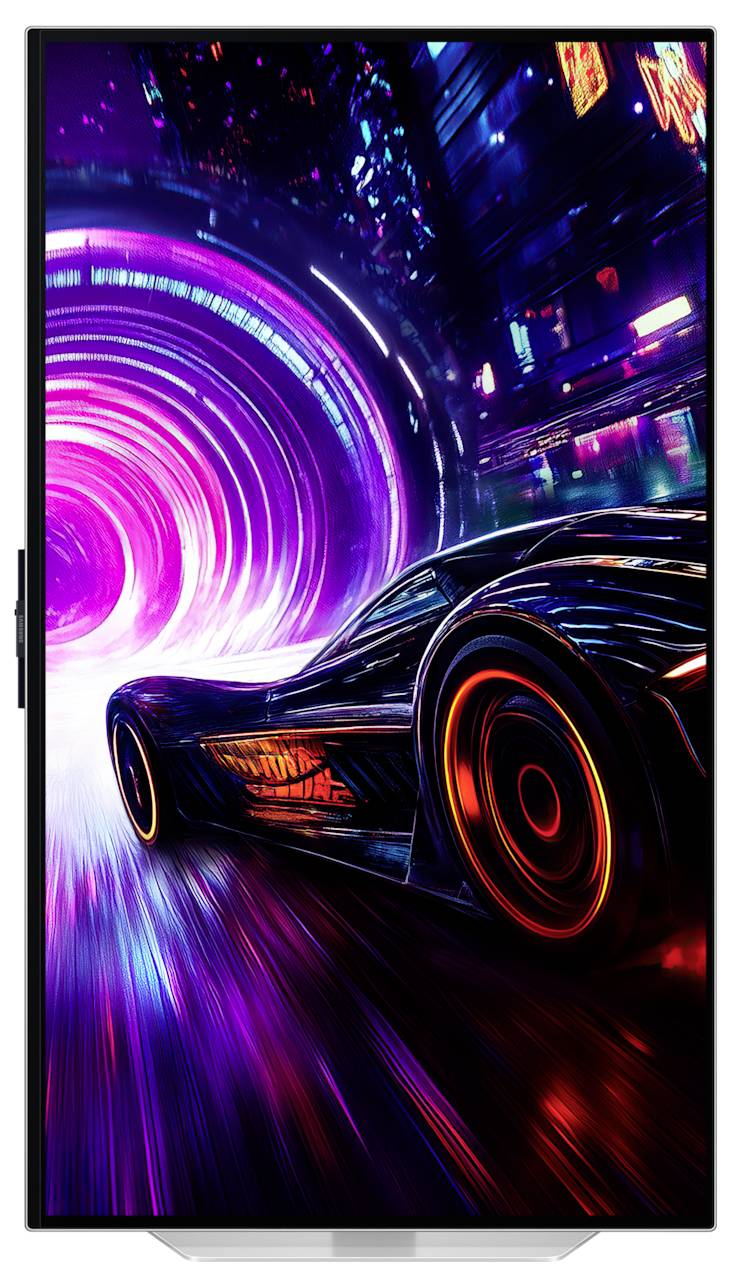

Pivot angle: -92 - 92°

Built-in camera: no

Power cable length: 1.5 m

Tilt adjustment: yes

Viewable size, horizontal: 69.9 cm

Power consumption (max): 180 W

Viewable size, vertical: 39.5 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3478505 Samsung Odyssey OLED G8 LS32FG814SU LED EEC G (A - G) 81.3 cm (32 inch) 16:9 0.03 ms DisplayPort, HDMI™, USB OLED

Description

Faithful detail that inspires
QD-OLED IN 4K
More details for more fun: The 27-inch QD OLED display delivers stunning 4K quality. With an extremely high pixel density of 166 PPI and a large color scale each scene is almost brought to life.

Full focus on the goal

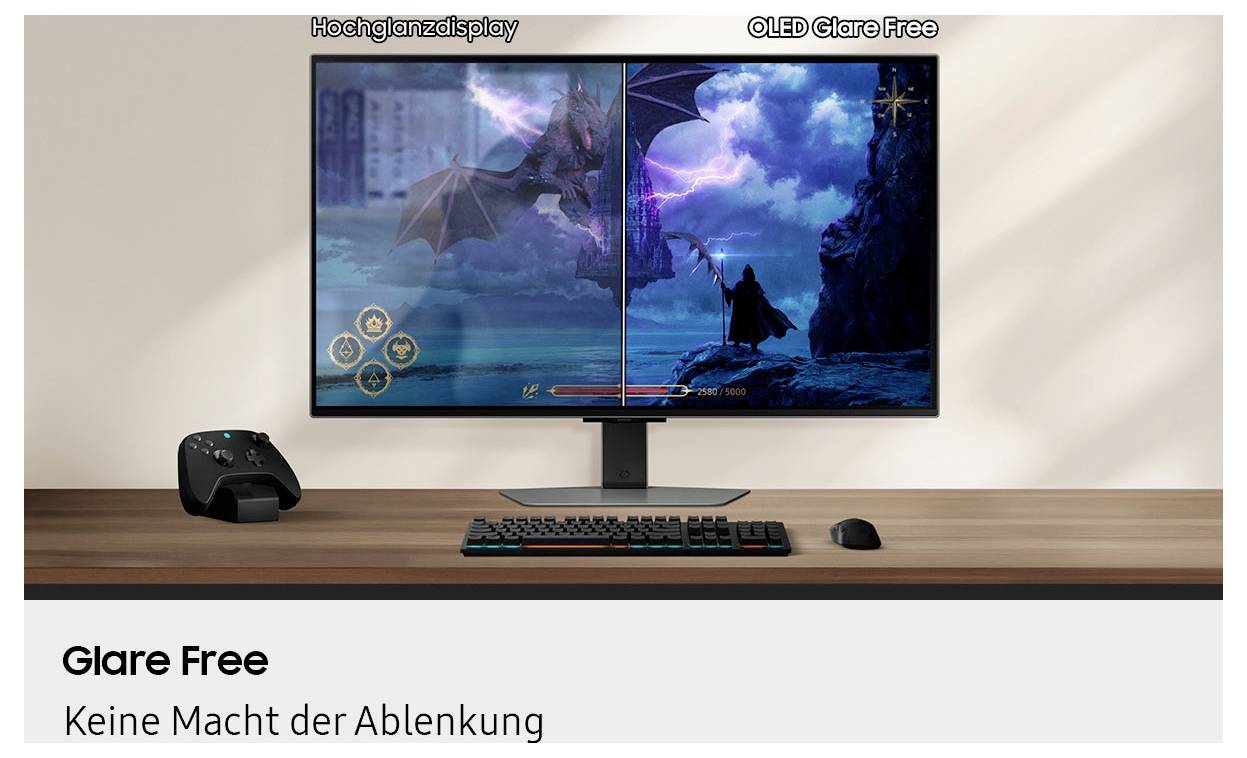

Glare-free
No power of distraction: Glare-free technology provides high color accuracy and reduces reflections with a constant sharpness. This enables an impressive gaming experience even in daylight. With the OLED-optimized, low-reflection coating, which reflects 54% less than surfaces without the appropriate coating, you can easily see content on the display and your opponents
[1]
switch the inside off.

Discover hidden secrets in the dark depths
VESA DisplayHDR™ TrueBlack 400
Experience an impressive color and depth effect in every game. With VESA DisplayHDR™ TrueBlack 400, you can enjoy rich black tones without Light Bleed. This also intensifies contrast and color depth so that even the dark scenes are brought to life.

Quickly at your destination
240 Hz picture repetition rate and 0.03 ms response time
Get ready for the intensive gaming sessions and experience a smooth game play as well as sharp images thanks to a refresh rate of 240 Hz and a response time of 0.03 ms (GtG).

Seamless smooth gameplay
AMD FreeSync Pro premium
The graphics processor and panel synchronized with each other can reduce jerks, delays and picture cracks and are also ready for intensive gaming sessions.

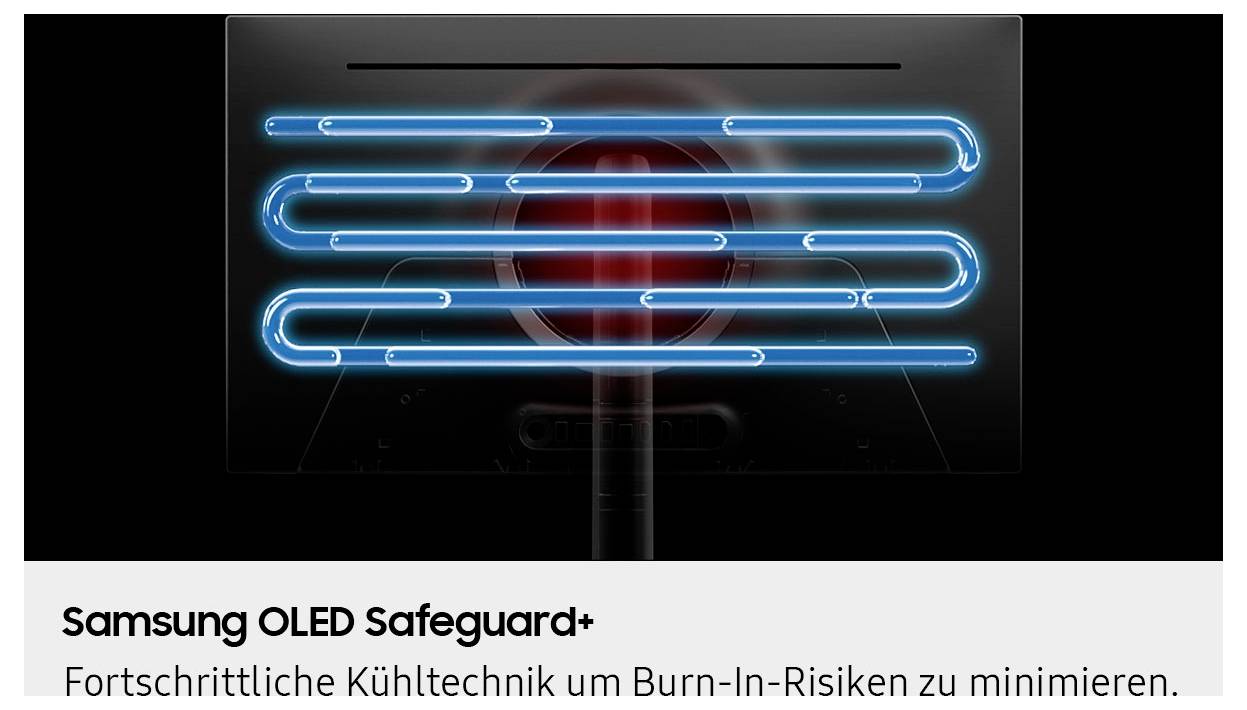

Samsung OLED safety guard
Dynamic cooling system
For the first time in the history of Samsung a "pulsating heatpipe" has been installed in the monitor, in order to prevent burning. The dynamic cooling system uses a cooling fluid that distributes heat within the monitor five times faster than with graphite plates, which reduces the temperature in the Kern so that burn-ins can be avoided.

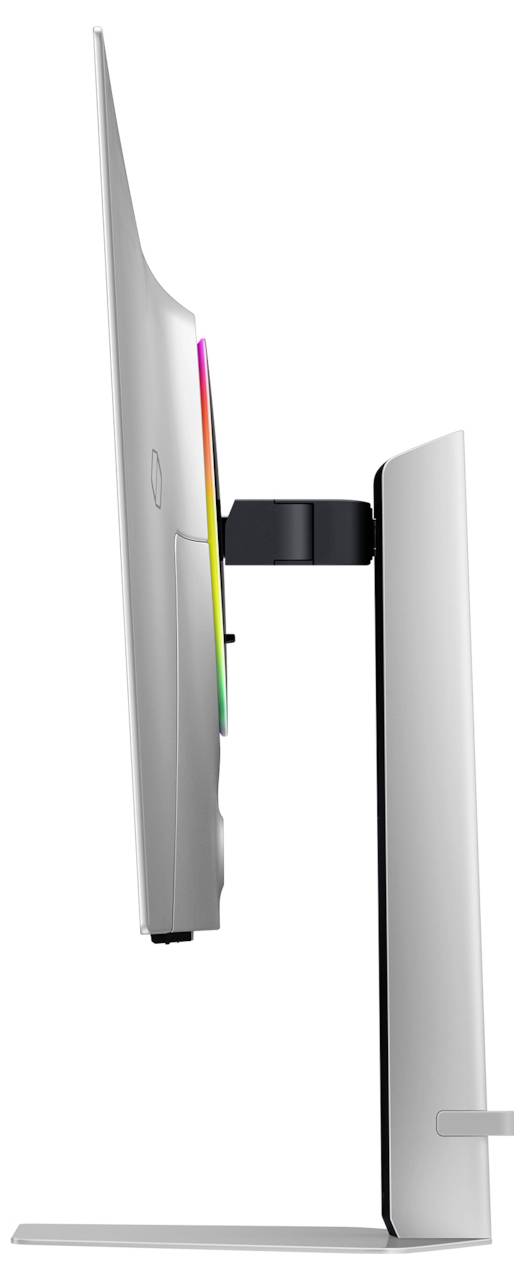

Looks good everywhere

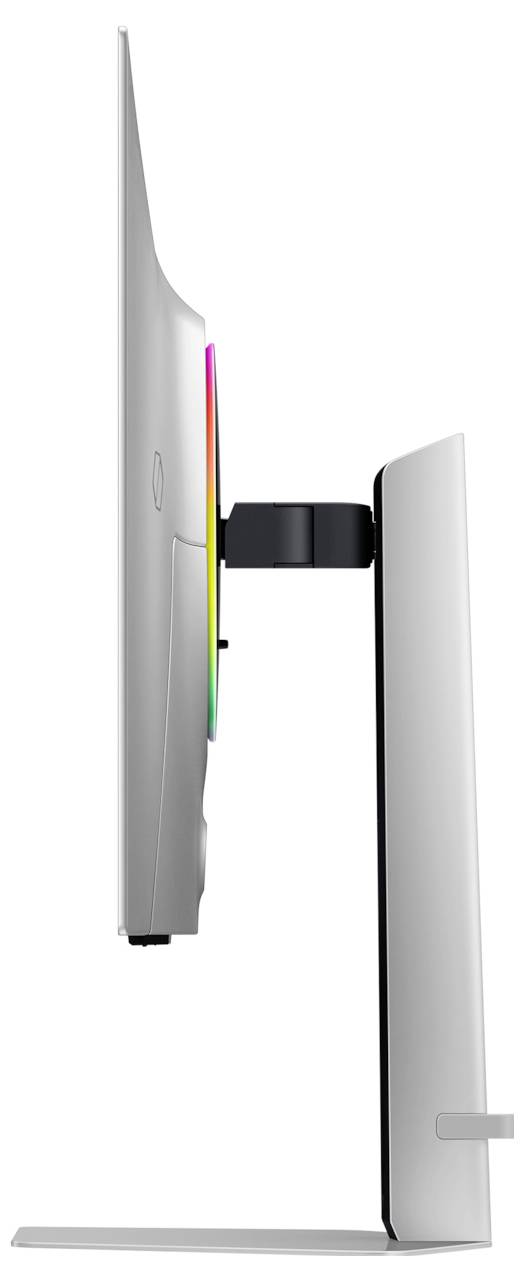

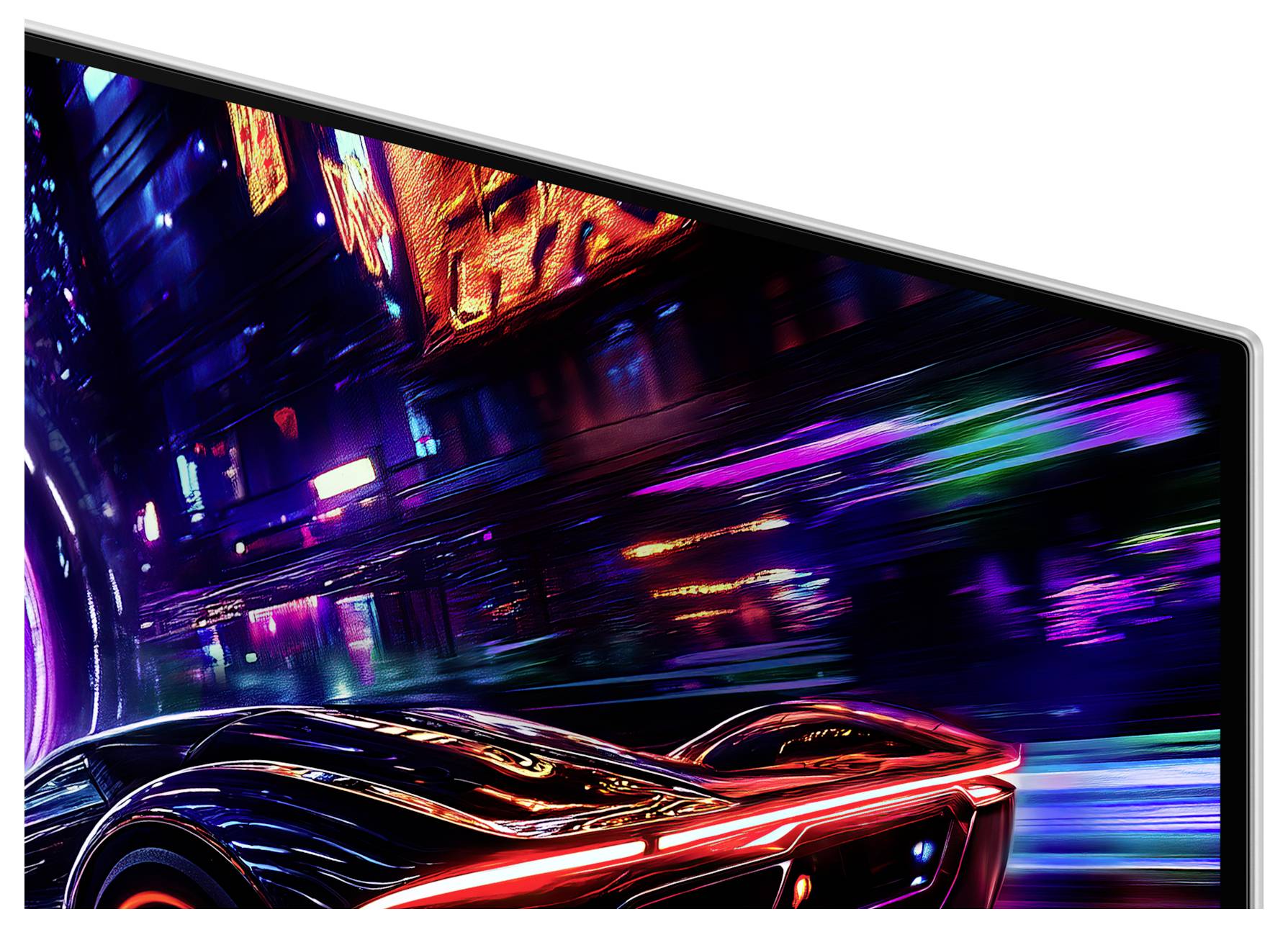

Slim metal design
Give your gaming station a personal touch with our slim and elegant design. With a high-quality and modern metal finish, the fascinating Odyssey OLED G8 will justice to your sense of style.

Developed to light your world

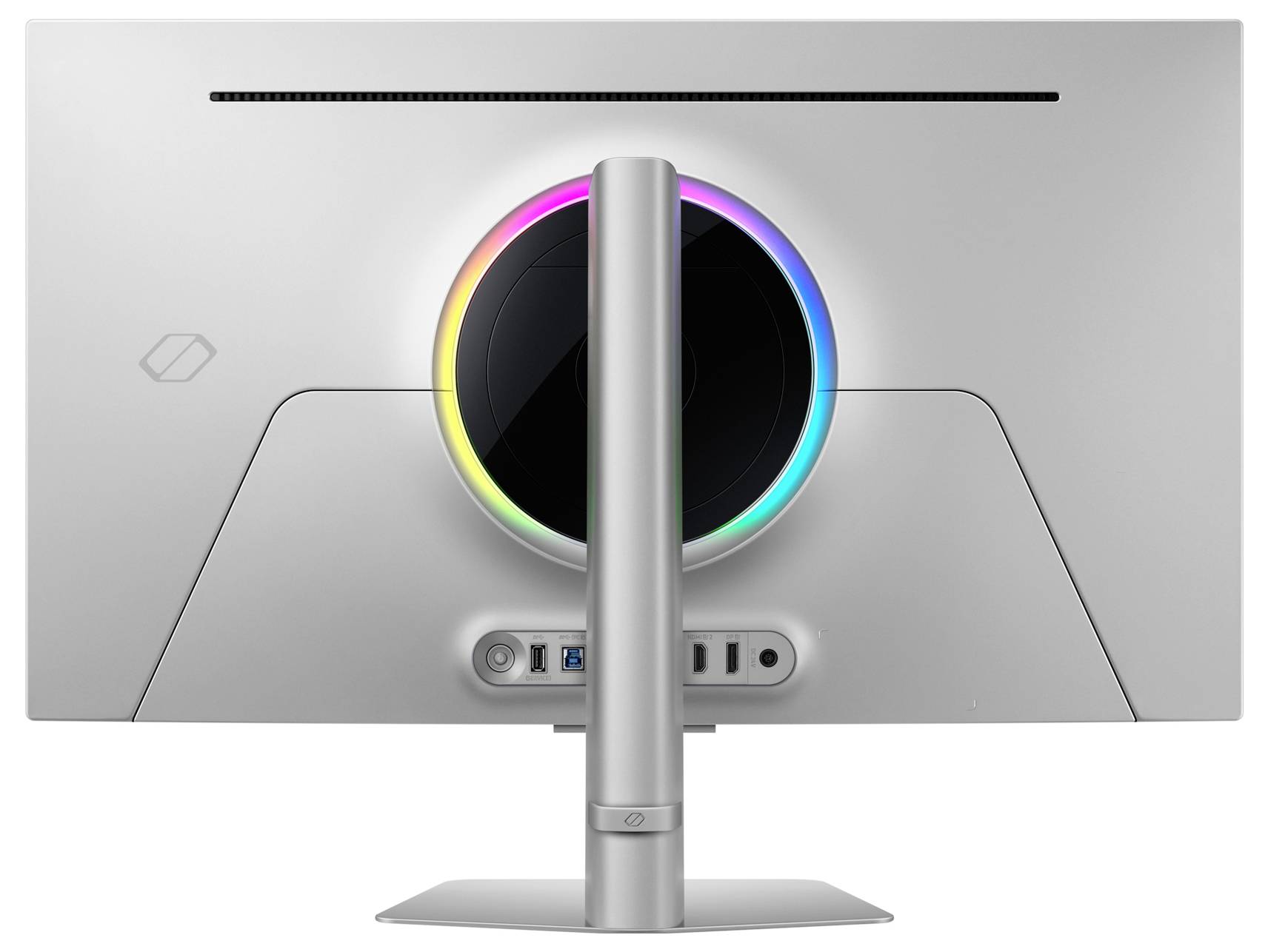

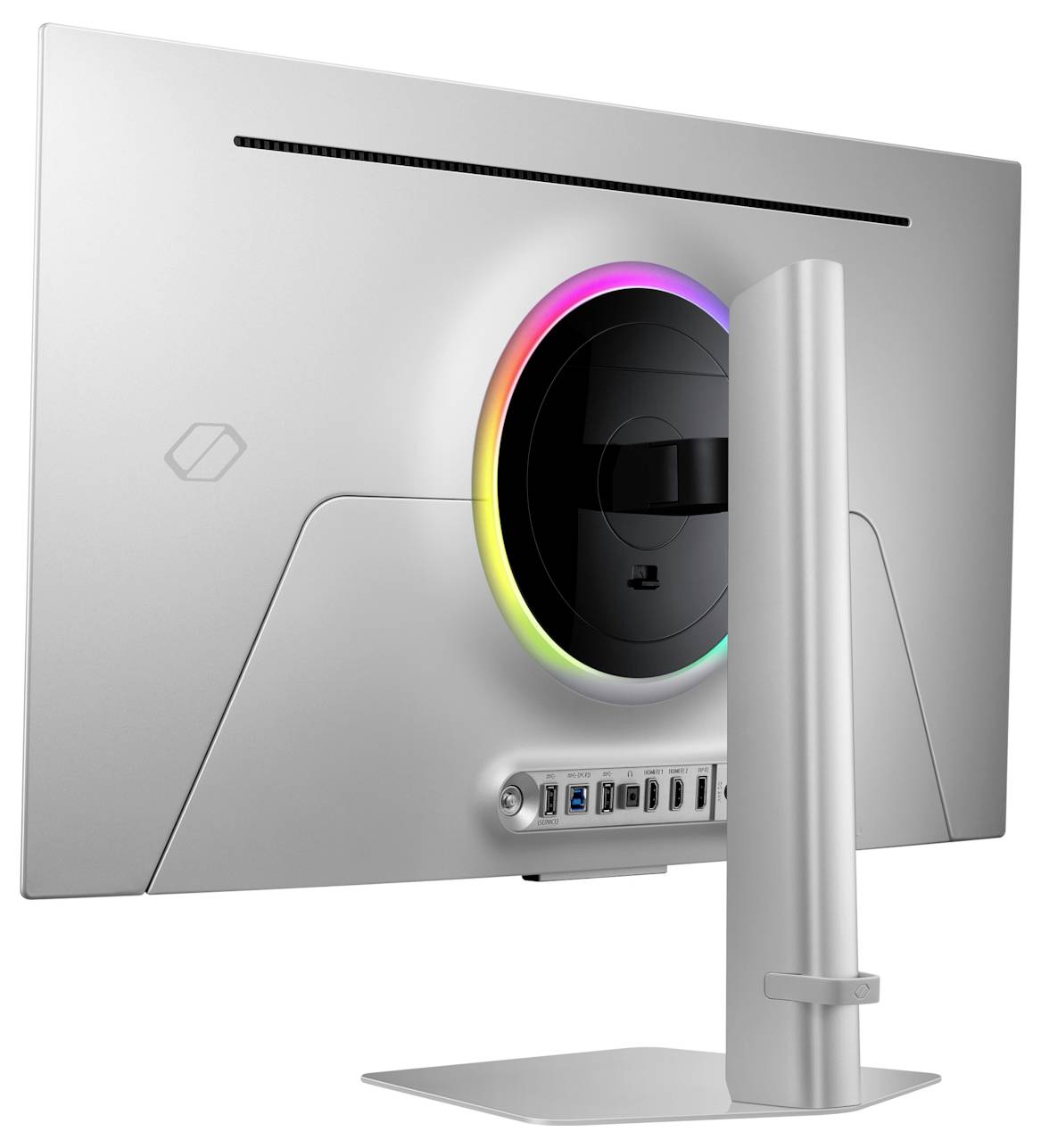

CoreSync and CoreLighting+
Create the right atmosphere for gaming. With CoreSync technology, the colors of your game jump with 16.7 million nuances as from the display to your reality. And with CoreLighting+ you can surround yourself with impressive lighting in every scene.

Near to victory

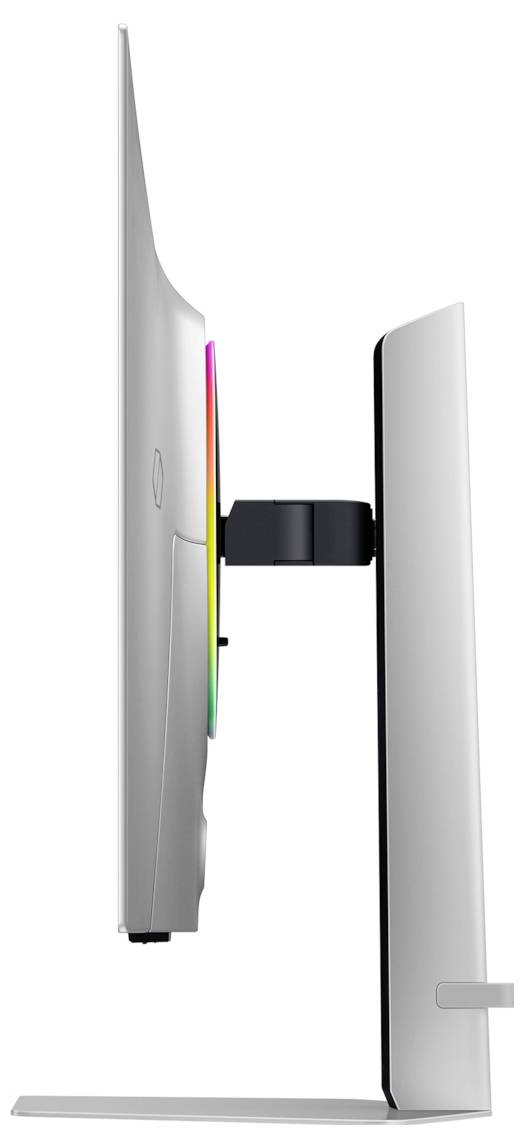

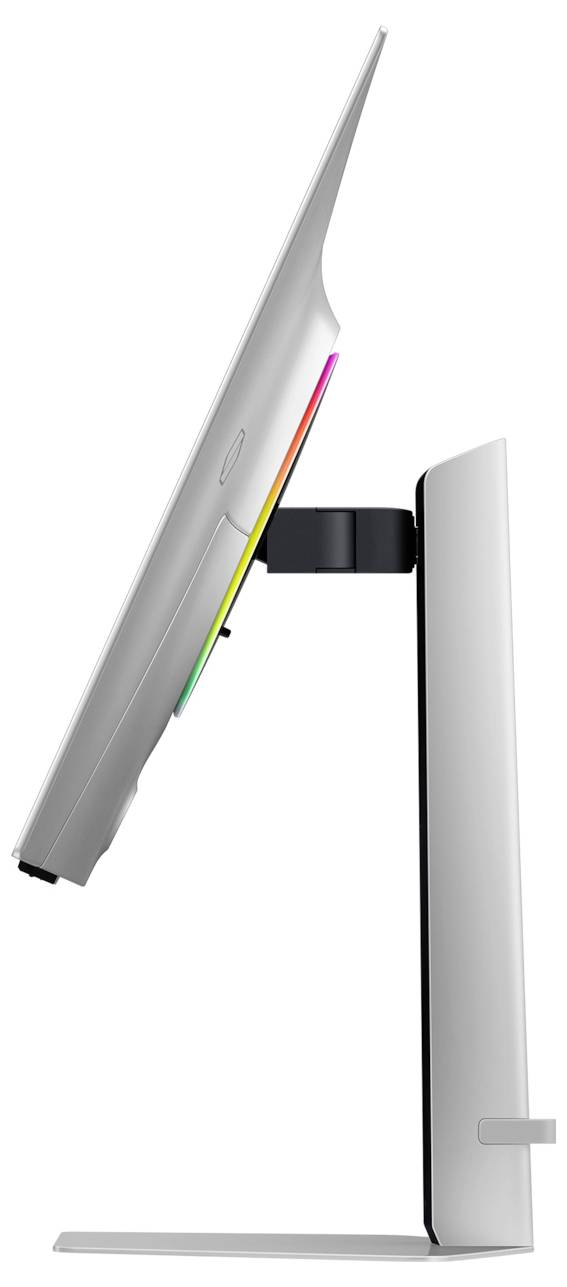

Ergonomic pedestal
Enjoy the high flexibility and a lot of comfort: Your monitor can be adjusted and tilted in height, so that you can always keep an eye on your opponents.

This text is machine translated.
