Buy Satechi USB-C® docking station ST-D4KTM-EU

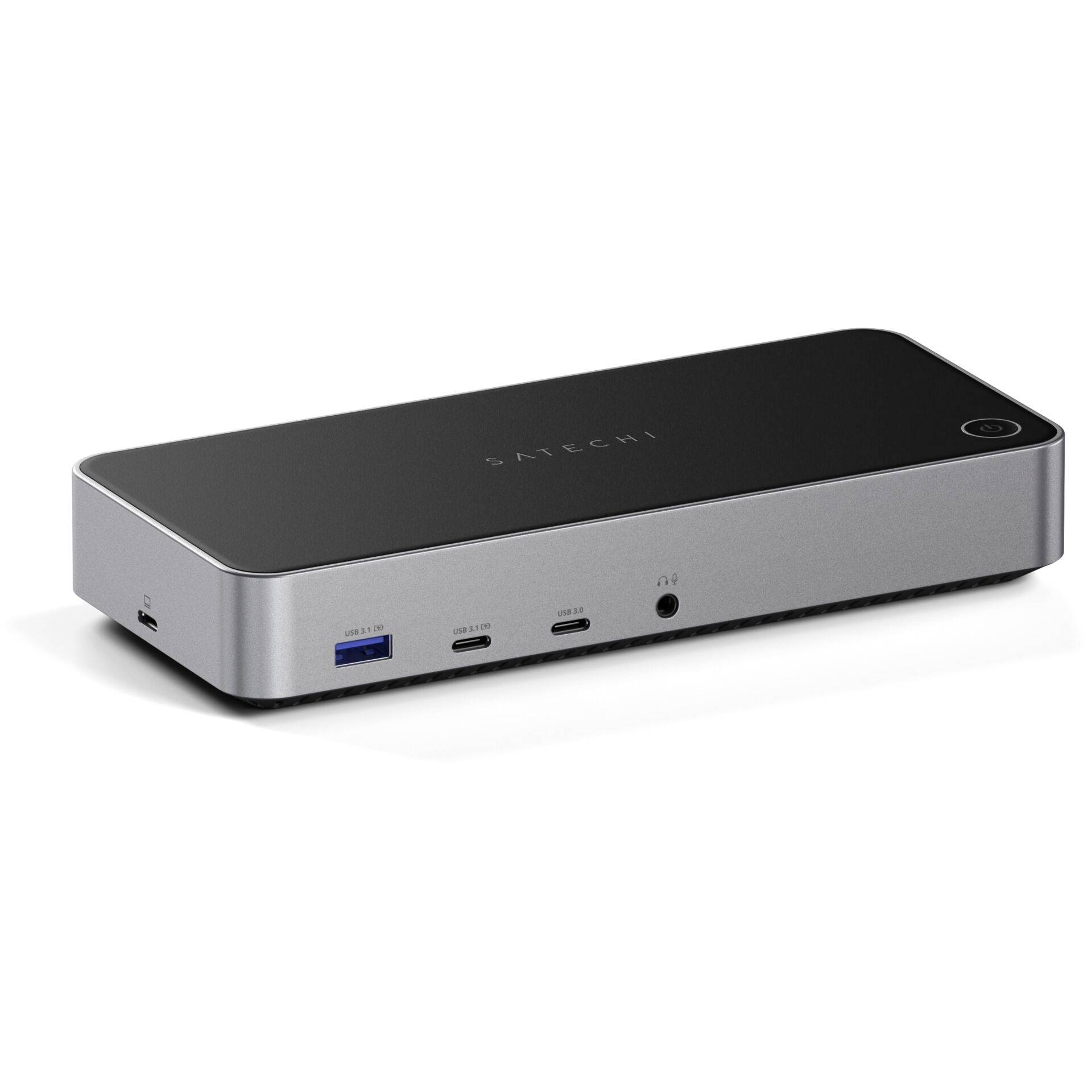

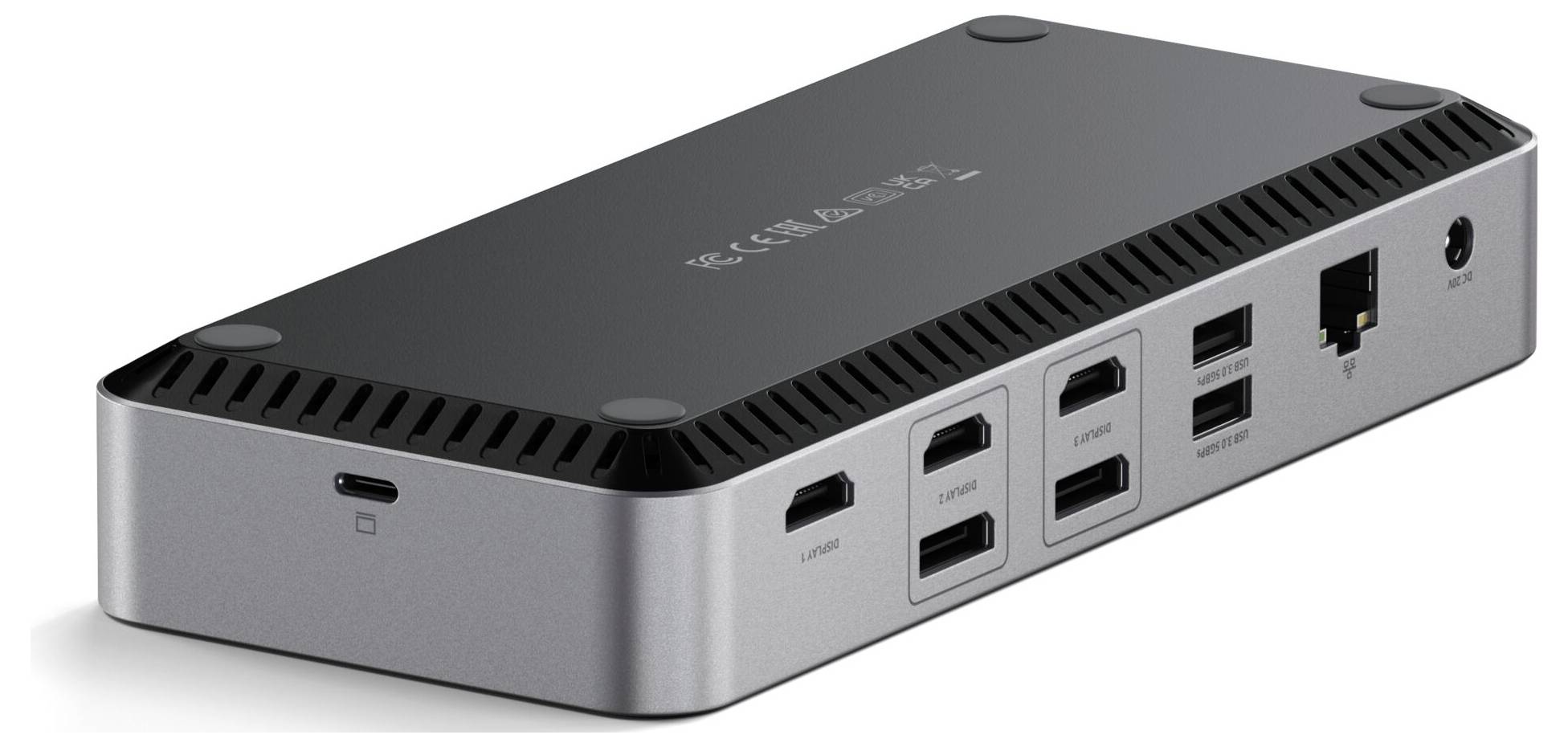

A silver USB hub with multiple ports, including USB-C and network connection. It is used for connecting several devices.

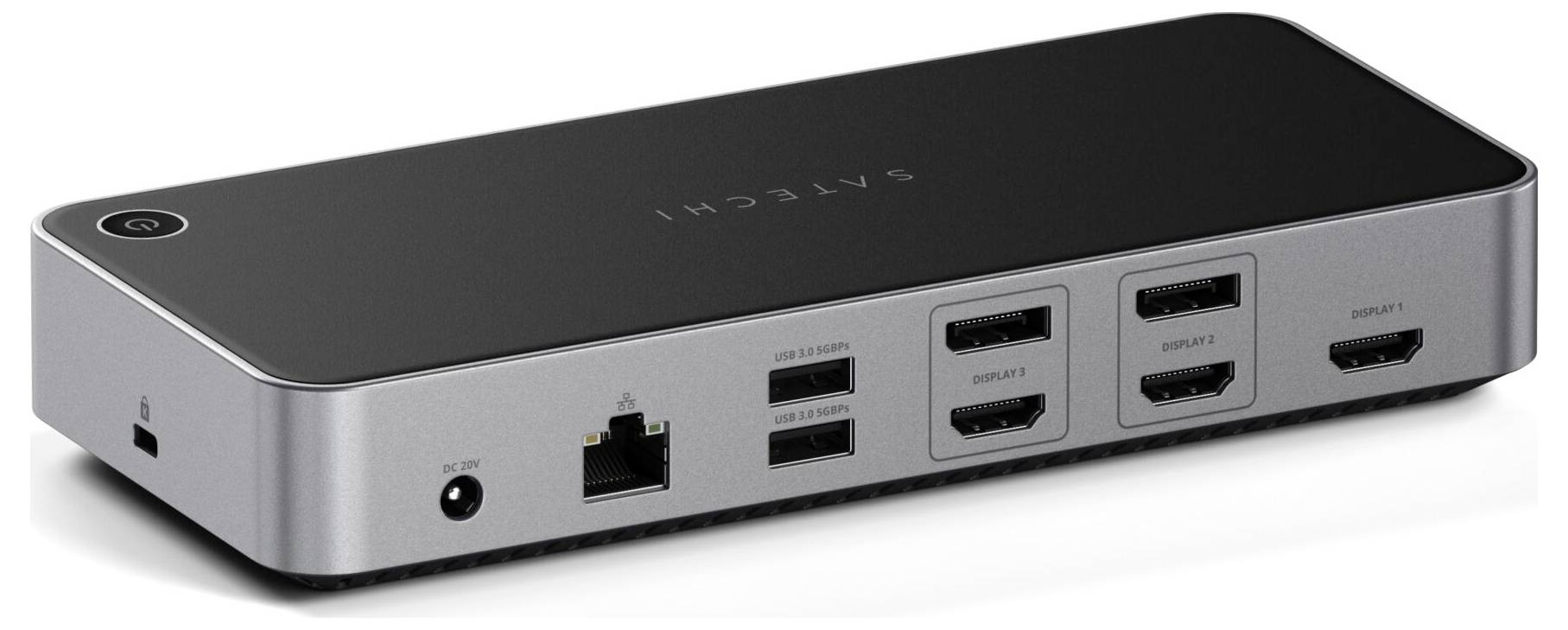

A docking station device with multiple HDMI and USB ports, as well as an Ethernet port. 'Satechi' branding visible.

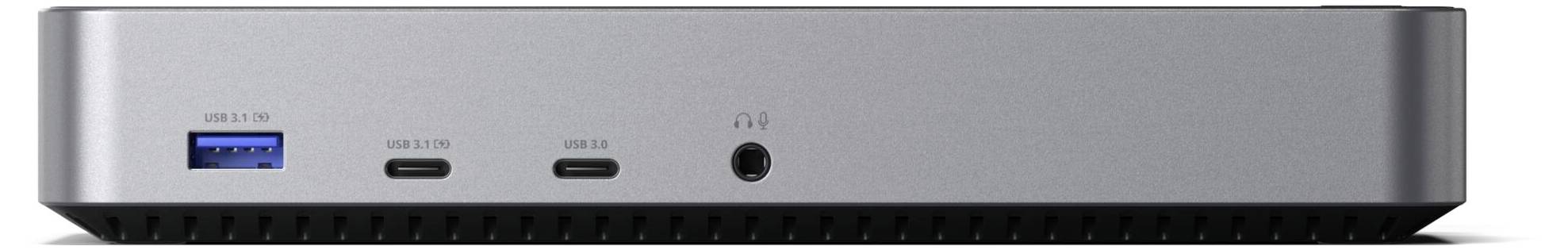

A compact, rectangular computer in silver with multiple ports on the front, including USB and audio connections.

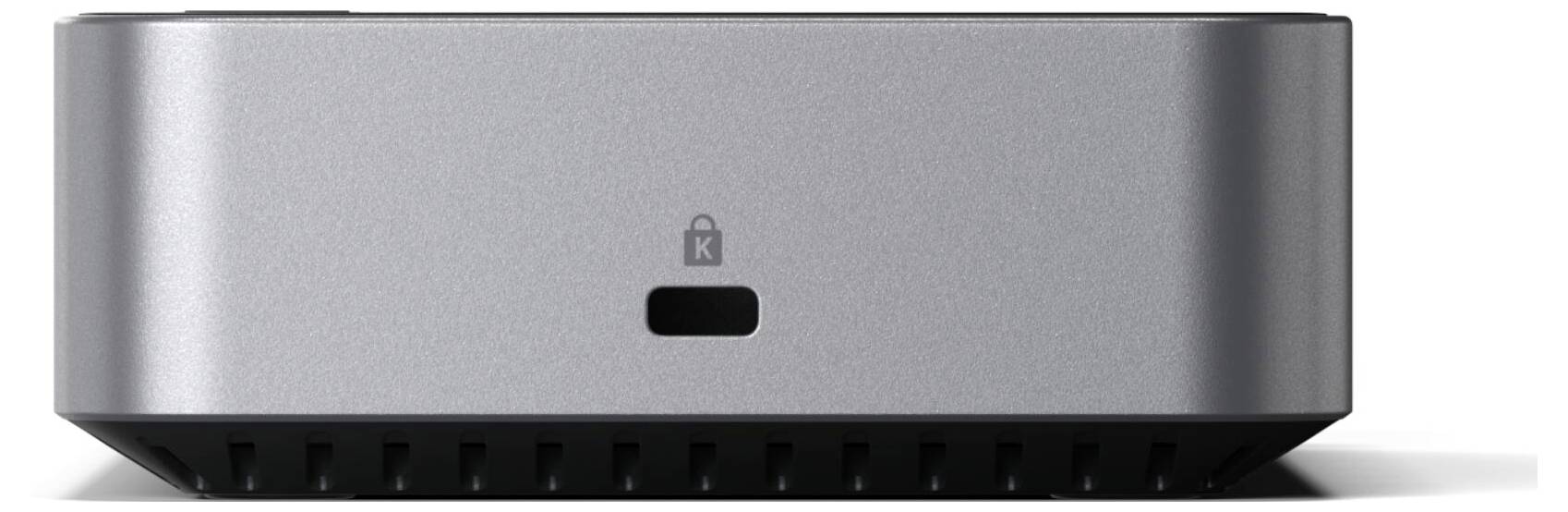

Grey computer with a rectangular ventilation slot and a lock symbol in the centre, showing a front view and minimalist design.

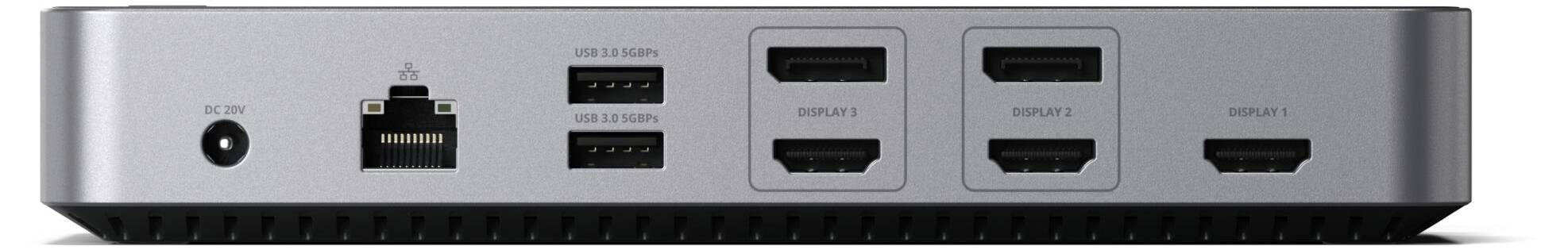

Back of a compact computer with multiple ports: power, Ethernet, four USB, and two HDMI ports, highlighted.

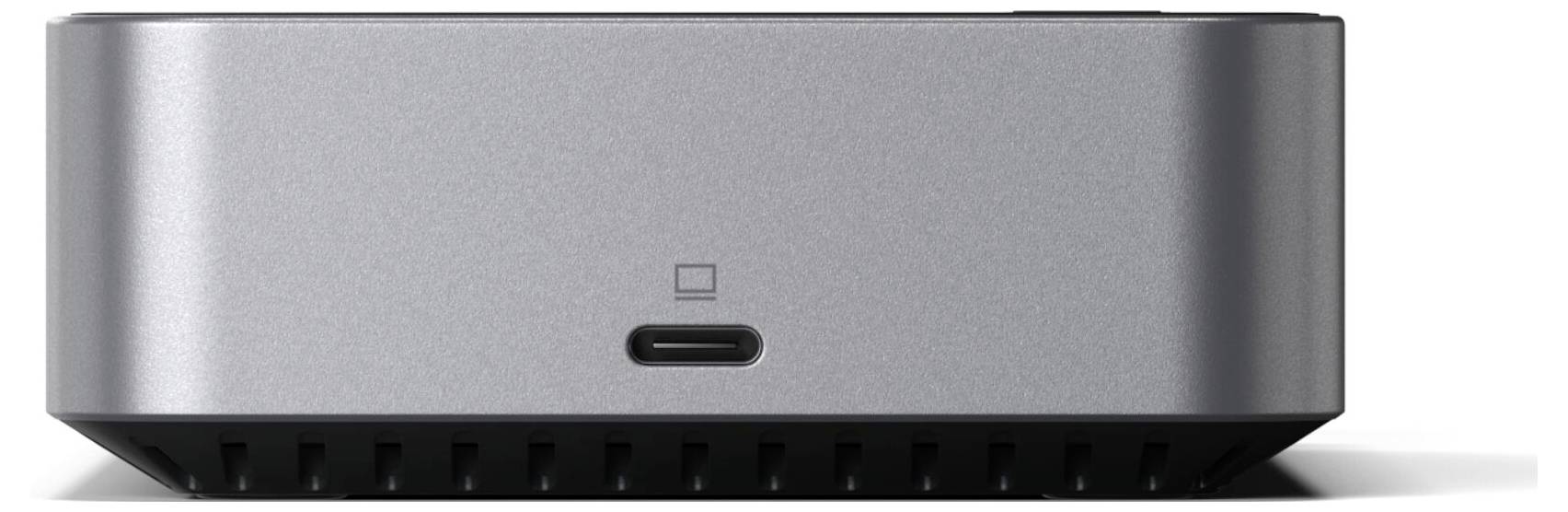

Grey, rectangular electronic device with USB-C port at the front.

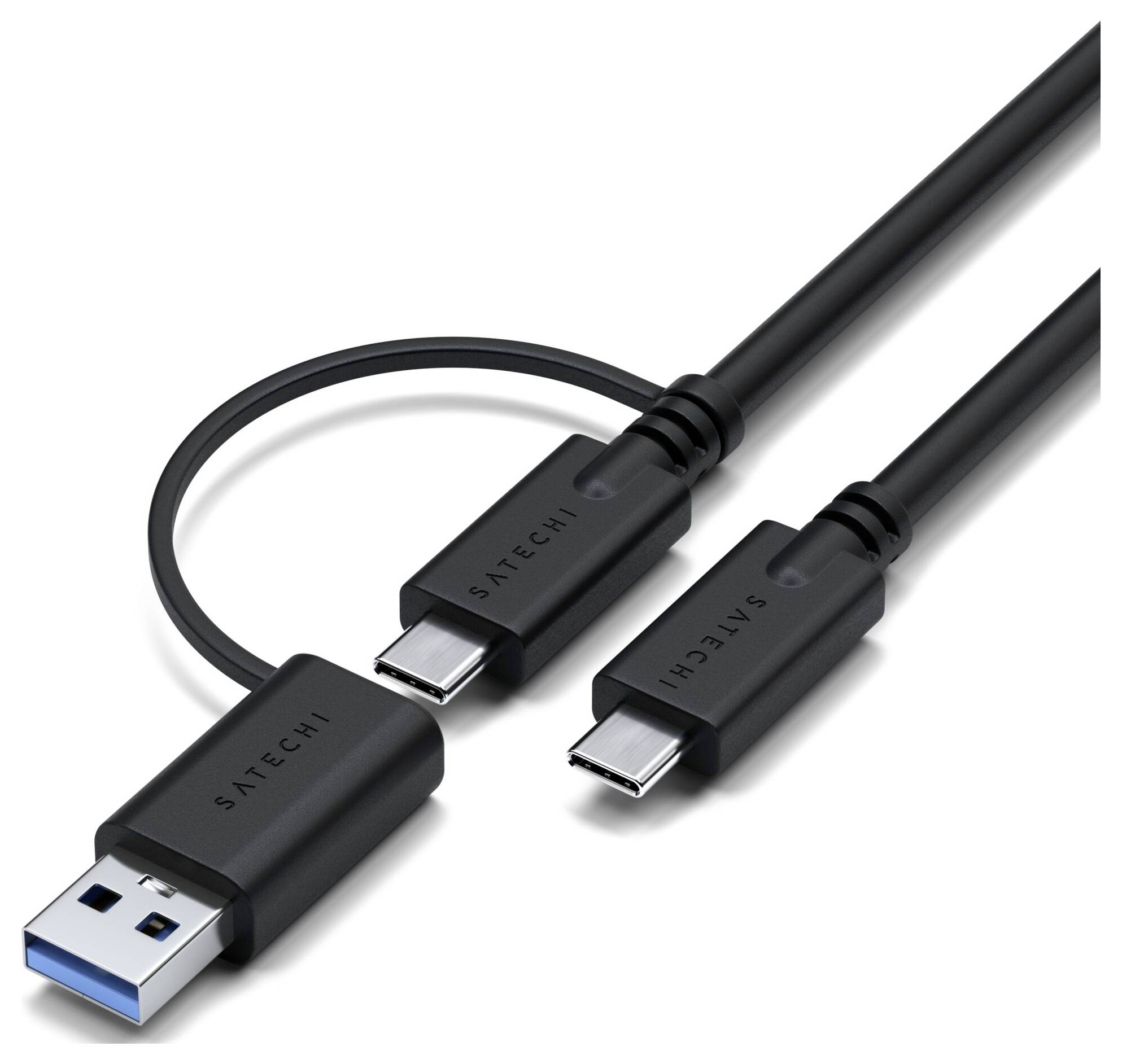

USB cable with USB-A plug on one side and two detachable USB-C and Micro-USB plugs on the other.

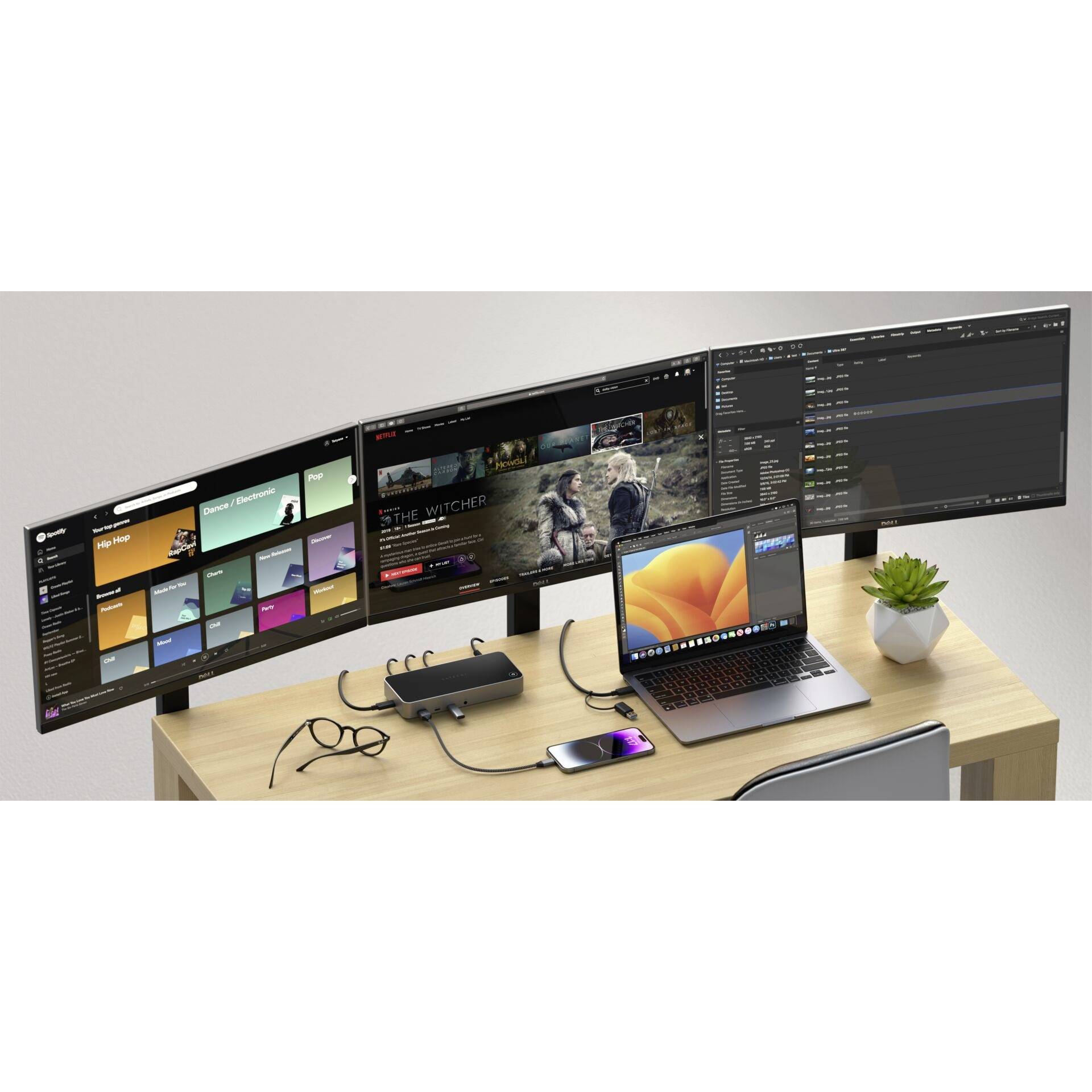

A desk with three monitors displays various applications, with a laptop and smartphone connected, and a plant beside them.

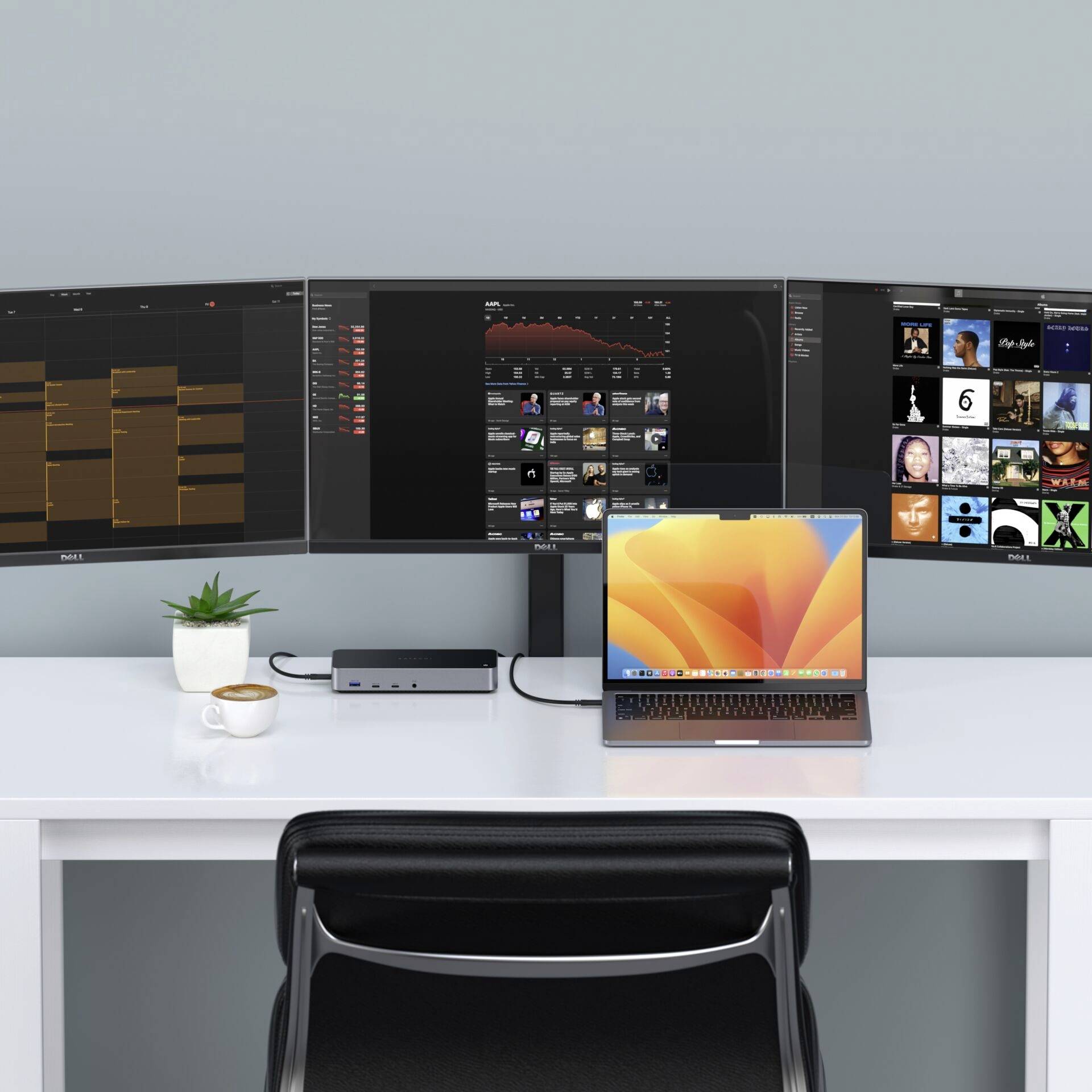

A desk workspace with a laptop, plugged into multiple monitors, with a plant and a mug on a white desk.

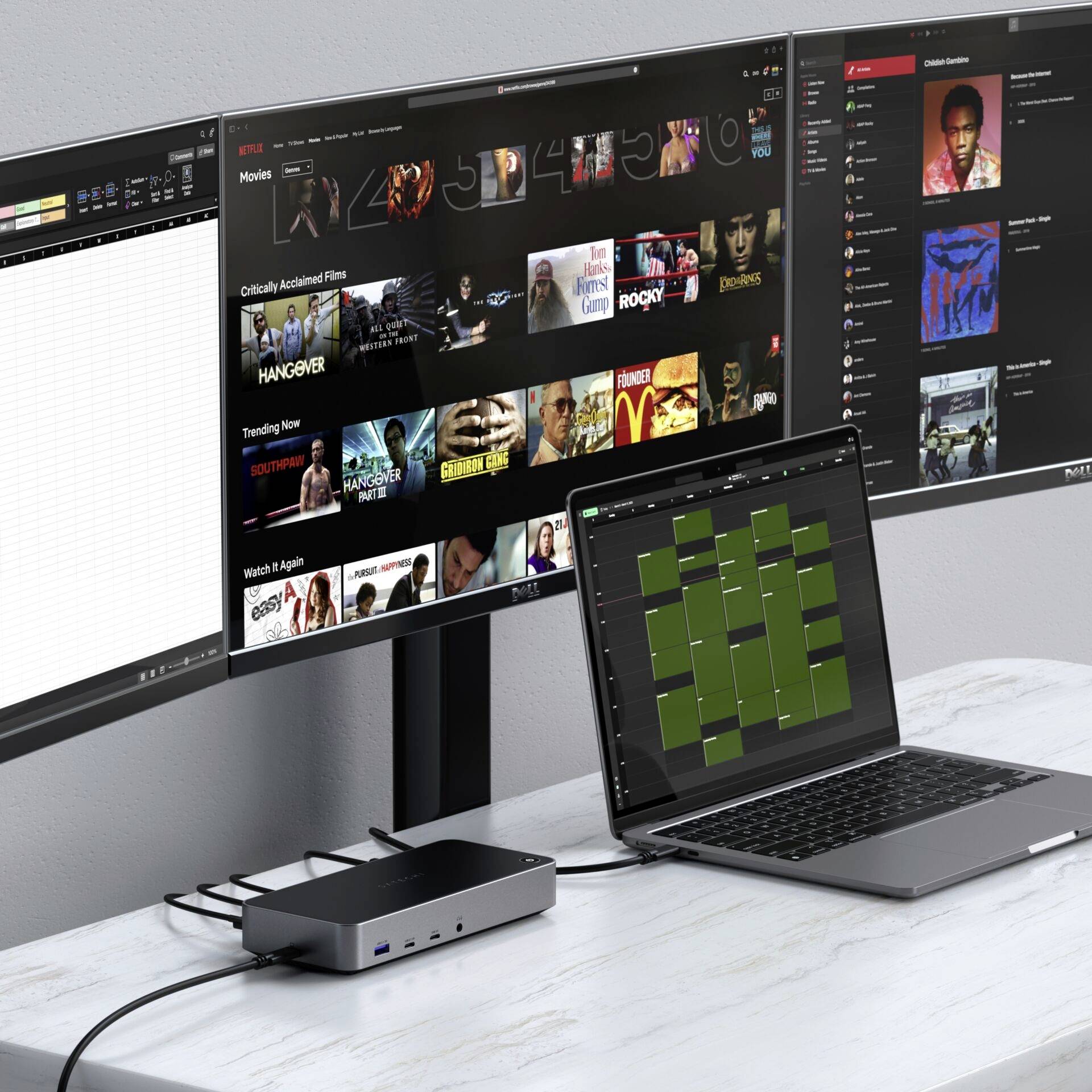

A desk with multiple monitors displays various digital content such as films and music. A laptop shows a calendar.

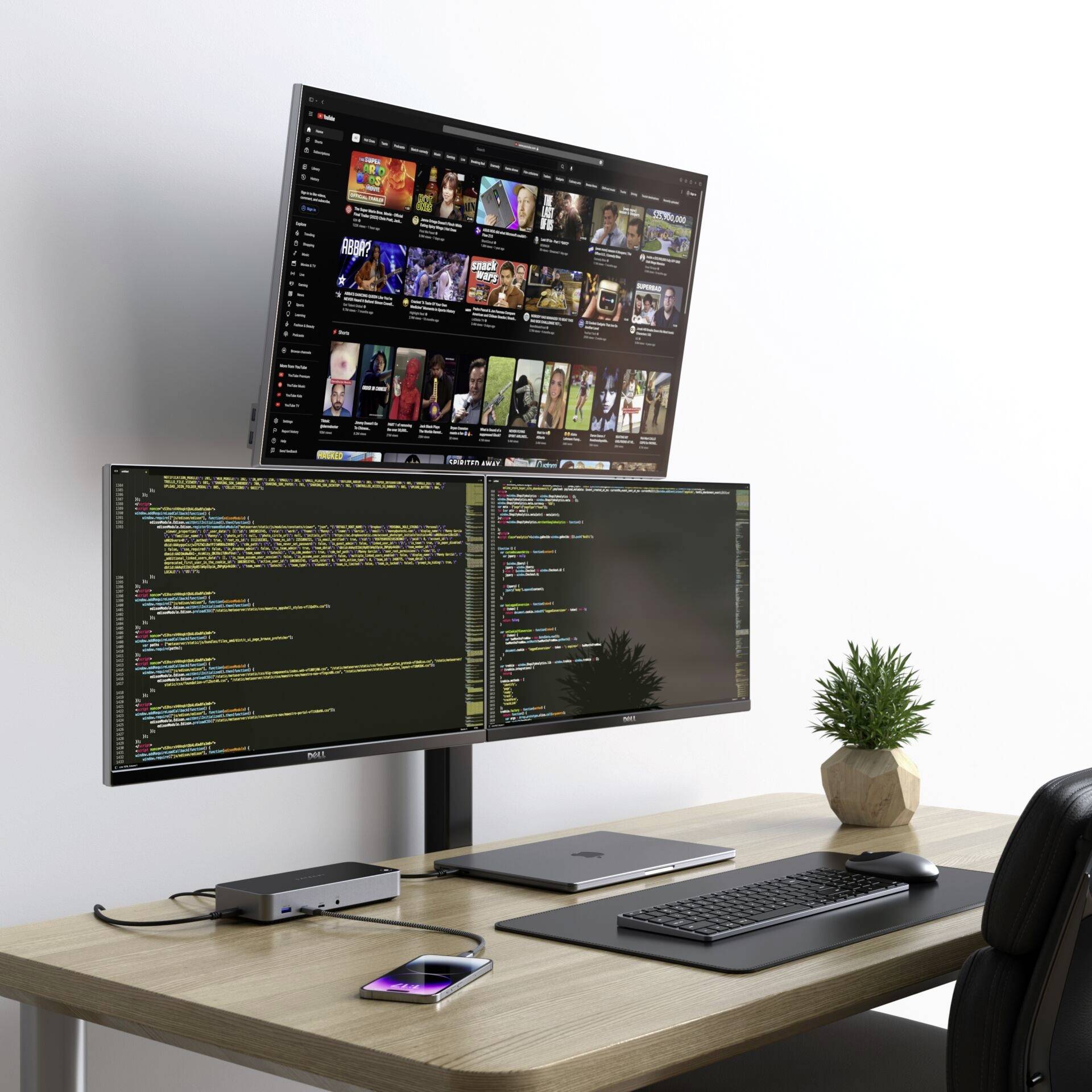

Two computer monitors on a desk: Two display programming code, the third shows a video portal. Along with a laptop, keyboard, mouse and plant.

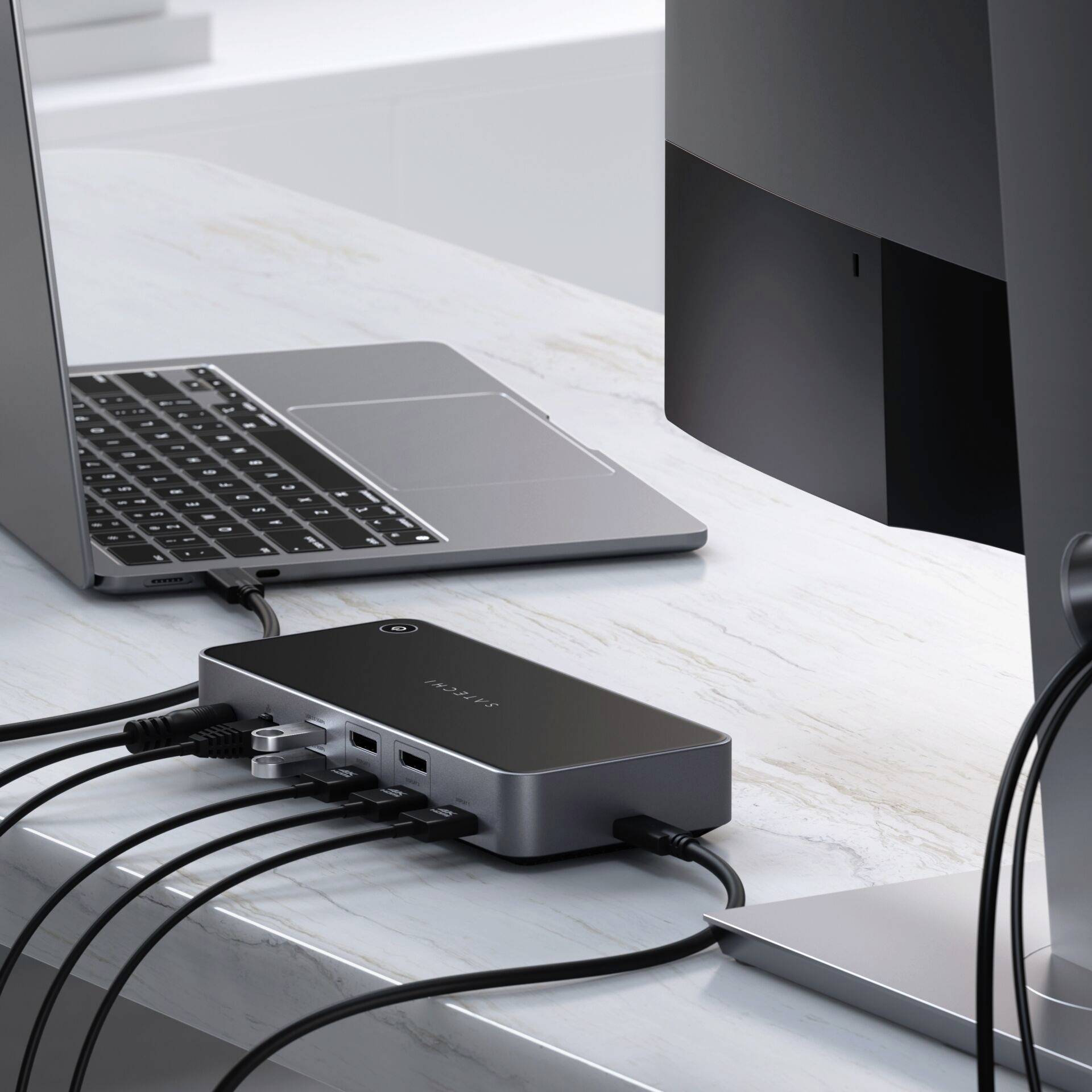

A laptop and a monitor are connected via a compact docking station on a table, which offers multiple cable ports.

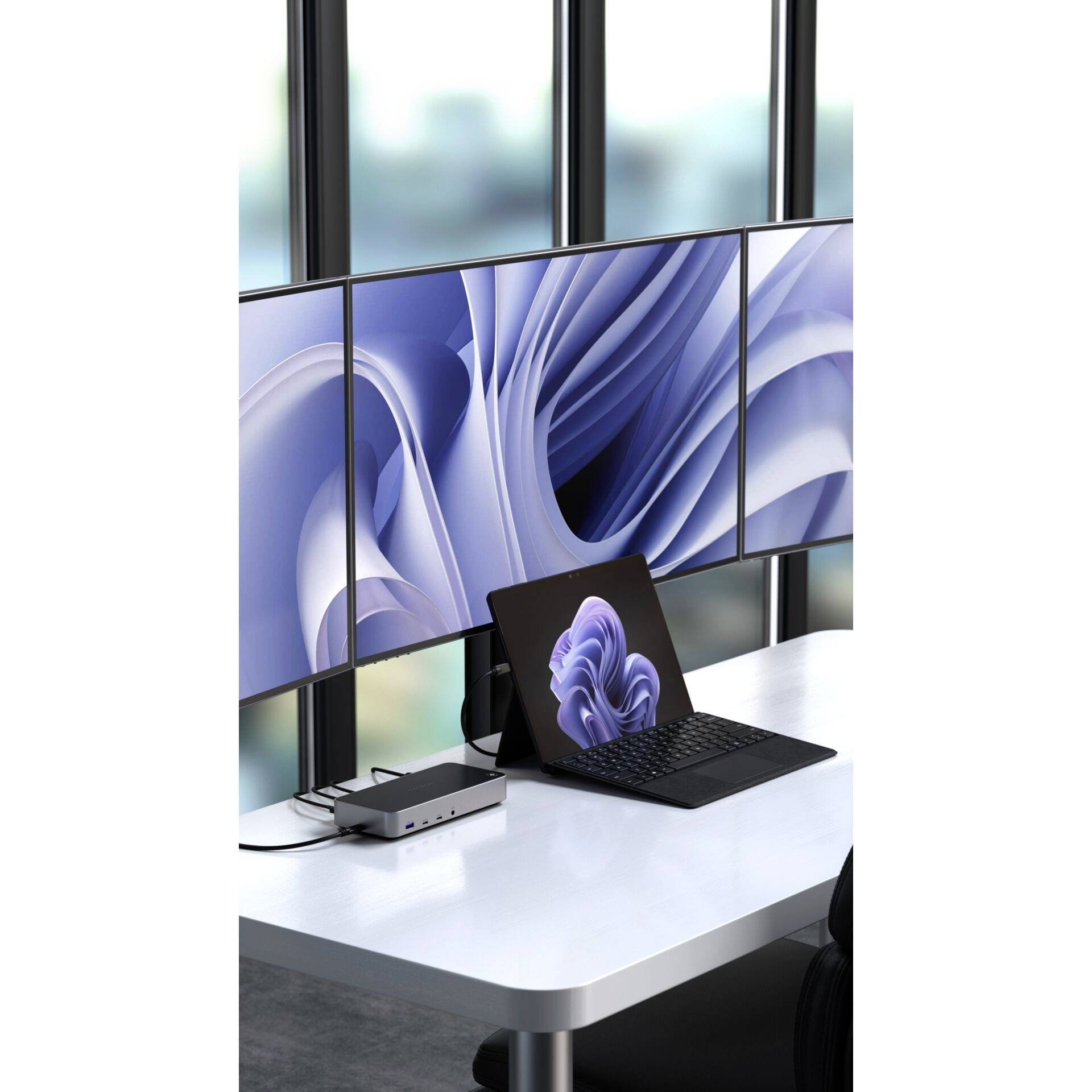

A modern desk featuring multiple screens displays abstract blue patterns, with a laptop and docking station also visible.

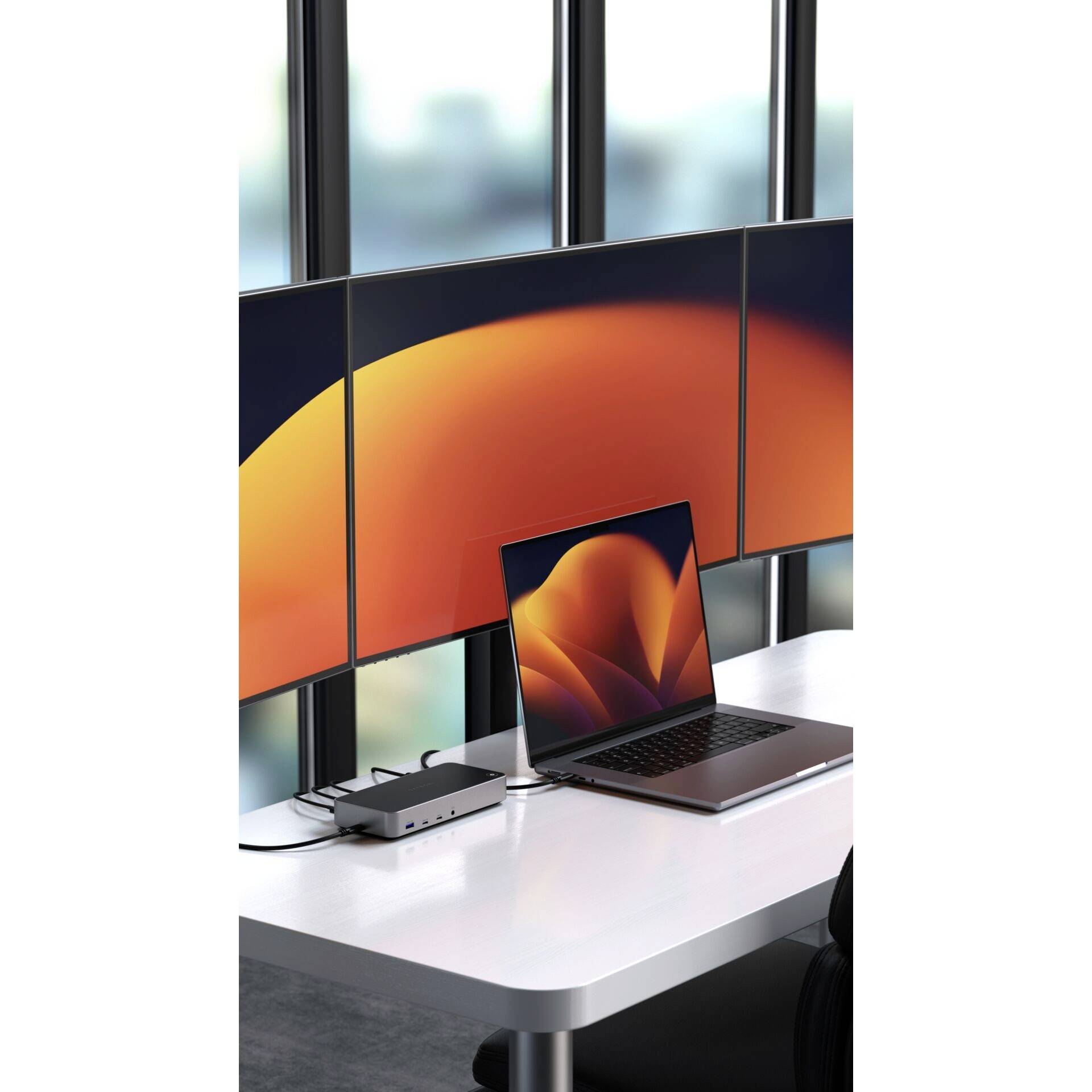

A laptop on a table is connected to a docking station and controls four large monitors with a luminously warm screen background.

1/15

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Satechi ST-D4KTM-EU USB-C® docking station

Connection A (or inputs): USB-C®
Connecton B (or outputs): USB-A, DisplayPort, HDMI®, USB-A, RJ45, Jack socket 3.5 mm, USB-C®, USB-C®
No. of supported monitors:
Maximum resolution:
Key features:

Technical specifications

Type 1x USB-C
Colour: Black / silver
Weight (g): 278
Width (mm): 191
Height (mm): 32
Depth (mm): 85
Feature 2: Jack-3-5-mm-socket
Power supply mains adapter
Max. Data transfer rate (Gbps): 10
Type 1: 1x USB-A 3.0
Number of type 1: 1x
Type 2: DisplayPort
Number of type 2: 2x
Type 3: HDMI
Number of type 3: 3x
Type 4 USB-A 3.1
Number of type 4: 1x
Type 5: LAN (RJ45)
Number of type 5: 1x
Type 6: Jack 3.5 mm
Number of type 6: 1x
USB-c-3-0 port
Type 7 USB-C 3.0
Number of type 7: 1x
Type 8 USB-C 3.1 1st Gen 2
Number of type 8: 1x

Product type: USB-C® docking station

Type A: USB-C®

Type B: USB-A
DisplayPort
HDMI®
USB-A
RJ45
Jack socket 3.5 mm
USB-C®
USB-C®

Factory colour: Black
Silver

Width: 191 mm

Height: 32 mm

Depth: 85 mm

Weight: 278 g

Dim: (W x H x D) 191 x 32 x 85 mm

Screen size diagonal (inches): 24 inch

PSU features: Quick charger

Input voltage: 20 V

Max. output current: 2.6 A

: 100 W

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3304937 Satechi USB-C® docking station ST-D4KTM-EU

Description

The high-performance Satechi Triple 4K display docking station is an ideal extension for the productive workplace. The innovative docking station has twelve connection possibilities, including two DisplayPort 1.4, three HDMI ports, two USB-C and three USB-A ports. Gigabit Ethernet and an audio jack are also available. The innovative Docking station is thus compatible with MacBooks and Windows computers. Thanks to the DisplayLink Technology, a high-resolution screen quality of 4K / 60 Hz can be generated. The required software DisplayLink Manager enables a direct linking of three additional screens, so that a total of four screens can be worked on. In this way, the performance of the MacBook is fully utilized and the laptop is used as the ultimate work place. One USB-C and one USB-A port each enable data transfer at up to 10 Gbps and a charging power of 7.5 watts. The 130-watt power supply included in the delivery charges the MacBook with up to 100 watt. The innovative ventilation opening on the bottom of the unit provides improved air circulation for the unit.

Powerful triple 4K display docking station for more productivity.

Supports up to three additional 4K/60 Hz screens.

Universal compatibility thanks to DisplayLink-Software.

A total of twelve powerful connection possibilities: 2 x DisplayPort 1.4 4K/60 Hz: DisplayLink Software required, 3 x HDMI 2.0 ports 4K/60 Hz: 2 x via DisplayLink Software, 1 x DisplayPort ethernet mode for video streaming, 1 x USB-A 3.1 (2. Generation) 10 Gbps, charging at 7.5 Watt, 2 x USB-A 3.0 ports: 5 Gbps, 1 x USB-C 3.1 (2. Generation): 10 Gbps, charging with 7.5 watts, 1 x USB-C 3.0 ports: 5 Gbps, Gigabit Ethernet port, 20 V power connector, audio port input / output

2 x DisplayPort 1.4 4K/60 Hz: DisplayLink Software required

3 x HDMI 2.0 ports 4K /60 Hz: 2 x via DisplayLink Software, 1 x DisplayPort Alt mode for video streaming

1 x USB A 3.1 (2. Generation): 10 Gbps, charging with 7.5 watts

2 x USB A 3.0 connections 5 Gbps

1 x USB C 3.1 (2. Generation): 10 Gbps, charging with 7.5 watts

1 x USB-C 3.0 connection 5 Gbit/s

1 x Gigabit Ethernet connection

20 V power connection

Audio input/output socket

With 130 watt power supply (DC / 20 V connection) for 100 watt charging at the host devices connected via USB-C.

Connection possibilities for Kensington-lock

Intelligent heat dissipation with ventilation opening for better air circulation

Compatible with M1 and M2 Macs and other MacBooks and Windows computers

Includes Triple 4K Display Docking Station, USB-A and USB-C cable, 130-Watt power supply

Dimensions (L x W x H) 191 x 85 x 32 mm

Weight: 278 grams

This text is machine translated.
