Satechi USB-C® docking station ST-UCISDS
EAN:
Part number:
Item no:
Satechi ST-UCISDS USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB-A, USB-A, SD, microSD, USB-C®, SATA
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Type 1x USB-C
- Colour silver
- Weight (g): 300
- Width (mm): 279
- Height (mm): 114
- Depth (mm): 10
- USB-a-3-2 port
- Power supply: Via USB
- Max. Data transfer rate (Mbps):480
- Max. Data transfer rate (Gbps): 10
- Type 1 USB-A 3.2
- Number of type 1: 1x
- Type 2 USB-A 2.0
- Number of type 2: 2x
- Type 3: SD
- Number of type 3: 1x
- Indicator light: Yes
- Type 4: MicroSD
- Number of type 4: 1x
- Type 5: 1x USB-C.
- Number of type 5: 1x
- Type 6 SATA
- Number of type 6: 1x
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-A
USB-A
SD
microSD
USB-C®
SATA
- Cable length
0 cm
- Factory colour
Silver
- Width
279 mm
- Height
114 mm
- Depth
10 mm
- Weight
300 g
- Dim
(W x H x D) 279 x 114 x 10 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3304922 Satechi USB-C® docking station ST-UCISDS
Description

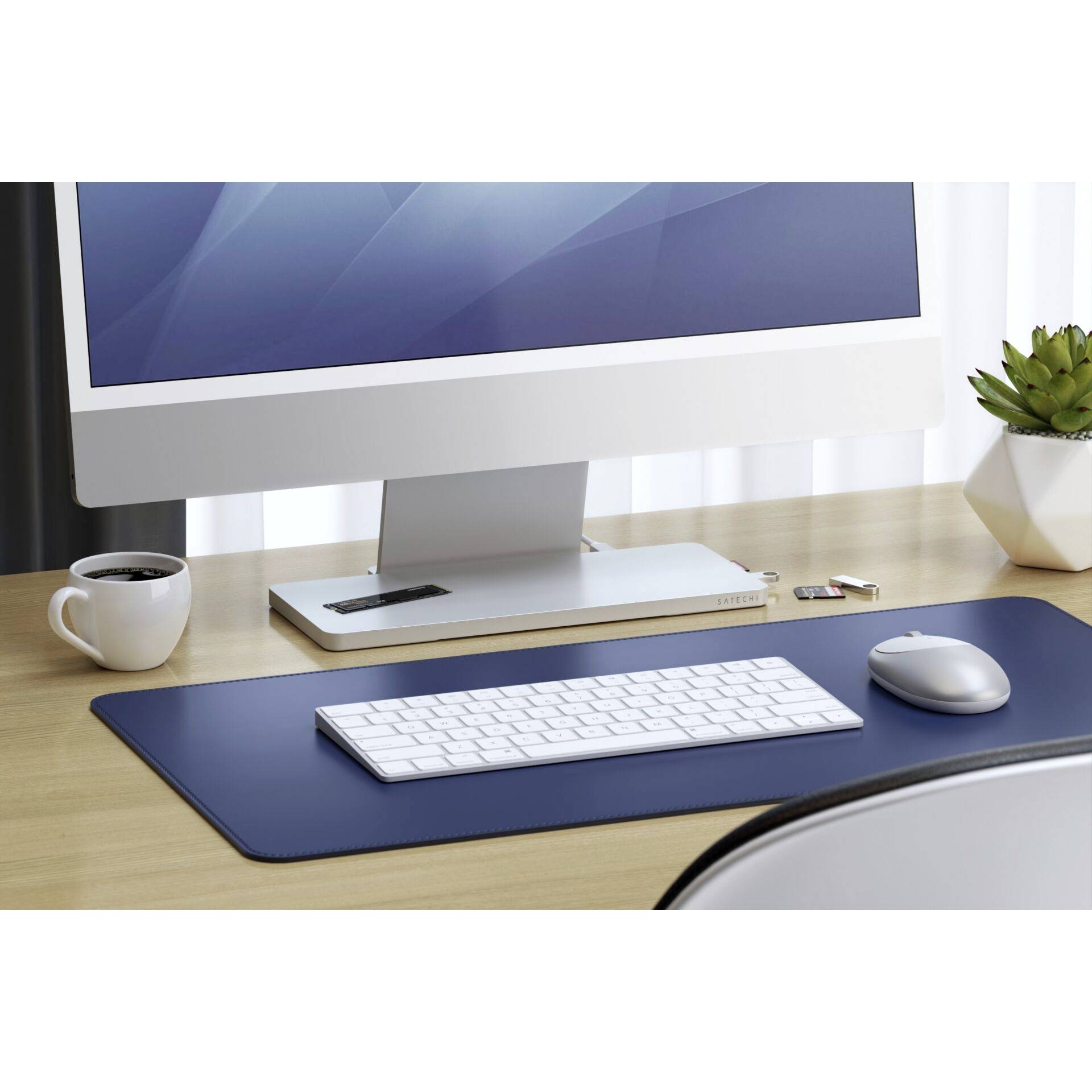

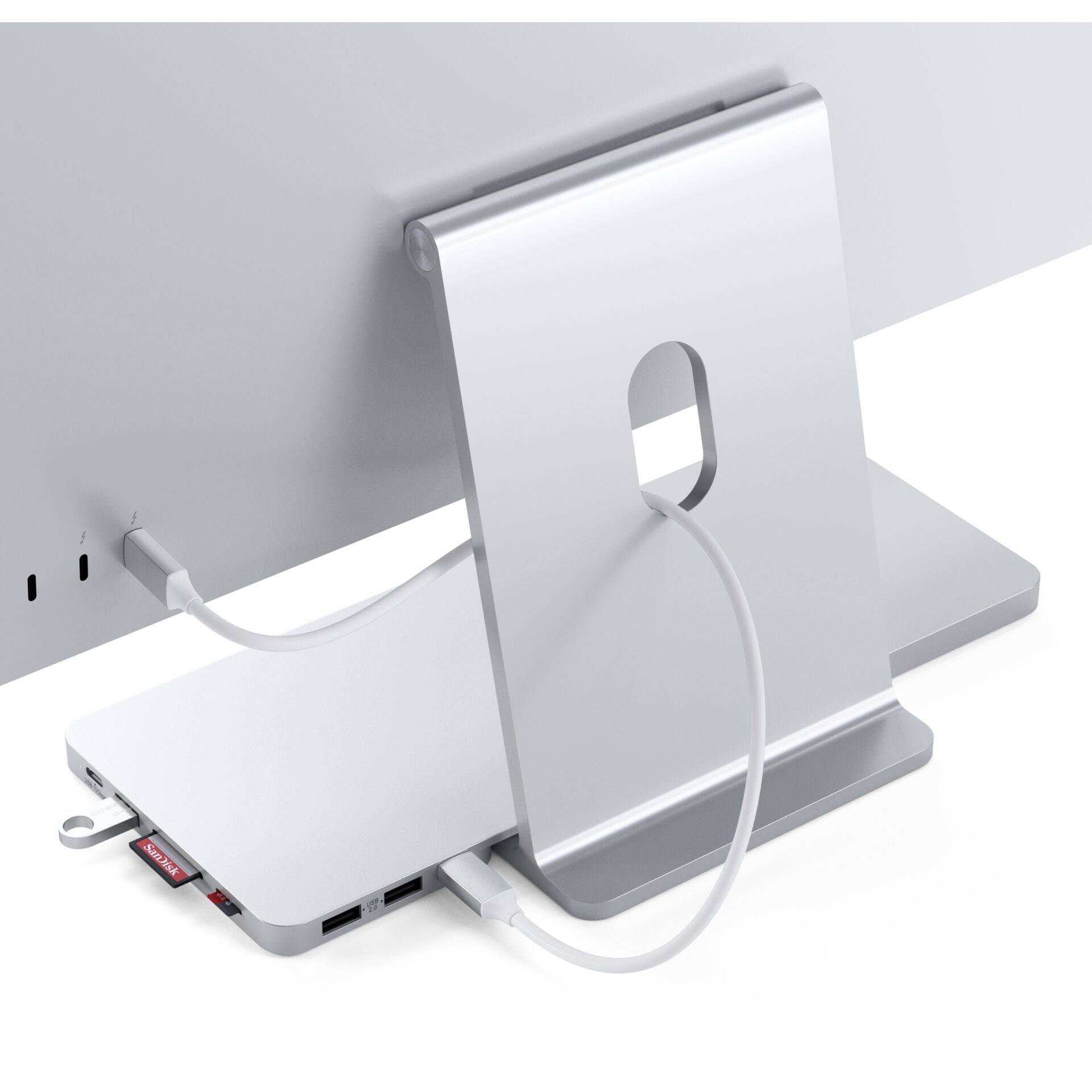

The Satechi USB-C Slim Dock is exclusively designed for the 60.96 cm (24 inch) iMac models of 2021. The convenient docking station provides several ports, as well as the possibility to expand the memory of iMac. The Dock is connected to the iMac via a USB-C cable. This is included in the delivery and fits in color with dock and iMac. Thanks to the slim aluminum design and the matching color, the dock fits visually very well with the Apple computer. The docking station has six different practical connections, which are so easy to reach: A USB-C connection (10 Gbit/s), a USB-A connection (10 Gbit/s), two USB A-2.0 connections (480 Mbit/s), an SD and a MicroSD card slot. In addition, the memory of the iMac can be expanded very easily with the Dock. It has an SSD slot in which an M.2 NMME SSD or an M.2 SATA SSD can be inserted. Data transfer is possible at up to 10 Gbit/s or 6 Gbit/s.
60.96-cm (24-inch) iMac models with various ports and SSD slot.

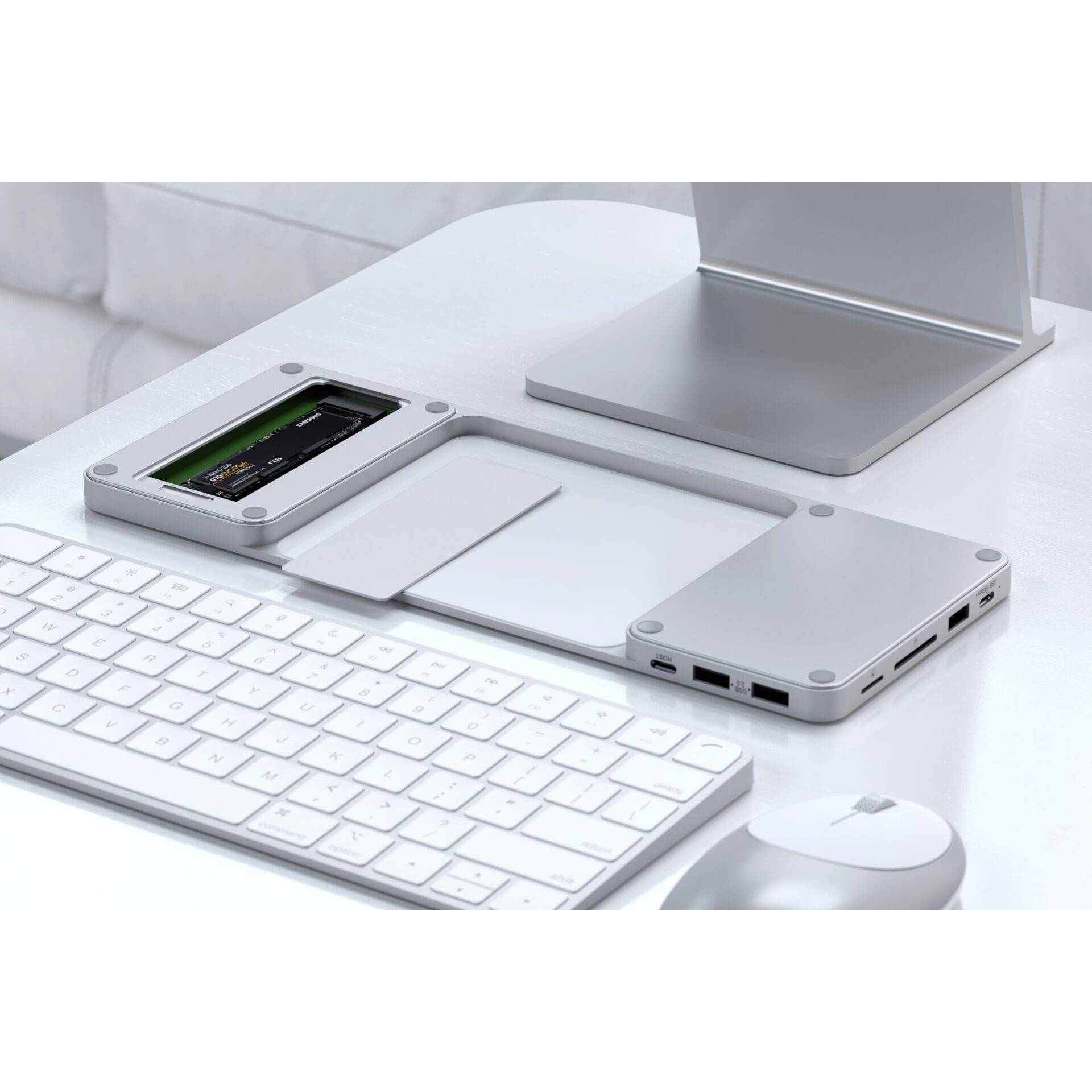

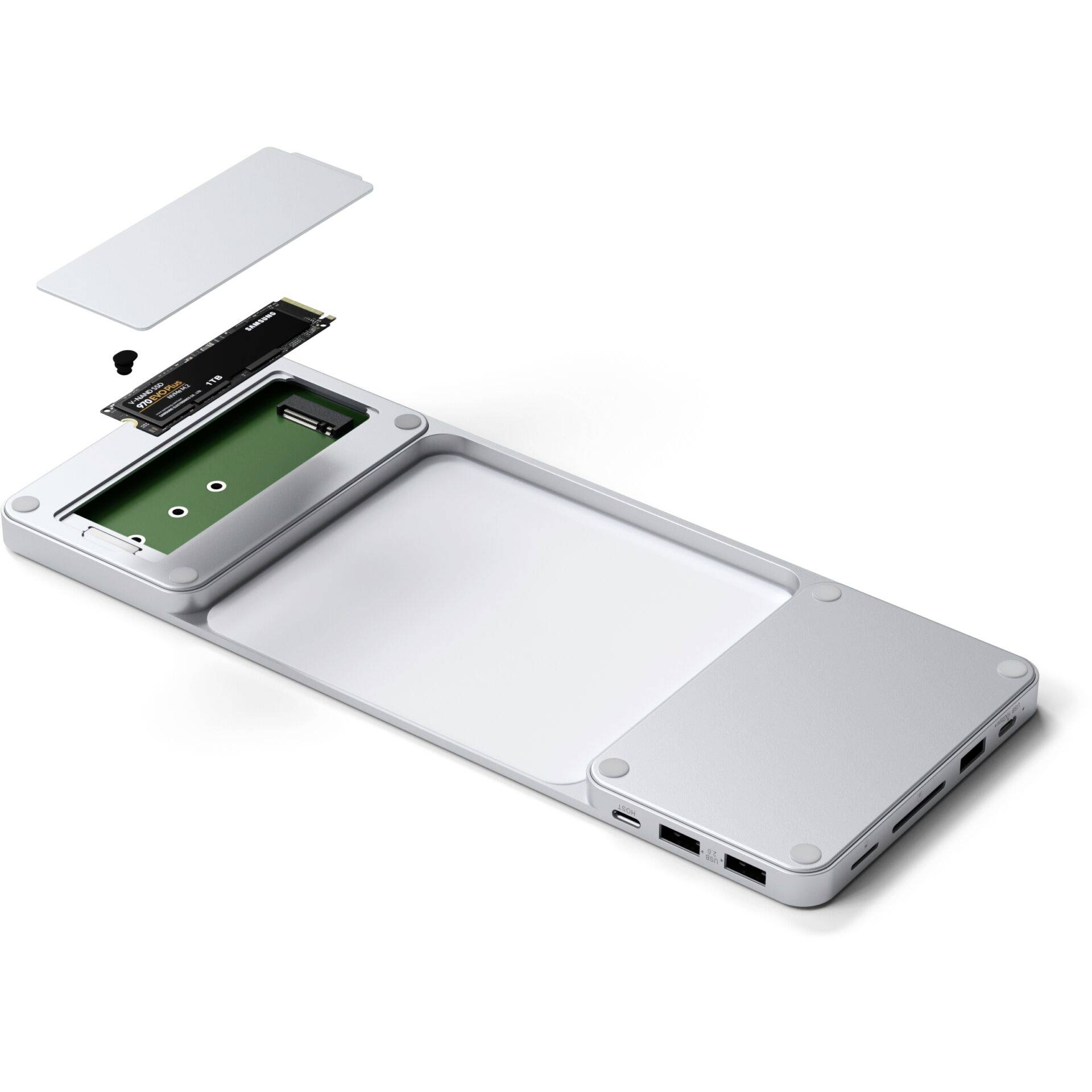

SSD card slot for an M.2 NMVe SSD or an M.2 SATA SSD.

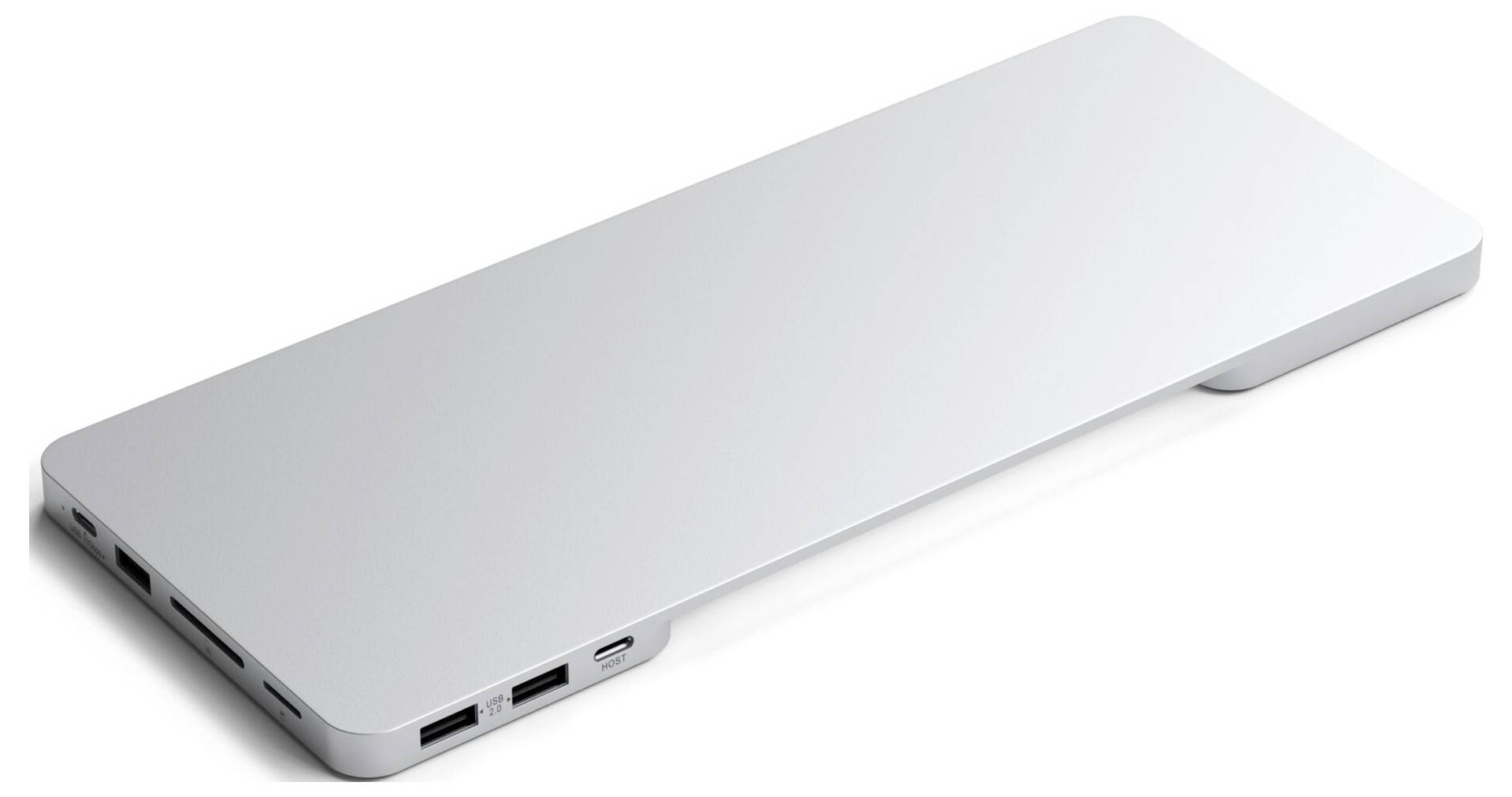

Offers six connections for comfortable working: 1 x USB-C (10 Gbit/s), 1 x USB-A (10 Gbit/s), 2 x USB-A 2.0 (480 Mbit/s), 1 x SD-card slot, 1 x MicroSD-card slot
USB-A ports do not support external CD drives (including Apple SuperDrive).
Both the USB-A and the USB-C ports support data transfer only.
Compatible SSDs: M.2 NMME and M.2 SATA in the sizes 2242/2260/2280
An SSD is not included in the delivery.

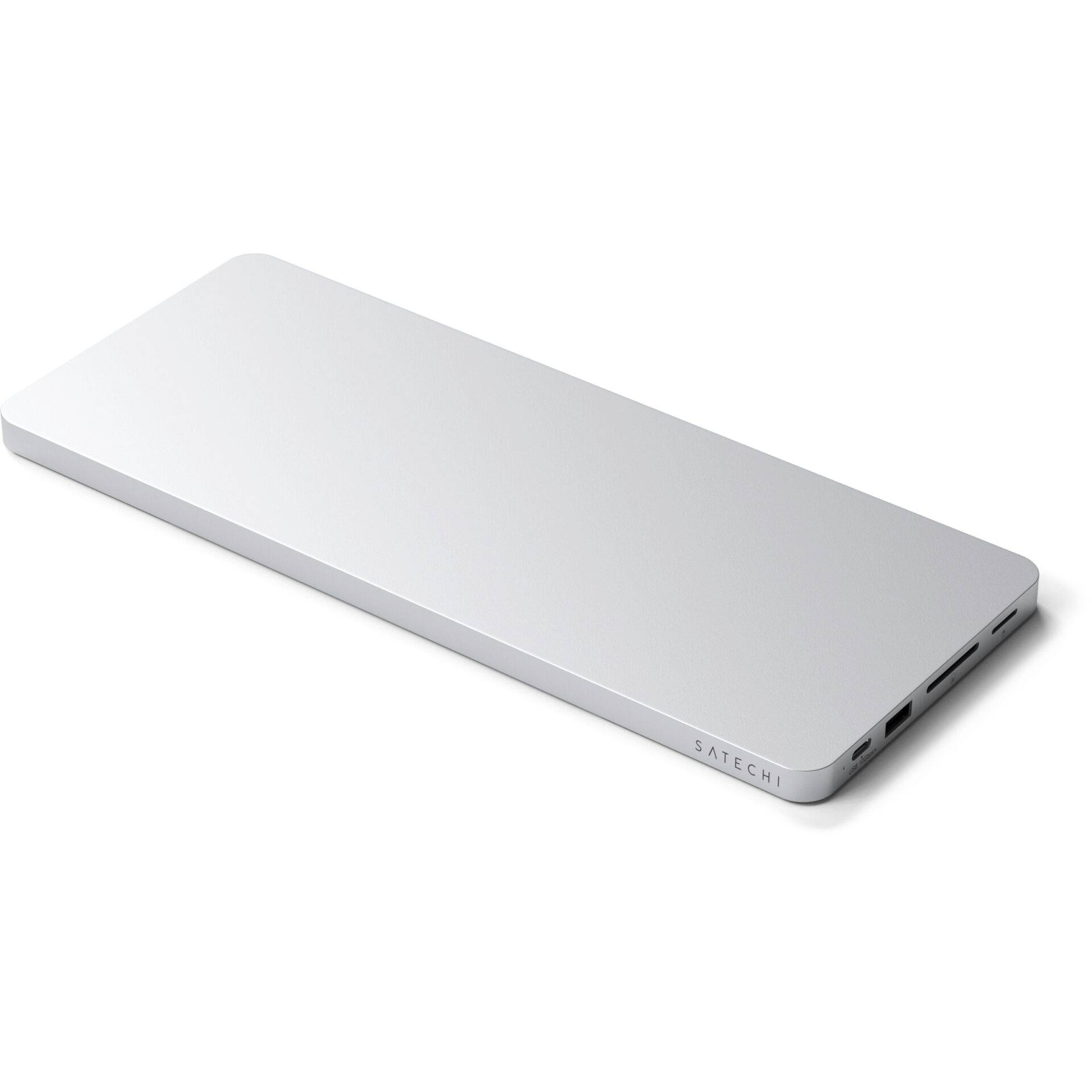

Slim aluminum design complements the design of iMac.

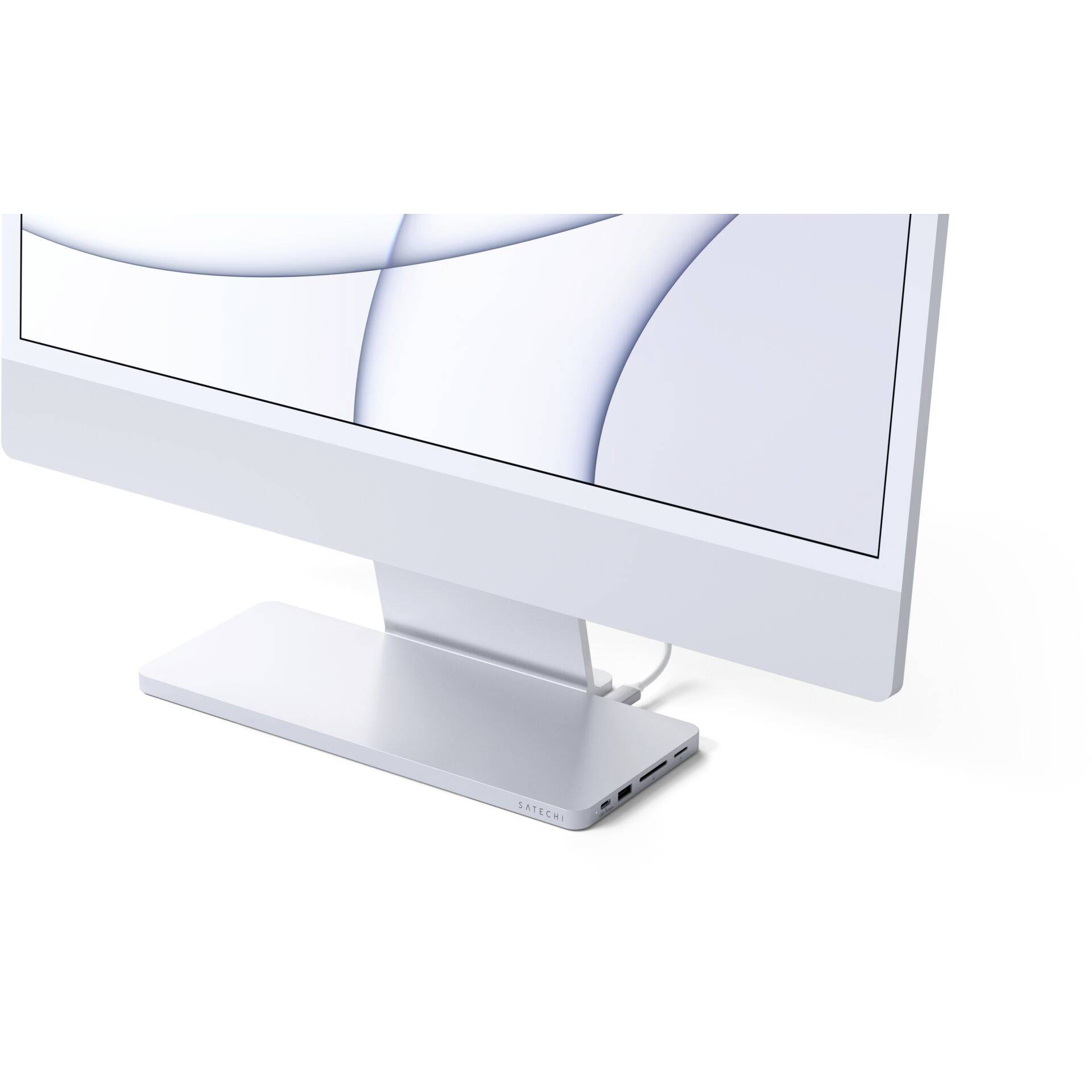

Compatible with 2021 & 2022 M1 iMac 60.96 cm (24") models.
Not compatible with older iMac models.
Includes USB-C connection cable (length: 34 cm)
Dimensions 27.9 x 11.4 x 1 cm
Weight: 300 grams
This text is machine translated.
60.96-cm (24-inch) iMac models with various ports and SSD slot.
SSD card slot for an M.2 NMVe SSD or an M.2 SATA SSD.
Offers six connections for comfortable working: 1 x USB-C (10 Gbit/s), 1 x USB-A (10 Gbit/s), 2 x USB-A 2.0 (480 Mbit/s), 1 x SD-card slot, 1 x MicroSD-card slot
USB-A ports do not support external CD drives (including Apple SuperDrive).
Both the USB-A and the USB-C ports support data transfer only.
Compatible SSDs: M.2 NMME and M.2 SATA in the sizes 2242/2260/2280
An SSD is not included in the delivery.
Slim aluminum design complements the design of iMac.
Compatible with 2021 & 2022 M1 iMac 60.96 cm (24") models.
Not compatible with older iMac models.
Includes USB-C connection cable (length: 34 cm)
Dimensions 27.9 x 11.4 x 1 cm
Weight: 300 grams
This text is machine translated.
