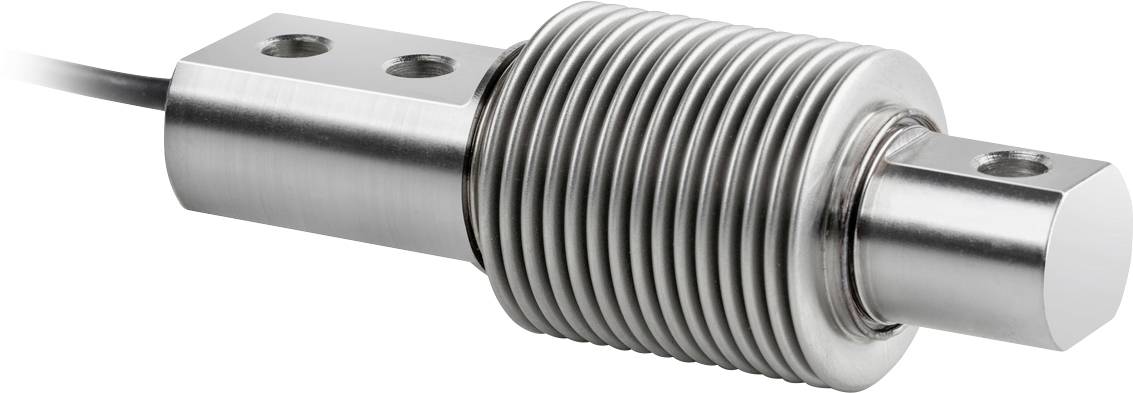

Name: Sauter CB 150-3Q1 CB 150-3Q1 LOAD CELL CB-Q1/CB-Q2
Brand: Sauter
SKU: 2104311

Highlights & Details

LOAD CELL CB-Q1/CB-Q2

Bending balancing cells made of stainless steel

Technical specifications

Product type: Load cell

Calibratable: No

Weighing plate: Stainless steel (non-corrosive)

Height: 415 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104311 Sauter CB 150-3Q1 CB 150-3Q1 LOAD CELL CB-Q1/CB-Q2

User & Safety Instructions

User & Safety Instructions 2104311 Sauter CB 150-3Q1 CB 150-3Q1 LOAD CELL CB-Q1/CB-Q2

Information

Information 2104311 Sauter CB 150-3Q1 CB 150-3Q1 LOAD CELL CB-Q1/CB-Q2

Conformity certificate

Conformity certificate 2104311 Sauter CB 150-3Q1 CB 150-3Q1 LOAD CELL CB-Q1/CB-Q2

Description

Accuracy according to OIML R60 C3
CE and RoHS compliant
Dust and splash-water protection IP68/IP69K (according to EN 60529), hermetically sealed
Stainless steel
Application area: Mass and pressure force measurements under harsh environmental conditions
Suitable for platform scales, funnel scales, weighing scales embedded in the floor and other weighing equipment
4-wire connection
Nominal value 2 mV/V.
Note: Accuracy class OIML R60 C6 or EX version on request|
