Buy Sauter CB 250-3Q1 CB 250-3Q1 LOAD CELL CB-Q1/CB-Q2

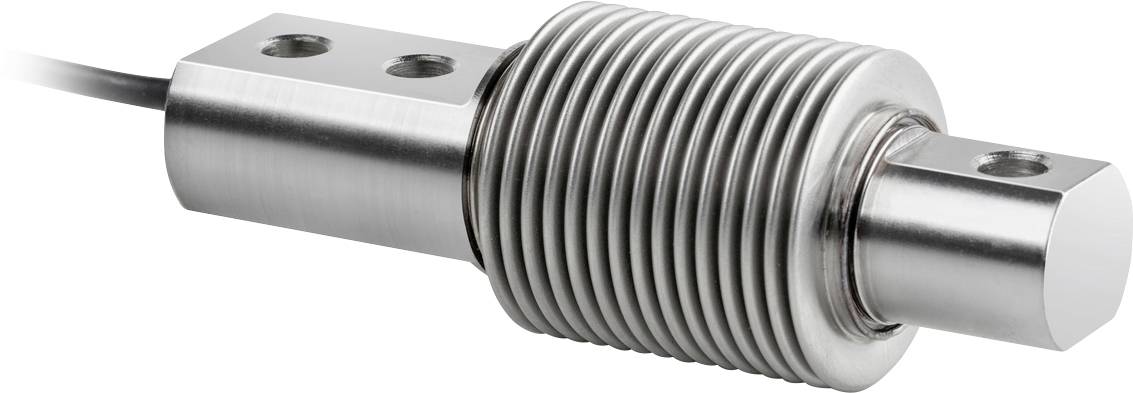

A cylindrical metal weighing cell with a ribbed body and cable, used for measuring weight or force in machines and equipment.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

LOAD CELL CB-Q1/CB-Q2

Bending balancing cells made of stainless steel

Technical specifications

Product type: Load cell

Calibratable: No

Weighing plate: Non-corrosive steel

Height: 415 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104314 Sauter CB 250-3Q1 CB 250-3Q1 LOAD CELL CB-Q1/CB-Q2

User & Safety Instructions

User & Safety Instructions 2104314 Sauter CB 250-3Q1 CB 250-3Q1 LOAD CELL CB-Q1/CB-Q2

Information

Information 2104314 Sauter CB 250-3Q1 CB 250-3Q1 LOAD CELL CB-Q1/CB-Q2

Conformity certificate

Conformity certificate 2104314 Sauter CB 250-3Q1 CB 250-3Q1 LOAD CELL CB-Q1/CB-Q2

Description

Accuracy according to OIML R60 C3
CE and RoHS compliant
Dust and splash-water protection IP68/IP69K (according to EN 60529), hermetically sealed
Stainless steel
Application area: Mass and pressure force measurements under harsh environmental conditions
Suitable for platform scales, funnel scales, weighing scales embedded in the floor and other weighing equipment
4-wire connection
Nominal value 2 mV/V.
Note: Accuracy class OIML R60 C6 or EX version on request|
