Sauter CK 500-0P4 CK 500-0P4 Measuring cell CK-P1-4
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

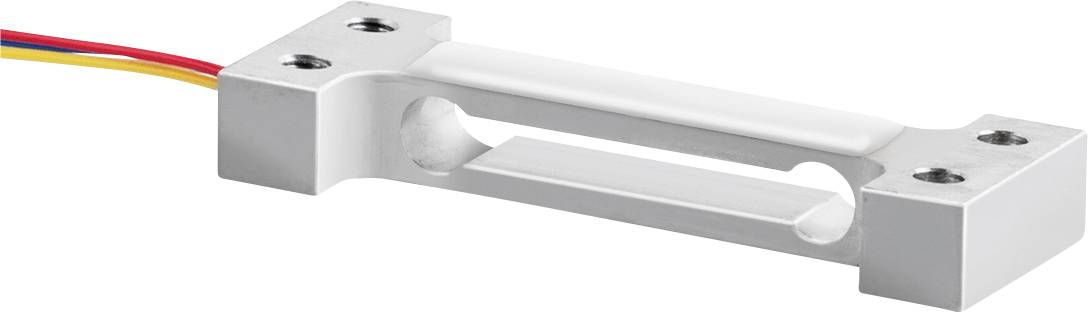

Measuring cell CK-P1-4
- Miniature load cells made of aluminum
Technical specifications
- Product type
Load cell
- Dim
(W x H x D) 47 x 6.6 x 20 mm
- Calibratable
No
- Weighing plate
Aluminium
- Height
6.6 mm
- Depth
20 mm
- Width
47 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2104273 Sauter CK 500-0P4 CK 500-0P4 Measuring cell CK-P1-4
User & Safety Instructions
User & Safety Instructions 2104273 Sauter CK 500-0P4 CK 500-0P4 Measuring cell CK-P1-4
Information
Information 2104273 Sauter CK 500-0P4 CK 500-0P4 Measuring cell CK-P1-4
Conformity certificate
Conformity certificate 2104273 Sauter CK 500-0P4 CK 500-0P4 Measuring cell CK-P1-4
Description
;- Dust and splash-water protection IP65 (according to EN 60529);- Aluminum;- high accuracy;- suitable for small and kitchen scales and force measuring devices;- 4-conductor connection;
This text is machine translated.
This text is machine translated.
Hints
Rated load 500 g
