Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

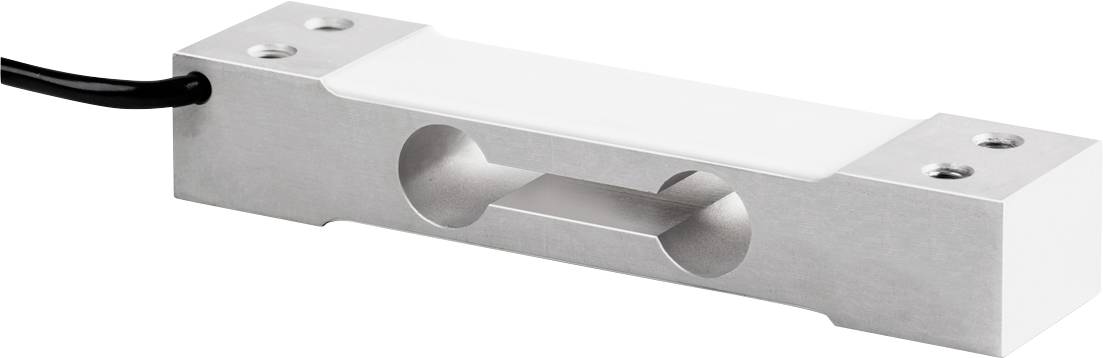

Single-point load cell CP-P1
- Single-point load cells made of anodized aluminum
Technical specifications
- Product type
Load cell
- Dim
(L x W x H) 350 x 130 x 22 mm
- Calibratable
No
- Weighing plate
Aluminium
- Height
22 mm
- Depth
30 mm
- Length
350 mm
- Width
130 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
User & Safety Instructions
User & Safety Instructions 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Information
Information 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Conformity certificate 2104329 Sauter CP 30-3P1 CP 30-3P1 Single-point load cell CP-P1
Description
Accuracy according to OIML R60 C3
CE and RoHS compliant
Dust and splash-water protection IP65 (according to EN 60529)
Anodised aluminum
Suitable for price-calculating scales, table scales, platform scales, etc.
Maximum platform size 250×350 mm
4-wire connection
Nominal value 2 mV/V.
Note: Version according to OIML R60 C4 or C5 on request
This text is machine translated.
CE and RoHS compliant
Dust and splash-water protection IP65 (according to EN 60529)
Anodised aluminum
Suitable for price-calculating scales, table scales, platform scales, etc.
Maximum platform size 250×350 mm
4-wire connection
Nominal value 2 mV/V.
Note: Version according to OIML R60 C4 or C5 on request
This text is machine translated.
Hints
Nominal load 30 kg
